You spent money on good material. You ran the line cleanly. But the finished product still smells. Customers complain. Shipments get held. You lose the contract. Odor in thermoplastic elastomers is a real production problem — and most factories don’t treat it seriously enough until it costs them.
Thermoplastic elastomer odor removal works by identifying the volatile organic compounds (VOCs) trapped inside the material and then driving them out through controlled heat, sealed containment, and continuous material circulation. Done correctly, this process eliminates odor at the source without damaging the material’s mechanical properties.
I have spent my career in plastics processing. I started as a shop floor worker. Over the years I entered management around helping factories solve exactly these kinds of problems — the ones that sit at the boundary between material science and production engineering. Odor in thermoplastic elastomers is one of the most underestimated quality issues in this industry. In this article I will explain what thermoplastic elastomers are, where the smell comes from, what happens if you ignore it, and exactly how to remove it at industrial scale.
What Are Thermoplastic Elastomers and Why Are They So Widely Used?
If you are new to this material family, the name can sound technical. But the concept is simple. And once you understand it, you will see why thermoplastic elastomers are everywhere.
Thermoplastic elastomers (TPEs) are a class of polymer materials that combine the flexibility and softness of rubber with the melt-processability of thermoplastics. Unlike vulcanized rubber, thermoplastic elastomers can be melted, reshaped, and recycled using standard plastic processing equipment such as extruders and injection molding machines.
This combination of properties is what makes thermoplastic elastomers so valuable. Traditional rubber requires vulcanization — a chemical cross-linking process that is irreversible. Once vulcanized rubber is shaped, it cannot be remelted. Thermoplastic elastomers eliminate that limitation. You can process them on the same equipment you use for polypropylene or ABS. You can recycle the scrap. You can change colors and formulations quickly.
That is why thermoplastic elastomers have replaced rubber in thousands of applications across many industries.
Where Are Thermoplastic Elastomers Used?
| Industry | Typical Products | Why TPE Is Chosen |
|---|---|---|
| Automotive | Door seals, steering wheel grips, pedal covers, airbag covers | Soft touch, durability, weather resistance, weight reduction |
| Consumer electronics | Phone cases, cable sheaths, earphone tips, wearable device bands | Flexibility, shock absorption, aesthetics |
| Medical | IV tubing, syringe grips, respirator seals, catheter components | Biocompatibility, FDA compliance, sterilization resistance |
| Toys and baby products | Teethers, soft grip handles, toy wheels, pacifier shields | Safety, softness, compliance with toy safety standards |
| Footwear | Shoe soles, insoles, heel counters | Comfort, abrasion resistance, processability |
| Construction | Window gaskets, pipe seals, expansion joint profiles | Weather resistance, long service life |
| Sporting goods | Bike grips, protective padding, tool handles | Grip, cushioning, ergonomics |
| Packaging | Soft-touch closures, flexible lids, grip inserts | Seal quality, consumer feel |
The global thermoplastic elastomers market is large and growing. According to Grand View Research, the market was valued at over USD 27 billion in recent years and is expected to expand steadily. This growth is driven by automotive lightweighting, medical device demand, and the push to replace traditional rubber with more recyclable alternatives.

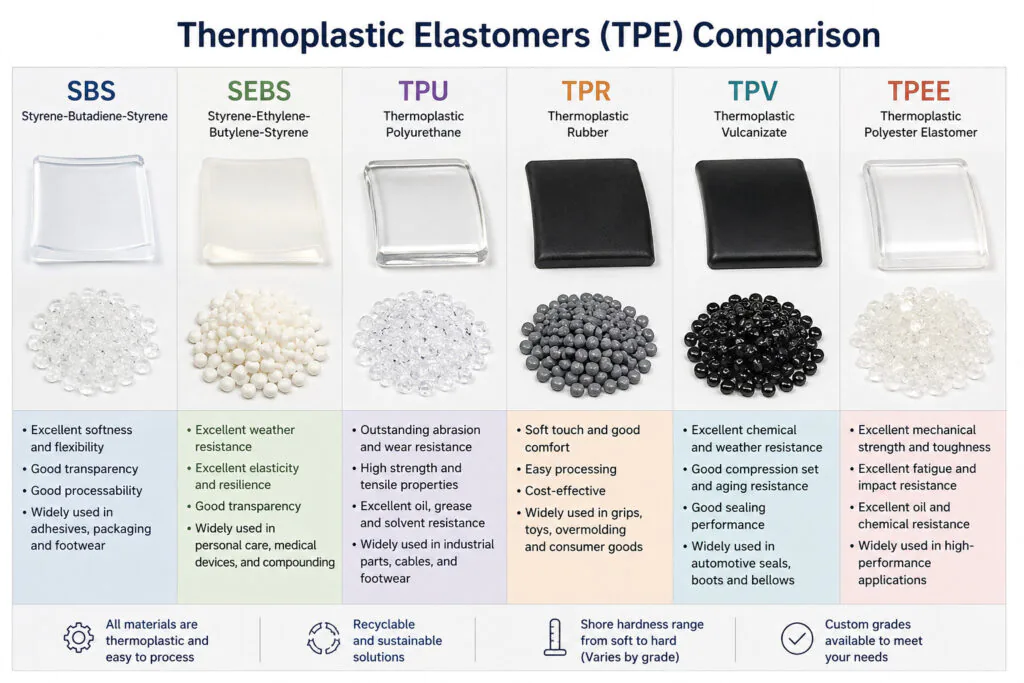

What Are the Main Types of Thermoplastic Elastomers?
Thermoplastic elastomers are not one material. They are a family of materials. Each type has a different base chemistry, different processing characteristics, and different odor risks. Understanding the type you are working with is the first step to solving any odor problem.
There are six major classes of thermoplastic elastomers: SBS, SEBS, TPU, TPR/TPS, TPV, and TPEE. Each has distinct chemical structures, processing requirements, and VOC emission profiles. Matching your deodorization method to the specific TPE type is essential for effective odor control.
SBS — Styrene-Butadiene-Styrene
SBS is one of the oldest and most widely used thermoplastic elastomers. It is a block copolymer with polystyrene hard segments and polybutadiene soft segments. SBS is used in shoe soles, adhesives, asphalt modification, and general consumer goods.
Odor risk: SBS has a high residual styrene content risk. Styrene is a VOC with a sharp, paint-like smell. Residual butadiene can also remain in poorly devolatilized grades. Both compounds are on restricted substance lists in multiple markets.
Processing temperature: 150–190°C. SBS is sensitive to overheating. Thermal degradation above 200°C produces strong odors.
SEBS — Styrene-Ethylene-Butylene-Styrene
SEBS is a hydrogenated version of SBS. The butadiene segments are hydrogenated to ethylene-butylene, which dramatically improves thermal stability, UV resistance, and chemical resistance. SEBS is used in medical devices, premium consumer goods, and high-performance seals.
Odor risk: SEBS itself has lower inherent odor than SBS because the double bonds in the soft segment have been eliminated. However, the processing oils — typically white mineral oil or naphthenic oil — used to soften SEBS compounds are the main odor source. Low-grade oils or oils degraded by repeated heating produce strong petroleum-like smells.
Processing temperature: 180–220°C.
TPU — Thermoplastic Polyurethane
TPU is produced by reacting a diisocyanate with a polyol and a chain extender. It has excellent mechanical properties — high abrasion resistance, good tensile strength, and flexibility across a wide temperature range. TPU is used in shoe soles, cables, films, medical tubing, and sports equipment.
Odor risk: TPU can contain residual diisocyanate monomers, particularly MDI (methylene diphenyl diisocyanate) or TDI (toluene diisocyanate). Both are volatile, toxic, and have strong odors. Thermal degradation of TPU produces CO₂ and amine compounds. If moisture is present during processing, hydrolysis produces additional amine odors.
Processing temperature: 180–230°C. TPU is moisture-sensitive and must be dried before processing.
TPR / TPS — Thermoplastic Rubber / Thermoplastic Styrenic
TPR is a broad commercial term often used for compounds based on SBS or SEBS blended with PP and mineral oil to create cost-effective, general-purpose soft compounds. TPS (thermoplastic styrenic) is a related category. These are the most common thermoplastic elastomers in low-cost consumer goods, footwear, and general industrial applications.
Odor risk: TPR and TPS compounds typically contain high levels of white oil or naphthenic oil — sometimes 30–50% by weight. The oil quality is the single biggest variable in odor. Cheap oil, degraded oil, or oil with a high aromatic content produces very strong odors. This is the most common odor complaint I receive from footwear and toy manufacturers.
Processing temperature: 160–200°C.
TPV — Thermoplastic Vulcanizate
TPV is a special category. It contains dynamically vulcanized rubber particles (usually EPDM) dispersed in a thermoplastic matrix (usually PP). The rubber phase is cross-linked, but the PP matrix allows the material to be melt-processed. TPV offers rubber-like compression set performance with thermoplastic processability.
Odor risk: The EPDM rubber phase can contain processing oils, peroxide cure residues, and sulfur-containing compounds. Peroxide decomposition products — including acetophenone and cumyl alcohol — have strong, sweet-chemical odors. This is a distinctive and often difficult-to-remove odor type.
Processing temperature: 180–220°C.
TPEE — Thermoplastic Polyether Ester Elastomer
TPEE (also called TPC or Hytrel in some commercial brands) is a block copolymer with polyester hard segments and polyether soft segments. It has excellent fatigue resistance, chemical resistance, and maintains elasticity at low temperatures. TPEE is used in automotive boots, industrial hoses, and connector seals.
Odor risk: TPEE can produce ester-type odors from residual oligomers or degradation products. At elevated temperatures, cyclic ester compounds can volatilize and produce a sweet, slightly chemical smell.
Processing temperature: 200–240°C.
TPE Type Summary and Odor Profile
| TPE Type | Full Name | Main Odor Sources | Typical Odor Character | Odor Removal Difficulty |
|---|---|---|---|---|
| SBS | Styrene-Butadiene-Styrene | Residual styrene, butadiene | Sharp, paint-like, chemical | Medium |
| SEBS | Styrene-Ethylene-Butylene-Styrene | Processing oils | Oily, petroleum, waxy | Medium |
| TPU | Thermoplastic Polyurethane | Diisocyanate residues, amines | Chemical, acrid, urine-like | High |
| TPR/TPS | Thermoplastic Rubber/Styrenic | Mineral oil, aromatic hydrocarbons | Oily, heavy, petroleum | Medium–High |
| TPV | Thermoplastic Vulcanizate | Peroxide residues, EPDM oils | Sweet-chemical, rubber | High |
| TPEE | Thermoplastic Polyether Ester | Cyclic esters, oligomers | Sweet, slightly chemical | Medium |
What Are the Sources of Odor in Thermoplastic Elastomers?
Knowing the TPE type gives you a starting point. But even within one material type, odor sources can vary. In my experience, the smell in a finished thermoplastic elastomer product can come from several different points in the production chain.
Thermoplastic elastomer odors originate from volatile organic compounds (VOCs) that form or become trapped during raw material production, compounding, processing, or storage. The most common sources are residual monomers, processing oils, thermal degradation products, additive decomposition, and contamination from recycled feedstock.
Source 1: Residual Monomers and Solvents
During polymerization of the base resin, not all monomers react completely. Small amounts of residual styrene in SBS/SEBS, residual diisocyanate in TPU, or residual butadiene in SBS remain trapped in the polymer matrix. These compounds are small molecules. They migrate slowly at room temperature but release rapidly under heat.
This problem is often upstream. A supplier who skips or shortens the devolatilization step during resin production will ship material that looks and tests correctly on standard mechanical properties — but smells. By the time you discover the problem, you have already processed a full batch.
Source 2: Processing Oils and Plasticizers
This is the most common odor source in TPR and SEBS compounds. White mineral oil and naphthenic oil are added in large quantities — sometimes more than one-third of the compound by weight — to achieve the desired softness and flow. When these oils are low purity, high in aromatic content, or have been thermally degraded through repeated heating cycles, they produce strong petroleum odors.
The smell is often described as oily, heavy, or gasoline-like. It is persistent. It does not fade quickly at room temperature.
Source 3: Thermal Degradation During Processing
Every time you heat a thermoplastic elastomer, some degree of polymer chain degradation occurs. This is normal at low levels. But if the processing temperature is too high, if the screw design causes excessive shear, or if material sits in the barrel too long, degradation accelerates. The products of this degradation — aldehydes, ketones, carboxylic acids, and low-molecular-weight fragments — have strong odors even at very low concentrations.
For compounding and pelletizing lines, getting the screw design and temperature profile right is essential not just for product quality but also for odor control.
Source 4: Antioxidant and Stabilizer Decomposition
All thermoplastic elastomers contain antioxidants and heat stabilizers to protect the polymer during processing and in-service use. Phenolic antioxidants, phosphite stabilizers, and hindered amine light stabilizers (HALS) are common. When these additives degrade — particularly under excessive heat or in the presence of moisture — they release phenolic compounds, phosphoric acid derivatives, or amine fragments. These have medicinal, acidic, or fishy odors.
This source is particularly relevant for recycled thermoplastic elastomers that have been processed multiple times, each cycle consuming more of the stabilizer package.
Source 5: Contamination in Recycled Feedstock
This is the source that causes the most severe and difficult-to-remove odors. Recycled thermoplastic elastomers — particularly post-consumer recycled material — can carry contamination from many sources: food residues, adhesive labels, printing inks, cleaning chemicals, biological growth from improper storage, or blending with incompatible materials.
These contaminants produce complex, mixed VOC profiles. A single recycled batch might contain hydrocarbons from oil contamination, biological VOCs from mold, and solvent residues from adhesive labels — all at the same time. Standard drying alone will not touch these odors.
I have worked with factories in the Middle East and Southeast Asia that process large volumes of post-consumer recycled PP, PE, and thermoplastic elastomers. The odor challenge is real and consistent. The only reliable solution is a proper thermal VOC treatment system.
Summary of Odor Sources
| Odor Source | Chemical Compounds Released | Typical Smell | When It Occurs |
|---|---|---|---|
| Residual monomers | Styrene, butadiene, diisocyanates | Sharp, paint-like, chemical | Upstream resin production issue |
| Processing oils | Hydrocarbons, aromatics, naphthenes | Oily, petroleum, heavy | Compounding, pelletizing |
| Thermal degradation | Aldehydes, ketones, organic acids | Burnt, sweet-acrid, sour | Extrusion, molding |
| Additive decomposition | Phenols, amines, phosphites | Medicinal, fishy, acidic | Repeated processing, overheating |
| Recycled contamination | Mixed VOCs, biological compounds | Sour, musty, garbage-like | Post-consumer recycled feedstock |
What Happens If You Don’t Remove Odors from Thermoplastic Elastomers?
Some production managers treat odor as a secondary concern. They focus on tensile strength, Shore hardness, and color — and assume the smell will fade after the product sits for a while. Sometimes it does fade slightly. But it rarely disappears completely. And in regulated markets, it does not need to be noticeable to cause a rejection.
Failing to remove odors from thermoplastic elastomers leads to product rejections, market access loss, worker health risks, regulatory compliance failures, and downstream processing defects. In automotive, medical, toy, and food-adjacent applications, odor testing is mandatory and failure is a disqualifying event.
Consequence 1: Rejection from High-Value Markets
The automotive industry uses formal odor testing as a standard quality gate. The VDA 270 test grades interior component odors on a scale of 1 to 6. A score above 3.5 is a rejection at most OEMs. Volkswagen Group uses PV 3900. General Motors uses GMW3205. These tests are not negotiable.
If your thermoplastic elastomer parts fail these tests, you are out. Not delayed. Out. And getting back into the approved supplier list requires re-testing, re-qualification, and months of waiting.
Consequence 2: Customer Complaints and Contract Loss
Even in markets without formal odor standards, the problem shows up in customer experience. A phone grip that smells like petroleum. A yoga mat that has a strong chemical smell. A child’s toy that parents complain about online. These complaints travel fast. They lead to returns, chargebacks, negative reviews, and lost repeat orders.
I know a factory owner who lost a major footwear brand contract — worth several million dollars per year — because of odor complaints from the brand’s European retail partner. The material met every mechanical specification. But a simple odor assessment failed. That contract never came back.
Consequence 3: Regulatory and Legal Risk
Many VOCs found in thermoplastic elastomers are regulated substances. Styrene is on the REACH SVHC candidate list. Diisocyanates in TPU are subject to the EU’s occupational exposure regulations. The EU’s REACH regulation controls the presence and emission of these substances in products placed on the European market. In the US, the EPA regulates VOC emissions in manufacturing environments. In the GCC region and Saudi Arabia, occupational health and environmental standards are tightening steadily.
Running a line that produces high VOC emissions without treatment is not just a quality issue. It is a liability.
Consequence 4: Worker Health Impacts
The workers closest to the problem are the ones operating the lines. Elevated concentrations of styrene, diisocyanates, aldehydes, and other VOCs in factory air are documented health hazards. Long-term exposure is linked to respiratory irritation, neurological effects, and in some cases more serious conditions.
As a factory owner, I take this seriously. Protecting workers is not separate from running a good business. It is part of it.
Consequence 5: Downstream Processing Defects
VOCs that remain trapped in thermoplastic elastomer pellets do not stay there permanently. When the pellets are reheated during injection molding or secondary extrusion, the VOCs release again. This causes:
- Silver streaking or surface bubbling on molded parts
- Discoloration and yellowing
- Mold fouling and increased cleaning frequency
- Poor bonding in overmolded or multi-layer products
- Gas burns and surface pitting
These defects mean higher scrap rates, slower cycle times, and more labor for inspection and rework.
What Are the Most Effective Methods to Remove Odors from Thermoplastic Elastomers?
There are several approaches used in the industry. Each has a place. But not all of them work at industrial scale for serious VOC contamination. Let me go through each one honestly.
Thermoplastic elastomer odors can be removed through vacuum devolatilization during extrusion, hot air drying, water washing, odor-absorbing additives, or controlled thermal treatment in a sealed circulating silo system. For deep VOC removal at industrial scale — especially for recycled thermoplastic elastomers — the sealed thermal circulation method is the most effective and reliable.
Method 1: Vacuum Devolatilization at the Extruder
Twin-screw extruders used in thermoplastic elastomer compounding typically have one or more vacuum venting zones. These are designed to remove volatiles from the melt as the material is processed. This approach removes VOCs that are mobile enough to diffuse through the polymer melt under vacuum.
It works reasonably well for lightly contaminated virgin-grade material. It does not fully address deeply embedded contaminants, high-boiling VOCs, or the complex contamination profiles of recycled feedstock. For factories running a pelletizing line, this is a necessary process step but not a complete solution on its own.
Method 2: Hot Air Drying in Standard Silos
Standard hot air dryers and drying silos remove surface moisture and low-boiling volatiles from pellets. This is a routine step before molding or extrusion. But ordinary drying equipment is not designed for VOC deodorization. The air is not sealed. The material does not circulate uniformly. The temperatures are set for moisture removal, not for driving out higher-boiling VOCs.
The result is partial improvement — sometimes noticeable, sometimes not — but it will not consistently pass formal odor testing.
Method 3: Water Washing
Water washing is used for some post-consumer recycled plastics to remove surface contamination — food residues, soil, biological material. For biologically-sourced odors on the material surface, it helps. But water washing has no effect on VOCs embedded inside the pellet. It also adds an energy-intensive drying step to the process.
Method 4: Odor-Absorbing Masterbatches and Additives
Zeolite-based masterbatches and activated carbon additives are available to absorb or encapsulate VOCs within the compound. These can reduce odor levels to some degree. But they add cost per kilogram, they can affect color and other properties, and they do not remove the VOCs — they hold them. Under elevated temperatures during downstream use, those captured compounds can release again. For applications with formal odor testing requirements, this approach alone is not reliable.
Method 5: Sealed Thermal Circulation System — The Industrial Standard
This is the method I recommend for any factory serious about thermoplastic elastomer odor control. The principle is: heat the pellets to a precise temperature inside a sealed silo, circulate the material continuously so that every pellet is evenly treated, and collect the released VOCs for safe exhaust treatment.
At Nicety Machinery, we have built this into our VOC Deodorizing, Drying, and Homogenizing System. The system operates continuously, online, and in-line with your production flow. It does not interrupt your output. It does not require batch processing cycles that stop the line.
Method Comparison
| Method | VOC Removal Depth | Works on Recycled TPE | Continuous Operation | Meets Automotive / Medical Standards |
|---|---|---|---|---|
| Vacuum venting (extruder) | Medium | Partial | Yes | Partially |
| Hot air drying | Low | No | Yes | No |
| Water washing | Low (surface only) | Yes (surface) | No | No |
| Odor-absorbing masterbatch | Low–Medium | Yes | Yes | Unreliable |
| Sealed thermal circulation | High | Yes | Yes | Yes |
How Does Nicety’s VOC Deodorizing System Work for Thermoplastic Elastomers?
Let me walk you through exactly what this system does and how it fits into a real production environment.
The Nicety VOC Deodorizing, Drying, and Homogenizing System passes thermoplastic elastomer pellets through a series of sealed, heated silos in sequence. Each silo heats the material to a controlled temperature and continuously circulates it. Released VOCs are collected and treated. By the time the material exits the final silo, it is deodorized, dried, and thermally homogenized — ready for packing or downstream use.
Step-by-Step Process
Step 1 — Screening. Pellets pass through a vibrating screener to remove dust, fines, and oversized particles. This step matters because surface dust carries additional VOCs and causes uneven treatment if left in.
Step 2 — Vacuum loading into Silo A. A vacuum conveying unit moves the screened pellets into the buffer silo (Silo A, approximately 6 ton capacity) under sealed conditions. There is no open transfer. No dust. No odor leakage.
Step 3 — Sequential transfer through deodorizing silos. When Silo A reaches its preset level, a level switch triggers transfer to No. 1 Silo. Heating and deodorization begin. As No. 1 Silo fills, Silo A starts filling No. 2 Silo. This continues through No. 3, No. 4, and No. 5 Silos.
Step 4 — Deodorization and homogenization. Inside each silo, the heater raises the material to the target temperature — controlled to within ±2°C using SCR power regulation. The material circulates continuously through a non-destructive internal circulation mechanism. Every pellet is exposed evenly to the heat. VOCs migrate from the pellet interior to the gas phase and are collected.
Step 5 — Discharge and packing. By the time No. 5 Silo is receiving new material, the treatment cycle in No. 1 Silo is complete. That material moves to final drying and is discharged. The cycle then repeats with No. 1 Silo receiving fresh material.
The system runs 24 hours a day without stopping the production line. This is what makes it suitable for high-volume thermoplastic elastomer compounding operations.
Key System Components
| Component | Function | Key Feature |
|---|---|---|
| Vibrating screener | Remove dust and fines | Prevents uneven treatment |
| Vacuum conveying unit | Sealed transfer between silos | No dust, no odor leakage |
| Silo A (buffer) | Initial storage and loading | ~6 ton capacity, level switch control |
| Deodorizing silos No. 1–5 | Sequential heating and VOC removal | ±2°C temperature accuracy |
| Heater unit | Controlled thermal energy input | SCR power regulation |
| Internal circulation mechanism | Non-destructive material turnover | No pellet damage or agglomeration |
| Exhaust treatment | Capture and treat VOC gas before discharge | EPA and EU compliant |
One point I want to emphasize: the non-destructive design of the internal circulation is critical for thermoplastic elastomers specifically. These materials are soft. Aggressive mechanical handling — paddles, impellers, or screw conveyors inside a heated silo — can damage the pellet surface, cause agglomeration, or create fines. Nicety’s system is designed to avoid this. The pellets come out with the same surface quality they went in with.
If your factory also runs a central feeding system, the deodorized pellets can be fed directly into the system without additional handling steps. This integrates cleanly into a fully automated production flow.
Frequently Asked Questions About Thermoplastic Elastomer Odor Removal
I have answered these questions many times in person with factory owners and production managers. Here are the most important ones, answered directly.
These FAQs cover temperature settings, treatment duration, material integrity, recycled feedstock handling, exhaust gas treatment, odor test standards, and system integration — the practical details that matter when implementing thermoplastic elastomer deodorization in a real factory.
%(image of factory manager reviewing production data or Q&A setting)thermoplastic elastomers deodorization FAQ factory production
Q1: What is the correct temperature for deodorizing thermoplastic elastomers?
The right temperature depends on the TPE type and the specific VOC profile. Too low and you do not release enough VOCs. Too high and you risk softening, agglomeration, or property changes.
| TPE Type | Recommended Deodorization Temperature | Risk if Too High |
|---|---|---|
| SBS | 80–100°C | Agglomeration, sticking between pellets |
| SEBS | 90–110°C | Minor color shift, oil migration |
| TPU | 90–110°C | Hydrolysis if moisture present, yellowing |
| TPR / TPS | 80–100°C | Oil bleeding, surface changes |
| TPV | 100–120°C | Pellet distortion |
| TPEE | 100–120°C | Agglomeration, oligomer migration |
In the Nicety VOC Deodorizing System, we set the temperature profile based on the specific material. The ±2°C control accuracy allows you to operate close to the upper limit of the safe range consistently and safely.
Q2: How long does the deodorization process take?
For most thermoplastic elastomers with standard VOC loads, 4 to 8 hours of treatment time is typical. Heavily contaminated recycled material may need 8 to 16 hours. The continuous multi-silo design of our system means the treatment time is built into the flow rate — you do not stop production to wait for a batch cycle.
Q3: Does thermal deodorization damage the mechanical properties of thermoplastic elastomers?
When done correctly, no. Controlled heat below the material’s softening point does not break polymer chains or change the molecular structure. The key factors are: accurate temperature control, adequate treatment time, and non-destructive material handling inside the silo.
What does cause property damage is overheating, excessive mechanical shear, or prolonged exposure at high temperature. This is why system design and temperature control matter as much as the temperature number itself.
Q4: Can I deodorize recycled thermoplastic elastomers the same way as virgin material?
Yes, but with additional care. Recycled thermoplastic elastomers carry a higher and more complex VOC load. They may also have reduced thermal stability due to previous processing cycles that have consumed part of the stabilizer package. Start with a conservative temperature setting. Run a small trial batch. Test the odor output against your target standard before committing to full production scale.
Our VOC system has successfully handled recycled TPE, r-HDPE, recycled PP, and other recycled plastics with complex contamination profiles.
Q5: Does the VOC deodorizing system work on other plastic materials besides thermoplastic elastomers?
Yes. The same thermal circulation principle applies to many plastic materials where VOC removal is required:
| Material | Main VOC Removed |
|---|---|
| PS | Residual styrene |
| PET | Acetaldehyde, cyclic oligomers |
| PA (Nylon) | Amines, caprolactam |
| PE / PP | Residual hydrocarbons |
| ABS | Butadiene, acrylonitrile residues |
| Recycled mixed plastics | Complex mixed VOC contamination |
Q6: Do I need to treat the exhaust gas from the deodorization process?
Yes, and this is a point many factory owners overlook until they have a compliance problem. The deodorization process removes VOCs from the pellets — but those VOCs enter the exhaust gas stream. If you vent this gas directly into the factory air or atmosphere, you create a worker exposure risk and a regulatory compliance failure.
Nicety’s system includes integrated exhaust gas treatment designed to meet EPA and EU emission standards. The VOC-laden gas is collected, treated, and safely discharged. This is not optional in regulated markets.
Q7: What odor test standards do I need to meet?
This depends on your target industry and geography:
| Standard | Industry / Region | What It Tests |
|---|---|---|
| VDA 270 | Automotive — Germany/EU | Odor intensity, scale 1–6; ≤3.5 typically required |
| PV 3900 | Volkswagen Group | Condensate and emission from interior materials |
| GMW3205 | General Motors | Odor and emission for interior components |
| ISO 8124 | Toys — global | Chemical safety including VOC migration |
| FDA 21 CFR | Food contact / Medical — US | Permitted materials and substance migration limits |
| REACH | All industries — EU | Restriction of hazardous substances including VOCs |
| GB/T 27630 | Automotive interior — China | Passenger car interior air quality guideline |
Q8: Can I integrate the deodorizing system into my existing production line?
Yes. The VOC deodorizing system is a downstream addition. It sits after the pelletizer and centrifugal dryer in the production sequence. There is no need to modify your extruder or upstream equipment. If you run a central feeding system downstream, the deodorized material feeds directly in without additional handling.
Q9: How do I know if my thermoplastic elastomers have a VOC problem before formal testing?
Practical field indicators include:
- A noticeable smell on the pellet surface immediately after cutting
- A smell that intensifies when a small sample is heated in a sealed container
- Worker complaints about air quality near the pelletizer or silo discharge
- Surface defects — silver streaks, bubbles, pitting — in injection-molded parts
- Previous batches that failed odor testing in customer audits
If you see any of these, do not wait for a formal test failure. Contact us at nicetymachine.com and we can discuss your specific situation.
Q10: What is the payback period for installing a VOC deodorizing system?
This varies by factory size, production volume, and target market. For factories supplying automotive or medical customers — where a single failed batch can cost tens of thousands of dollars in rework, re-testing, and relationship damage — the payback period is typically very short. For factories supplying general consumer goods, the benefit shows in customer retention and the ability to open higher-margin market channels that require odor compliance.
I have seen factories recover the system cost within one year through a combination of avoided rejections, reduced scrap, and access to new contracts that previously required odor compliance they could not achieve.
Conclusion
Thermoplastic elastomer odor problems are solvable. Understand your material type, trace the VOC source, apply the right treatment method, and control the process tightly. The result is material that meets the standards of your best customers.
About Nicety Machinery Co., Ltd
Nicety Machinery Co., Ltd is a China-based manufacturer of auxiliary equipment for plastic modification, compounding, and engineering plastics processing. Nicety is built on the belief that knowledge sharing and quality engineering go together.
Our product range includes VOC deodorizing and drying systems, extrusion pelletizing lines, central feeding systems, industrial mixers, vibrating screeners, plastic shredders, and more.
With ISO 9001:2015 and CE certification, over 500 VOC systems installed globally, and 24/7 technical support, we back every machine with the expertise and service that serious plastic processors need. Visit us at www.nicetymachine.com or reach out directly to discuss your thermoplastic elastomer deodorization requirements.
External References
- Thermoplastic Elastomer — Wikipedia
- Thermoplastic Polyurethane (TPU) — Wikipedia
- Thermoplastic Elastomers Market — Grand View Research
- VDA 270 Odor Test Standard — Verband der Automobilindustrie (VDA)
- REACH Regulation — European Chemicals Agency (ECHA)
- REACH SVHC Candidate List — ECHA
- ISO 8124 — Toy Safety Standard — ISO
- GMW3205 — General Motors Worldwide Engineering Standards
- PV 3900 — Volkswagen Group Emission Test Standard
- FDA 21 CFR — U.S. Food and Drug Administration Code of Federal Regulations
- GB/T 27630 — Chinese National Standard for Passenger Car Interior Air Quality
