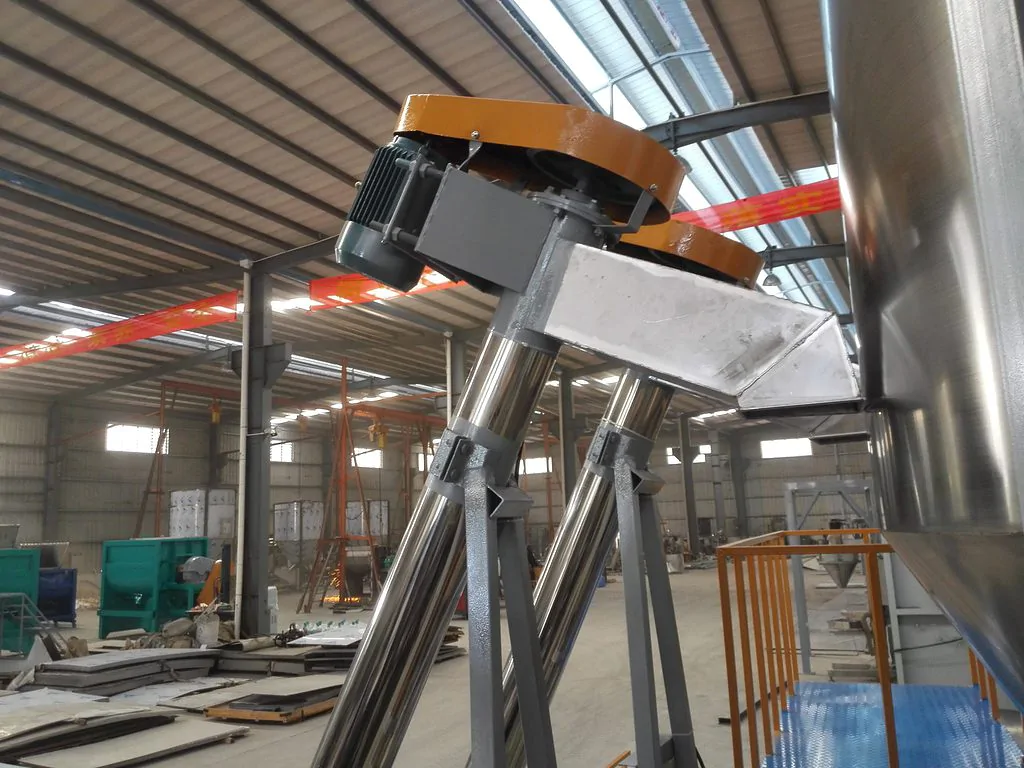

Screw Conveyor
Often referred to as Screw Feeder
A screw conveyor is a type of conveyor with a spiral structured tube that allows materials to be transported over short distances by “spiraling up/transferring” inside the tube. Screw conveyors in modern industry are usually used at a slight incline. They are used in many bulk handling industries.
Different styles of Screw conveyor
A screw conveyor is a mechanism that uses rotating screws to move groups of material. The screws in the device go around at some predetermined speed, so they can be used as an inexpensive way to transport semi-solid materials over relatively short distances, such as plastic granules, feed or wood chips etc.

0.5-10Ton/h spiral screw conveyor

1-15Ton/h Automated Auger Conveyor

0.3-5Ton/H 3 meters height screw feeder
REQUEST A QUOTE FOR MORE DETAILS
All You Need to Know About screw conveyor


The screw conveyor is a type of conveyor that uses a spiral shaped tube to move materials. The screws in the device go around at some predetermined speed, so they can be used as an efficient way to transport semi-solid materials over relatively short distances.
Spiral conveyor has many advantages, automation, can be highly efficient to transfer materials from low to high, instead of manual, for the whole production line automation to provide convenience.
What Are screw conveyor Used For?
NICETY are custom-made to fit your specific application: Whether it is the diameter of the pipe or the transmission efficiency (Ton/Hour). Plus, they’re perfect for use in a variety of industries:
- Pipe profiles
- Plastic building materials
- Plastic granulation
- Color masterbatch making
- Plastic modification
- Recycling of recycled materials
- Injection molding
- Food, Rice, Beans

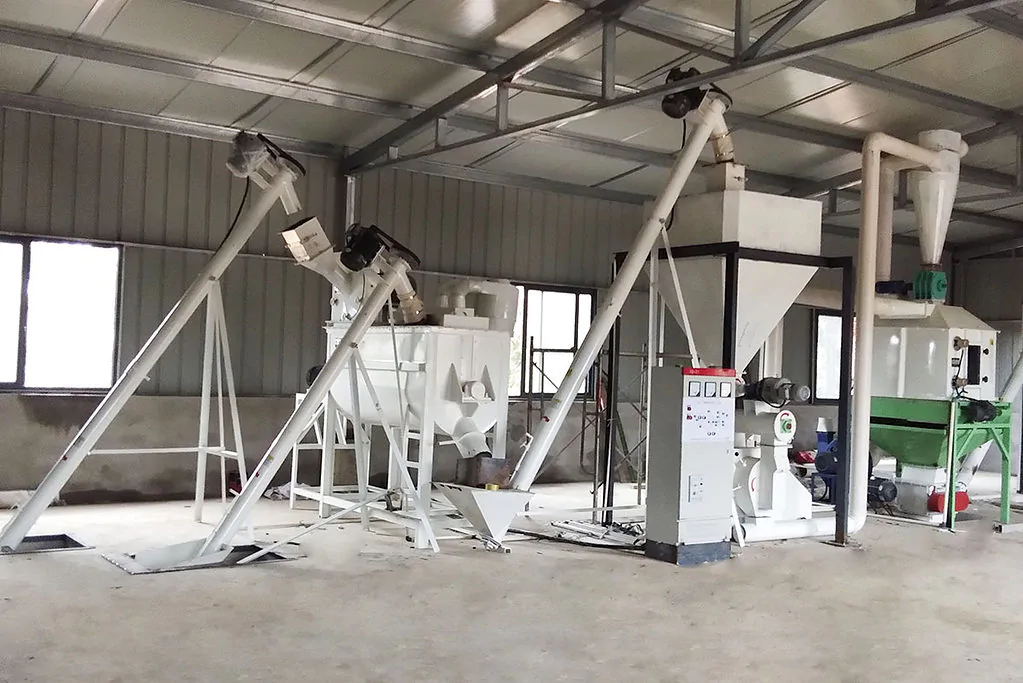

- Feed

Screw Conveyor Parts
Hopper:
Made of stainless steel metal, square or rectangular, for loading the material to be transferred. The hopper is inclined at a certain angle to match the rotation of the bottom screw.

Conveyor tube:
The internal matching screw has been used for screw rotation to transfer material. The screw is made of high quality stainless steel, which is strong and durable. In addition, the diameter of the transfer tube can be customized according to requirements
Moter & reducer:
Like a heart, it provides constant energy for the screw to rotate, and with the reducer, it can provide different rates of transmission speed
Material Outlet:
The whole machine can choose 201 stainless steel or 304 stainless steel production, can also be used according to demand more A3 steel to reduce costs.
Electrical Control Box:
Adopt ZHENGTAI brand, each function is clear at a glance. A variety of questions alarm function, the operation is more humane. With the motor overload protection function.

Wheels:
Facilitates moving screw conveyors. Wheels with snap-lock provide stable support for the conveyor while it is working.

discharging spot:
For the discharge of transferred material, connected to other equipment, e.g. silos, extruders, mixers, granulators, crushers, etc.
How Do Screw Conveyor Work?
The screw conveyor is a type of conveyor that uses a spiral shaped tube to move materials. The screws in the device go around at some predetermined speed, so they can be used as an efficient way to transport semi-solid materials over relatively short distances.
Why Choose Screw Conveyor?
- Enclosed
Totally enclosed for dusty, corrosive or hazardous environments
- Cost-effective
Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical.
- Versatile
Screw conveyors can be used to move a wide variety of materials, including both liquids and solids.
- Widely
Screw conveyors can be used both indoors and outdoors, making them a versatile option for many businesses. Ideal for conveying dry to semi-fluid bulk materials – free flowing to sluggish
Considerations When Buying Screw Conveyor?
#1 Height
Screw conveyors are often used in conjunction with other equipment such as silos, mixers, extruders, crushers, etc. You may even need to transfer material from the first floor to the second floor of your plant. You may even need to transfer material from the first floor to the second floor of your plant, so the height of the conveyor is something you need to consider when purchasing. production needs.
#2 Transmission efficiency
3ton/hour? 5ton/hour or 10ton/hour? There are many factors that affect transfer efficiency, such as the power of the engine, the diameter of the transfer tube and the size of the screw. When you tell your requirements to NICETY’s sales staff, we will customize a cost-effective conveyor for you based on our years of experience.
#3 Additional Features
In addition to providing you with high performance vertical mixers, it is also important for NICETY MACHINERY’s staff to understand your additional needs and integrate them with the mixer, for example, with heating function or increasing the number of feed opening, or reducing the height of the opening to meet the use with other equipment, etc.
#4 body materials
Can be made of different materials according to your requirements, such as: A3 steel, 201 stainless steel, 304 stainless steel, etc.

#5 The entire production line system
The screw conveyor is only one part of the equation. Considerations should include the requirements of the entire system. For example, the purpose of the production system is related to the suitability of the material.
Case Models

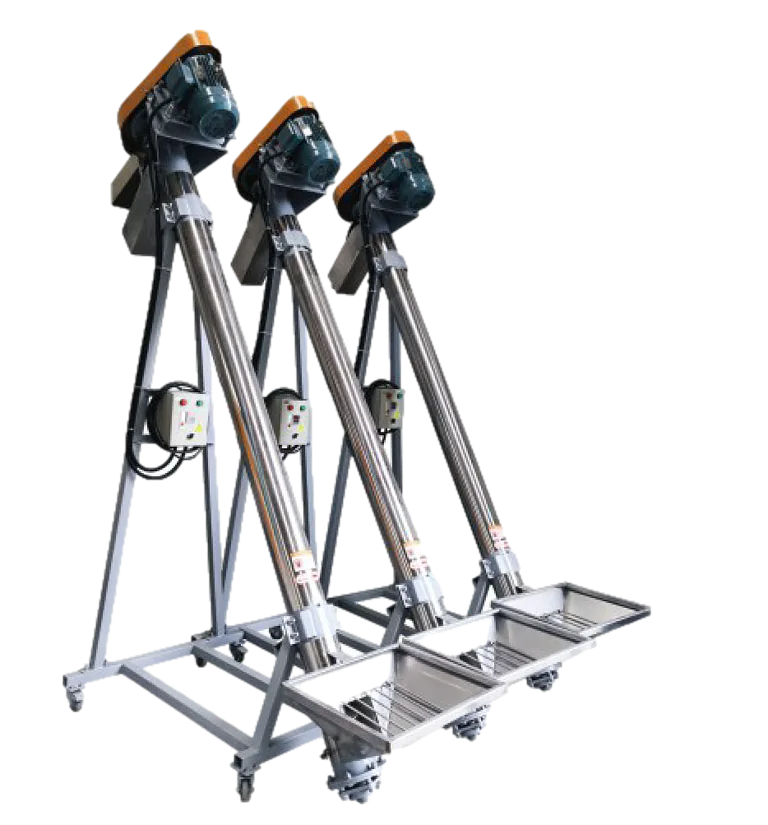

0.5-10 Ton/h spiral screw conveyor
- Can be used with various specifications of extruders and mixers.
- Suitable for all kinds of granular, crushed materials and other material feeding and conveying purposes.
- Equipped with automatic feeding control box, which can effectively reduce workers’ work intensity and improve work efficiency.
- Standing Φ108, Φ133, Φ159, Φ168, Φ219mm and other pipe diameters for customers to choose, working capacity of 0.5-10 tons/h

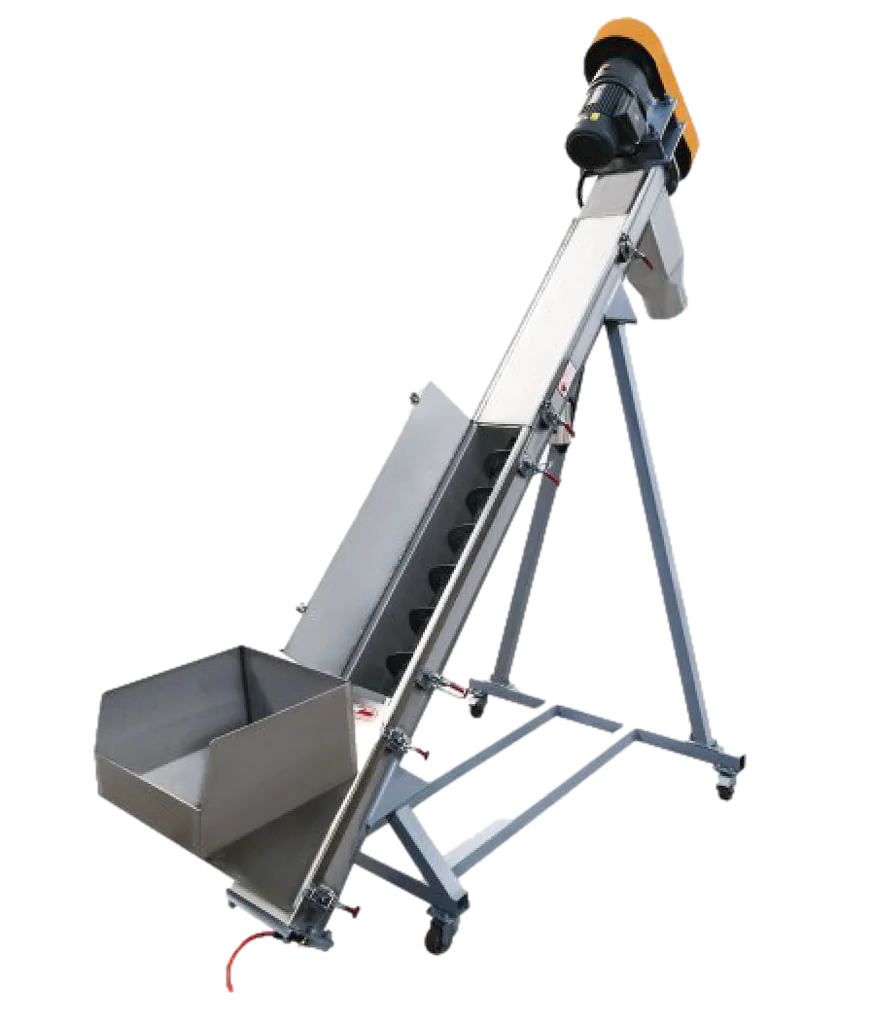

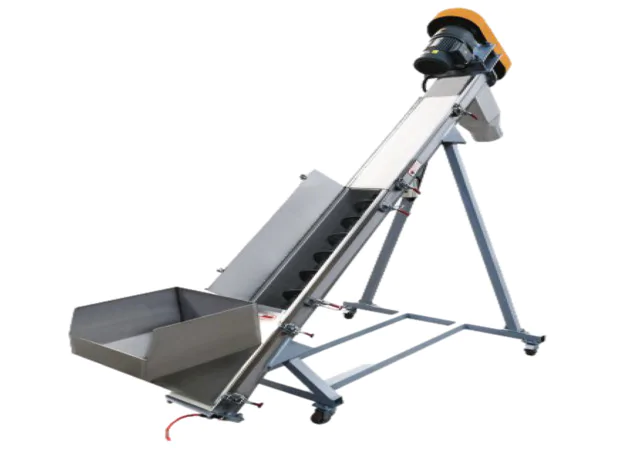

1-15 Ton/h Automated Auger Conveyor
- It can be used with various specifications of extruders, pelletizers and crushers.
- U-shaped loader cover can be flexibly disassembled and installed, easy and quick to clean up for color change
- Equipped with automatic feeding control box, which can effectively reduce workers’ work intensity and improve work efficiency.
- Standing Φ200, Φ250, Φ300, Φ350, Φ400 and other pipe diameters for customers to choose, working capacity of 1-15 tons/h

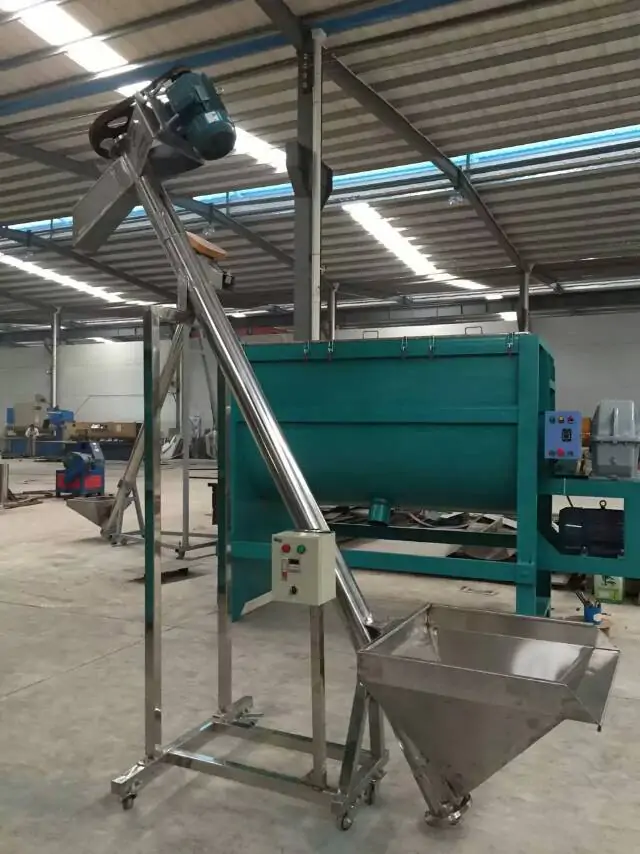

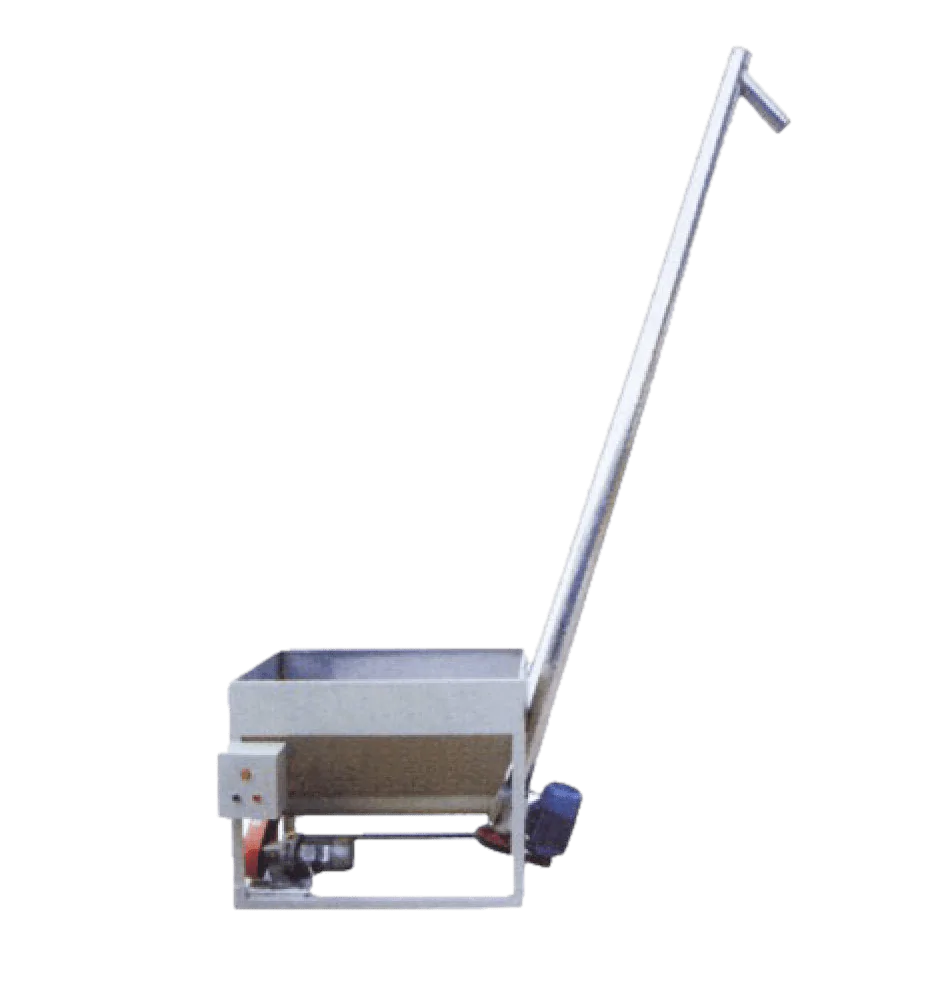

0.3-5 Ton/H 3 meters height screw feeder
- Can be used with various specifications of extruder and high-speed mixer.
- Suitable for various powder materials, PET, plastic absorbing sheet, film crushing material feeding and conveying purposes.
- Equipped with automatic feeding control box, which can effectively reduce workers’ work intensity and improve work efficiency.
- Standing Φ89, Φ108, Φ114, Φ133, Φ159 Φ168mm and other pipe diameters for customers to choose, working capacity of 0.3-5 tons/h
Types By Material
Which steel is the best materials for you to use to produce your screw conveyor?

201 stainless steel
Although the corrosion resistance of 201 stainless steel is not strong, but it still has good anti-corrosion properties, if your material is not strong corrosive, then the affordable 201 stainless steel will be the material of choice for the manufacture of screw conveyor.
304 stainless steel
304 stainless steel is a common type of stainless steel in life, the household appliances you use and even the faucets may be made of 304 stainless steel. It has better corrosion resistance than 201 stainless steel
More Options
Depending on your use scenario, there are many options for steel. If your product is a very corrosive chemical, the more expensive 316 stainless steel is obviously more suitable, and although expensive, it is worth it.
