Single-shaft shredders for the plastic recycling industry
At NICETY MACHINERY CO., LTD, we understand the growing need for effective plastic recycling solutions. Our single shaft shredder machines are designed to address this challenge head-on, helping you improve your recycling efficiency while providing a stable, safe, and cost-effective solution.

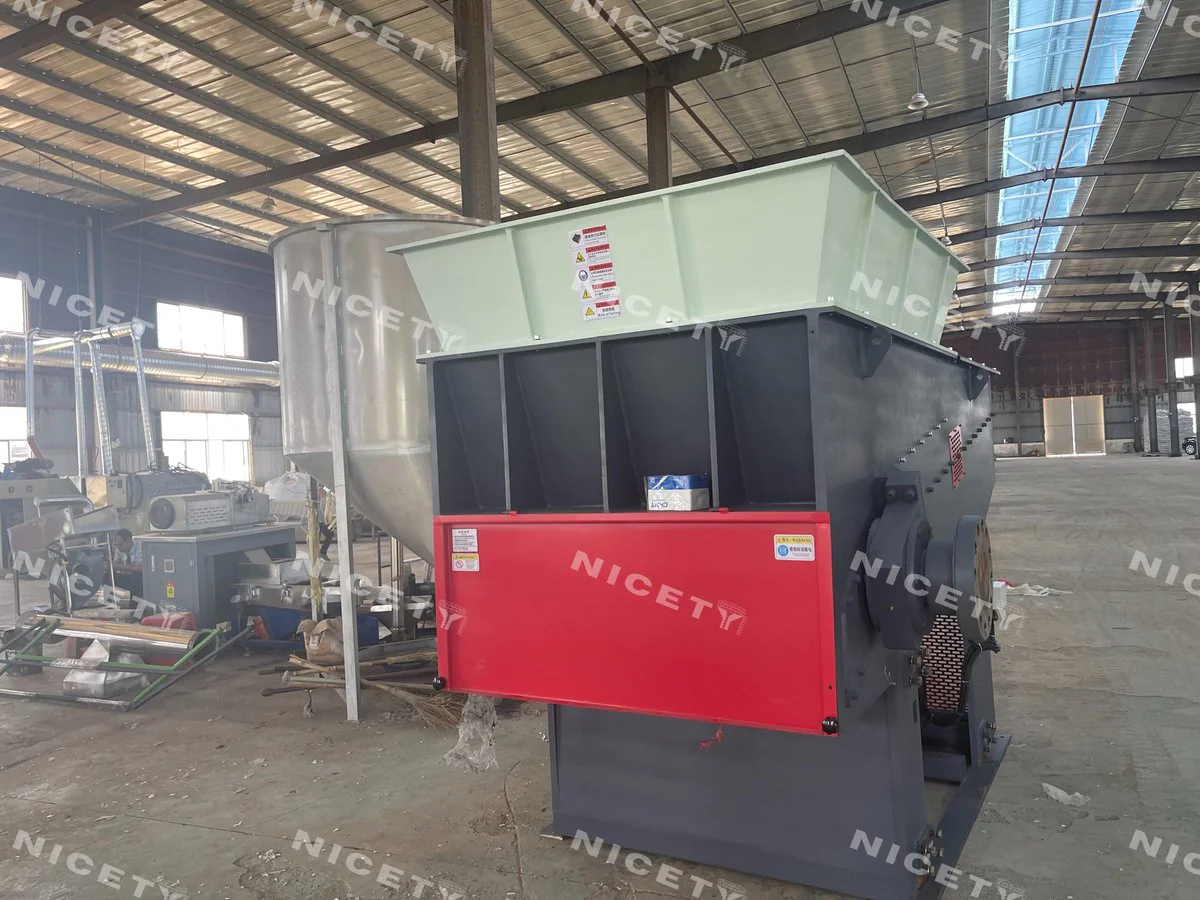

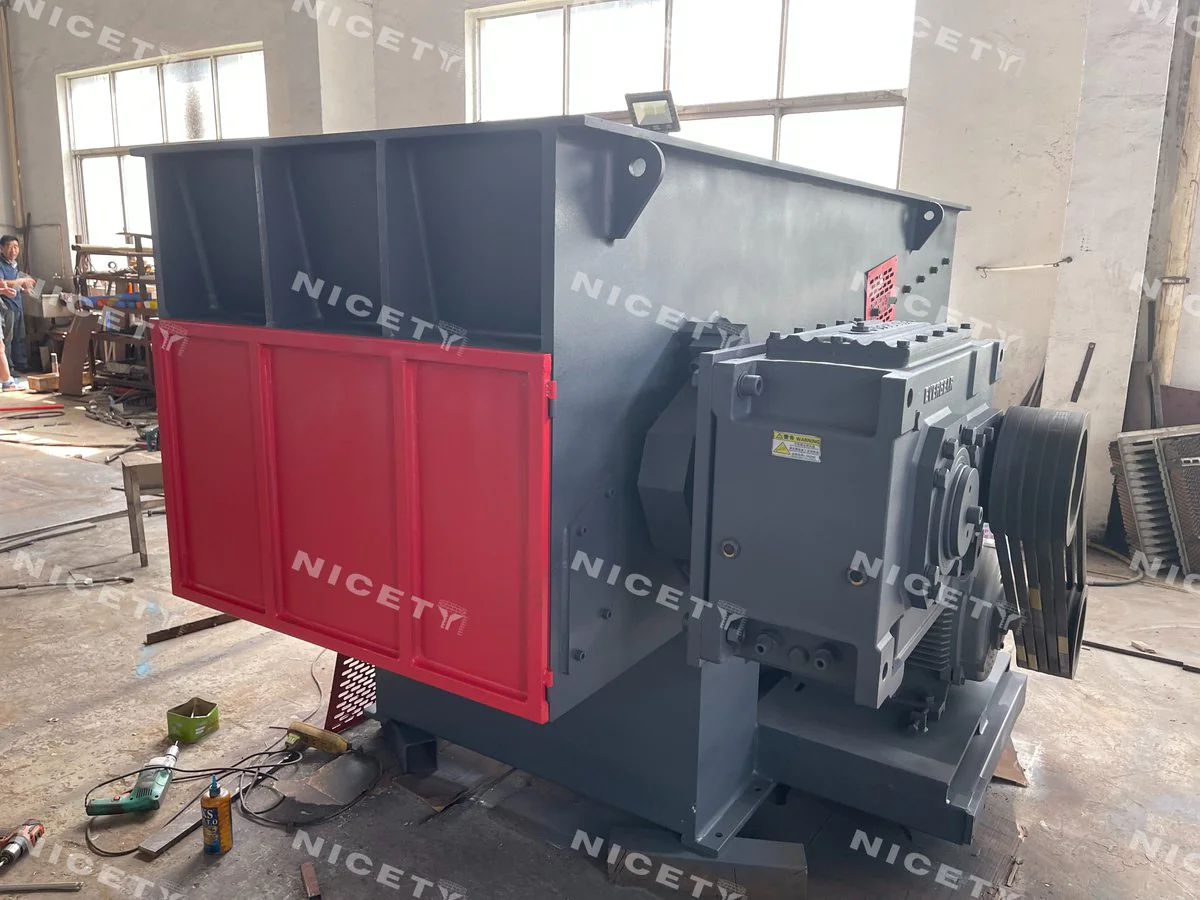

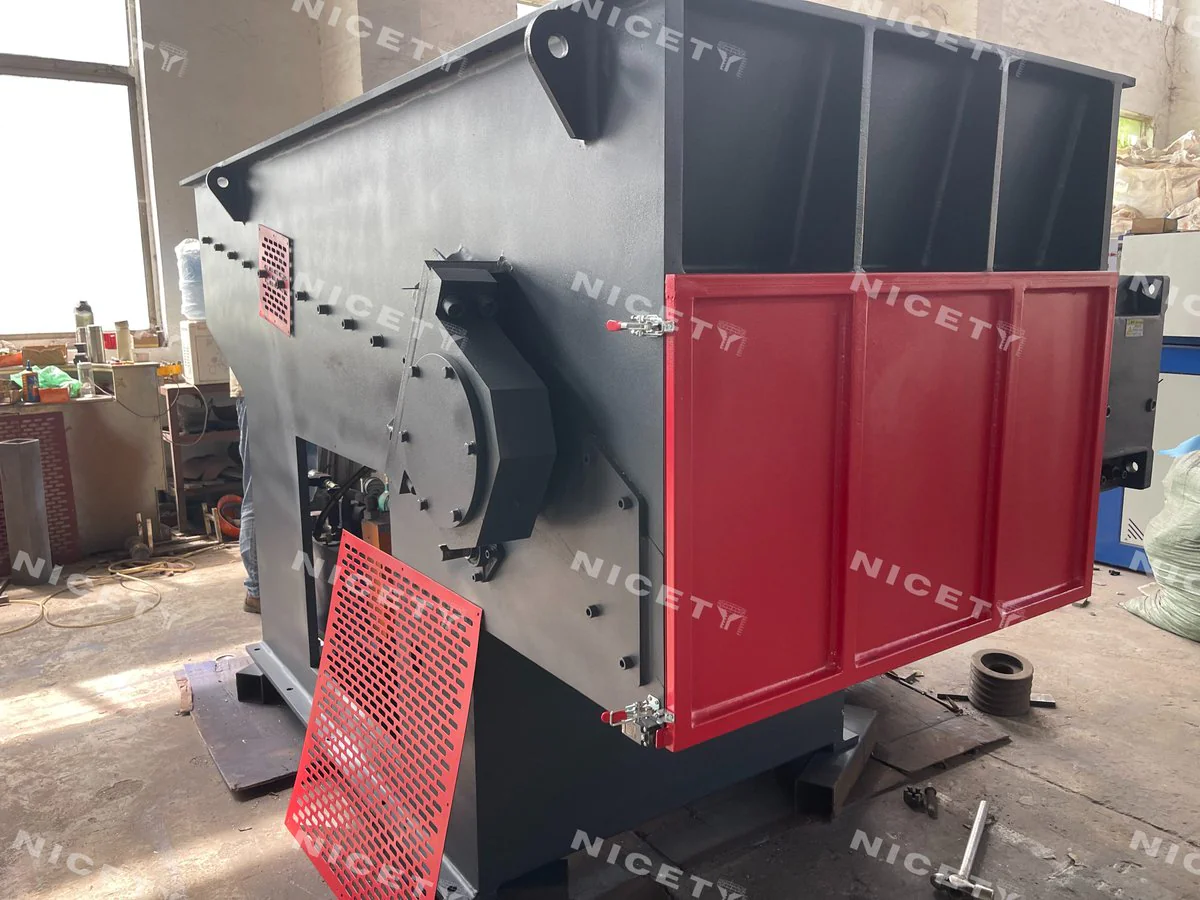

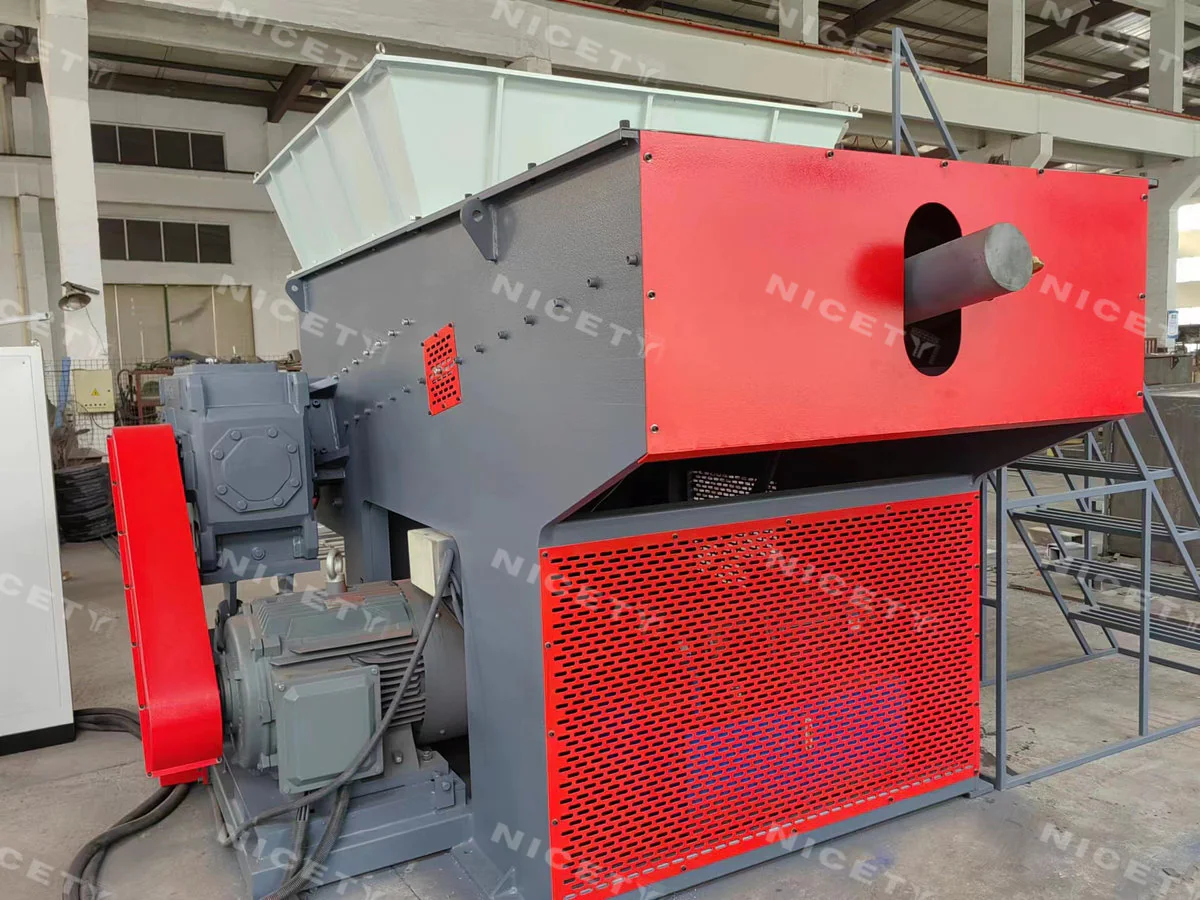

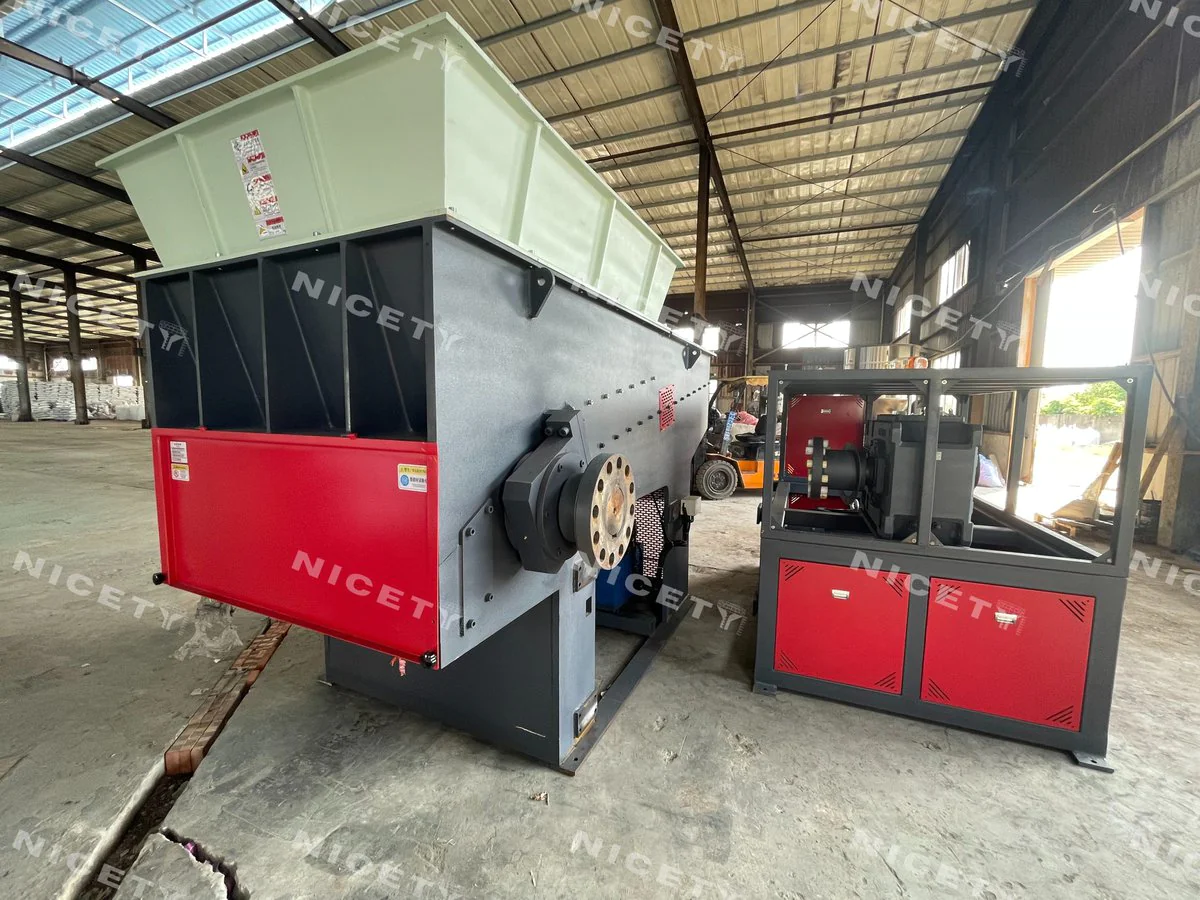

Single shaft shredder machine Manufacturer
NICETY is a leading manufacturer specialising in plastics recycling, crushing and shredding equipment.
- Production capacity: 500kg/hr – 10ton/hr (depending on the model)
- Power consumption: 33 kw-90 kw (depending on the model)
- Output Pellet size: 30-50mm
- Intuitive operation, PLC control with touch display
- Applications: PP/PE Film, Rubber, HDPE/LDPE, PS, PLA, PVC Waste etc.

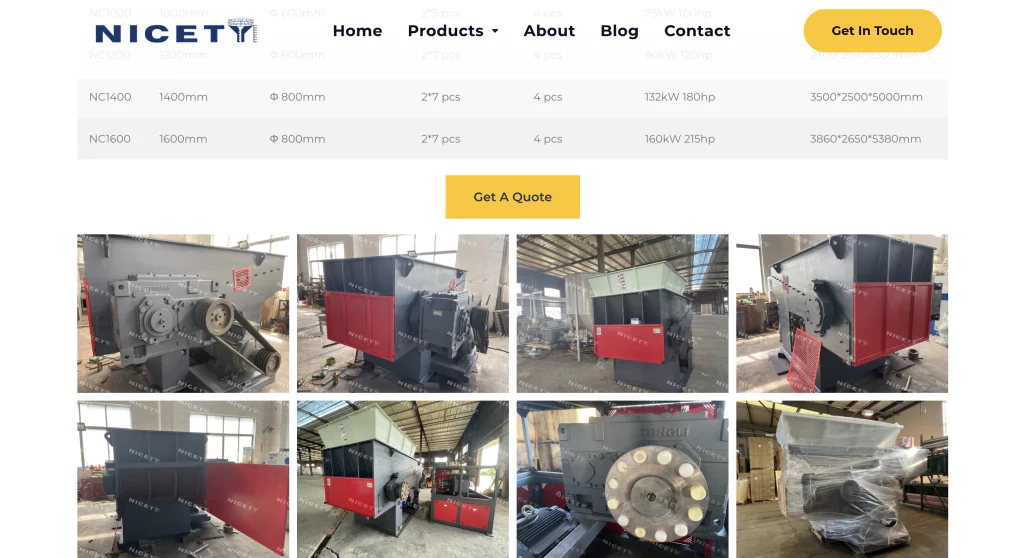

| Model | Shaft length | Rotating diameter | Rotor baldes | Fixed blades | Installed power(KW) | Overall dimension |
|---|---|---|---|---|---|---|
|
NC600 |
600mm |
Φ 350mm |
2*3 pcs |
2 pcs |
22kW 30hp |
1650*1370*1950mm |
|
NC800 |
800mm |
Φ 450mm |
2*3 pcs |
4 pcs |
37kW 50hp |
2000*1750*3150mm |
|
NC1000 |
1000mm |
Φ 600mm |
2*5 pcs |
4 pcs |
75kW 100hp |
2300*1950*3350mm |
|
NC1200 |
1200mm |
Φ 600mm |
2*7 pcs |
4 pcs |
90kW 120hp |
2300*2150*3350mm |
|
NC1400 |
1400mm |
Φ 800mm |
2*7 pcs |
4 pcs |
132kW 180hp |
3500*2500*5000mm |
|
NC1600 |
1600mm |
Φ 800mm |
2*7 pcs |
4 pcs |
160kW 215hp |
3860*2650*5380mm |
Table Of Contents For This Page
Understanding every aspect of the custom single shaft shredder machine is no simple task, so we’ve put together a wealth of information on this page for you to explore in depth. To ensure you can quickly find the information you need, we’ve carefully prepared this content directory, which will take you directly to the corresponding location when you click on it.
Common materials suitable for Single shaft shredder machine
Find your recycling industry in our cases
PVC Pipe
HDPE Container
ABS/ PS Waste
LDPE Film
PP Jumbo bag
PE Film Waste
PLA Waste
Battery Film
Different types of plastics require to choice different types of blades in the shredder chamber
Tell Us What's your material type And We'll tailor-make solutions for you
NICETY Plastic Crusher Machine Series
NICETY Single Shaft Shredder Technical Features I

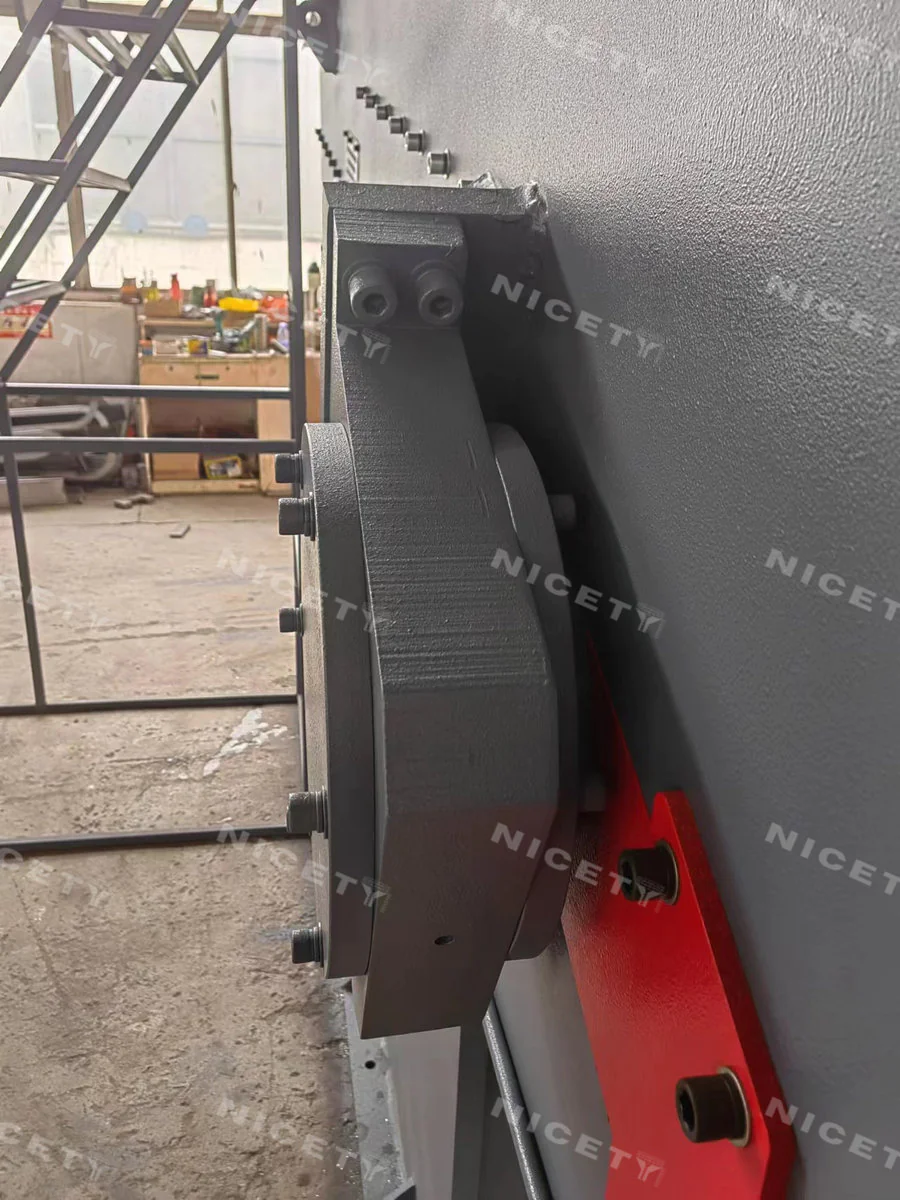

- Nicety single shaft shredder blade shaft bear external
The main shaft and the body are sealed by a sealing ring, and the gap between the shaft bear and the shredding chamber of the chassis can effectively prevent the debris from entering the bearings and prolong the service life of the bearings.
NICETY Single Shaft Shredder Technical Features II

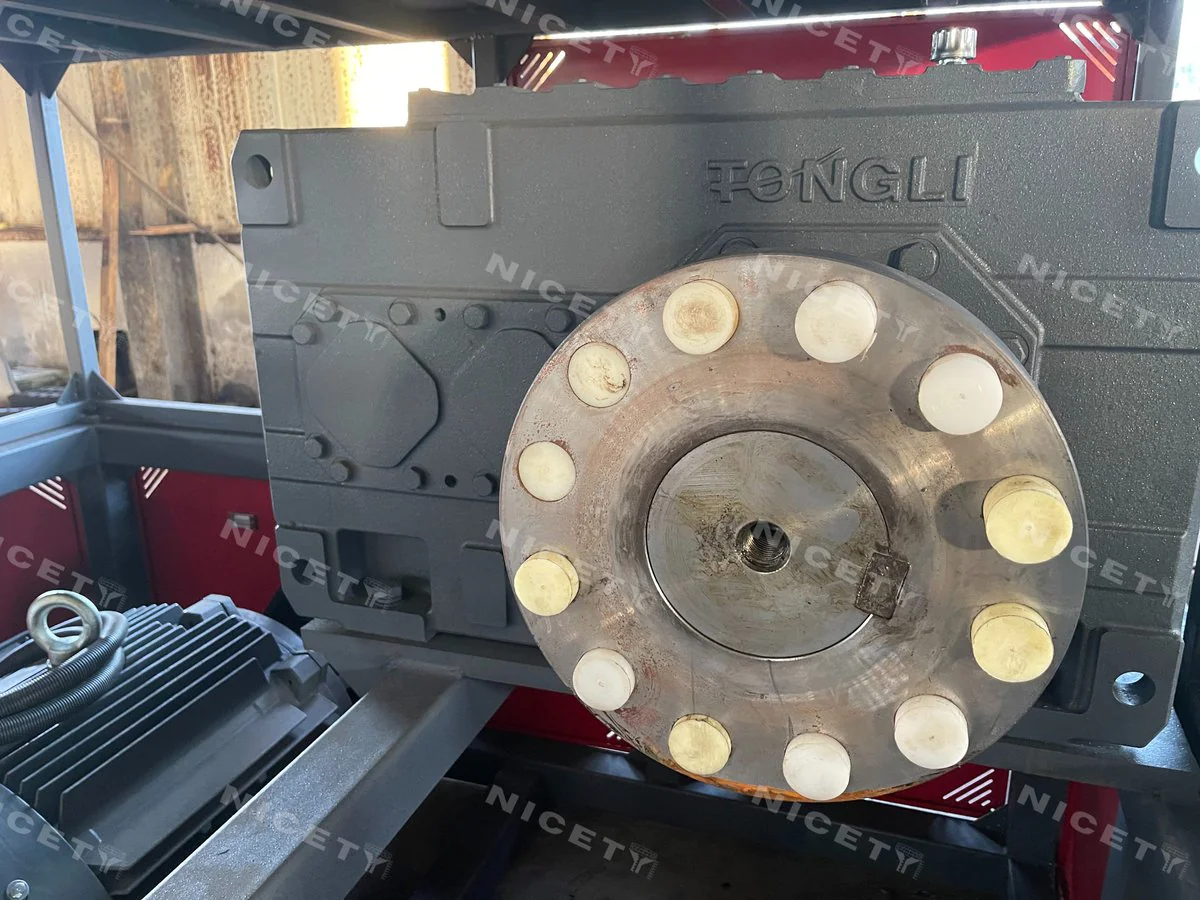

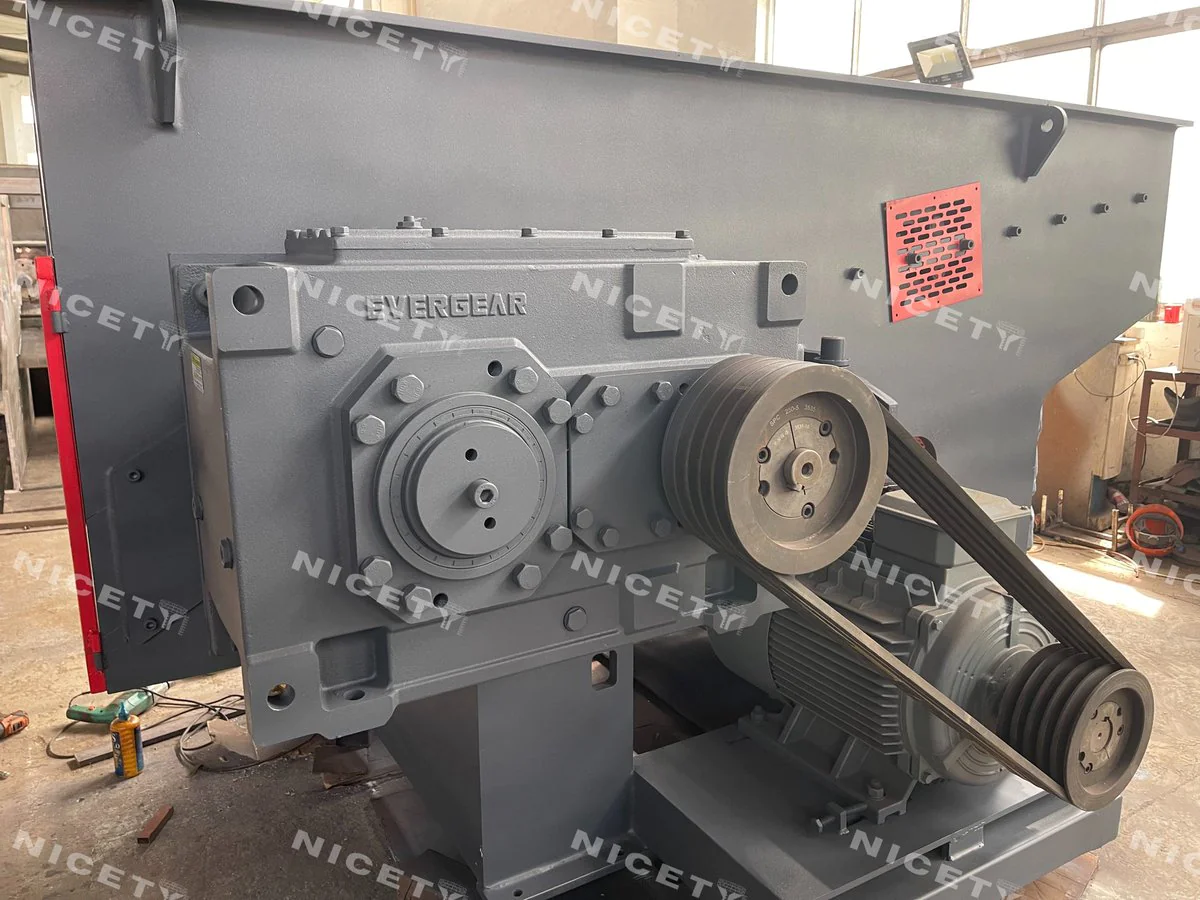

- Vibration damping design between cutter shaft and reducer
The knife shaft is connected with the reducer through the high-strength nylon shaft, which plays the role of cushioning the tremor.
It effectively reduces the damage to the reducer caused by the trembling of the knife shaft during the shredding process, which can effectively extend the service life of the knife shaft and reducer and reduce the noise.
NICETY Single Shaft Shredder Technical Features III

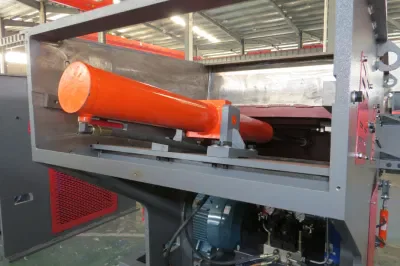

- Inclined feed rails for more efficient shredding.
A feed bin with a gradient pushes the material towards the rotating rollers with blades, driven by a trolley powered by a hydraulic actuator.
The gradient allows for a more efficient increase in throughput that you won’t see on other single-shaft shredders!
NICETY MACHINERY CO., LTD is a manufacturer and supplier of plastic shredder machine with over 10 years of experience. No matter single shaft or twin shafts shredder, our shredder machine can efficiently shred all types of plastic materials to meet your specific needs.
Single shaft shredder machine Working Video Cases
Shredding board
For Polyester waste
Shredding, crushing combo
For HPDE barrels, drums
For agricultural, PE film
For FIBC PP bag, fabric
NICETY: Teaching you to be an expert in crusher machine
Our understanding of single shaft shredder comes from decades of production experience
What is single shaft shredder machine? How does it work?
A single shaft shredder machine is a type of industrial equipment used to break down various plastic waste, and more into smaller pieces. It consists mainly of a rotating shaft with cutting blades, a feeding system, and a screen to filter the shredded material to the desired size.
Here’s how it works:
- Feeding: The material to be shredded is fed into the machine through the feeding system.
- Shredding: As the shaft rotates, the cutting blades attached to it come into contact with the material, breaking it down into small pieces.

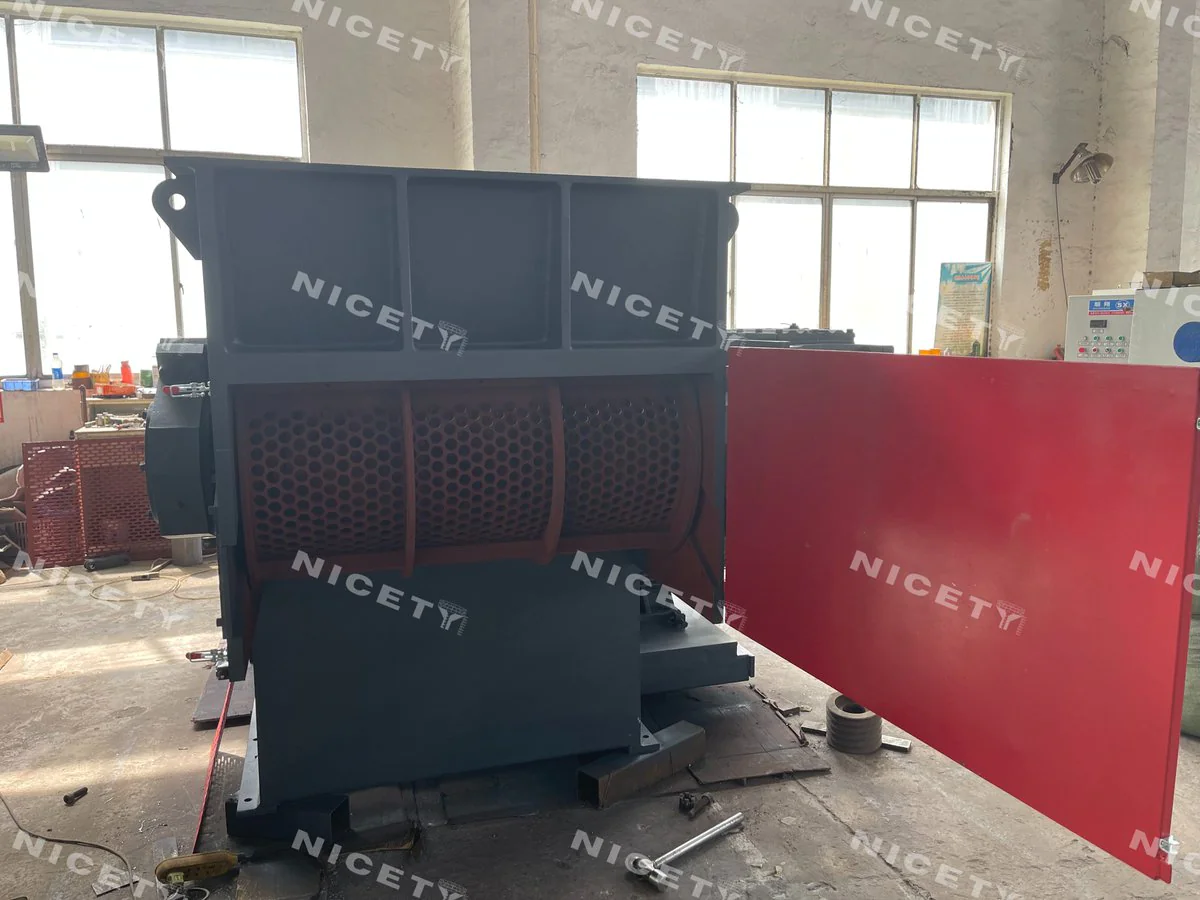

- Sizing: The shredded material then passes through a screen that filters the pieces to ensure they are of the desired size.
- Discharge: Finally, the shredded material is collected or conveyed for further processing or disposal.
What is the difference between a single shaft shredder and a crusher?
A single shaft shredder uses a rotating blade to shred various materials into smaller pieces, suitable for a wide range of substances, while a plastic crusher specifically crushes plastic materials into granules or flakes, focusing more on size reduction for recycling purposes.
The rotational speed of the knife shaft of the single-shaft shredder is slower than the rotational speed of the crusher, the rotational speed of the single-shaft shredder is about 80r/min, and the rotational speed of the crusher is 570r/min.
The torque of a single-shaft shredder is greater than that of a crusher, meaning that a single-shaft shredder is better suited to shredding larger, harder plastic products.

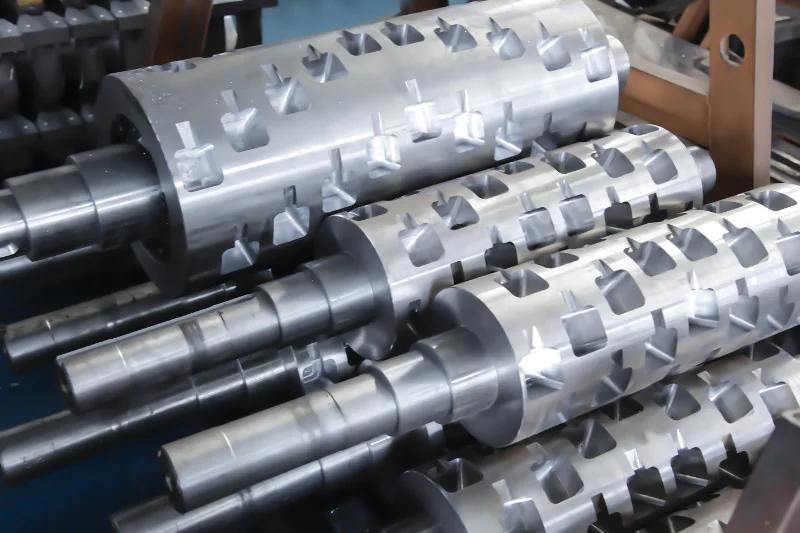

Single shaft shredder blade shaft
Crusher machine blade shaft
What are the materials of the knives for single-shaft shredder?
The cutting tools of a single shaft shredder are made from materials that must possess good wear resistance, hardness, and toughness to effectively handle various materials. Common materials for the blades include:
- Alloy Steel: Such as SKD-11, D2, etc., these materials offer good wear resistance and hardness.
- High-Speed Steel: More wear-resistant and suited for high-speed cutting applications.
- Carbon Steel: Offers some hardness but might not be as wear-resistant as other alloys.
- Carbide Alloys: Like tungsten carbide, provide extremely high wear resistance and hardness for the most challenging shredding applications.
The choice of material typically depends on the specific application and required performance of the shredder. Different materials may be suited to different materials and working conditions, so multiple factors may need to be considered in the selection process.
Want to improve or increase the productivity of your plastic recycling machine?
Our website includes PDF files of frequently asked questions related to plastic recycling, washing, pelletizing machines or systems and solutions to help you quickly find the assistance you need.
single-shaft shredder Related Equipments
We also produce other equipment related to the use of the single shaft shredder machine, where you can make a one-stop purchase!

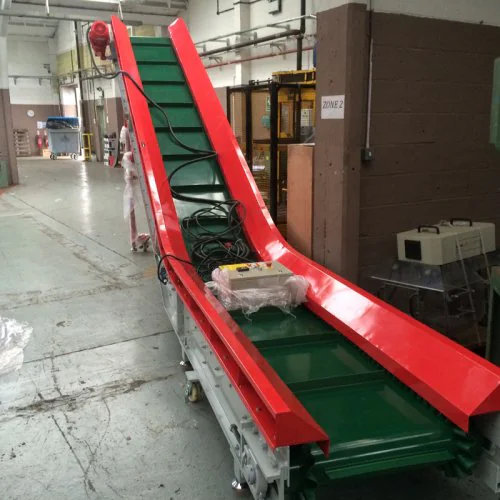

Conveyor belt: Seamlessly Move Your Plastic Waste to shredder machine!
The conveyor belt is an essential companion to the single shaft shredder machine, streamlining the waste handling process. Effortlessly transport plastic materials to be shredded, ensuring continuous operation and maximizing efficiency!
Experience a smooth and efficient workflow with our reliable conveyor solutions, customize to your site to meet your material shredding needs!

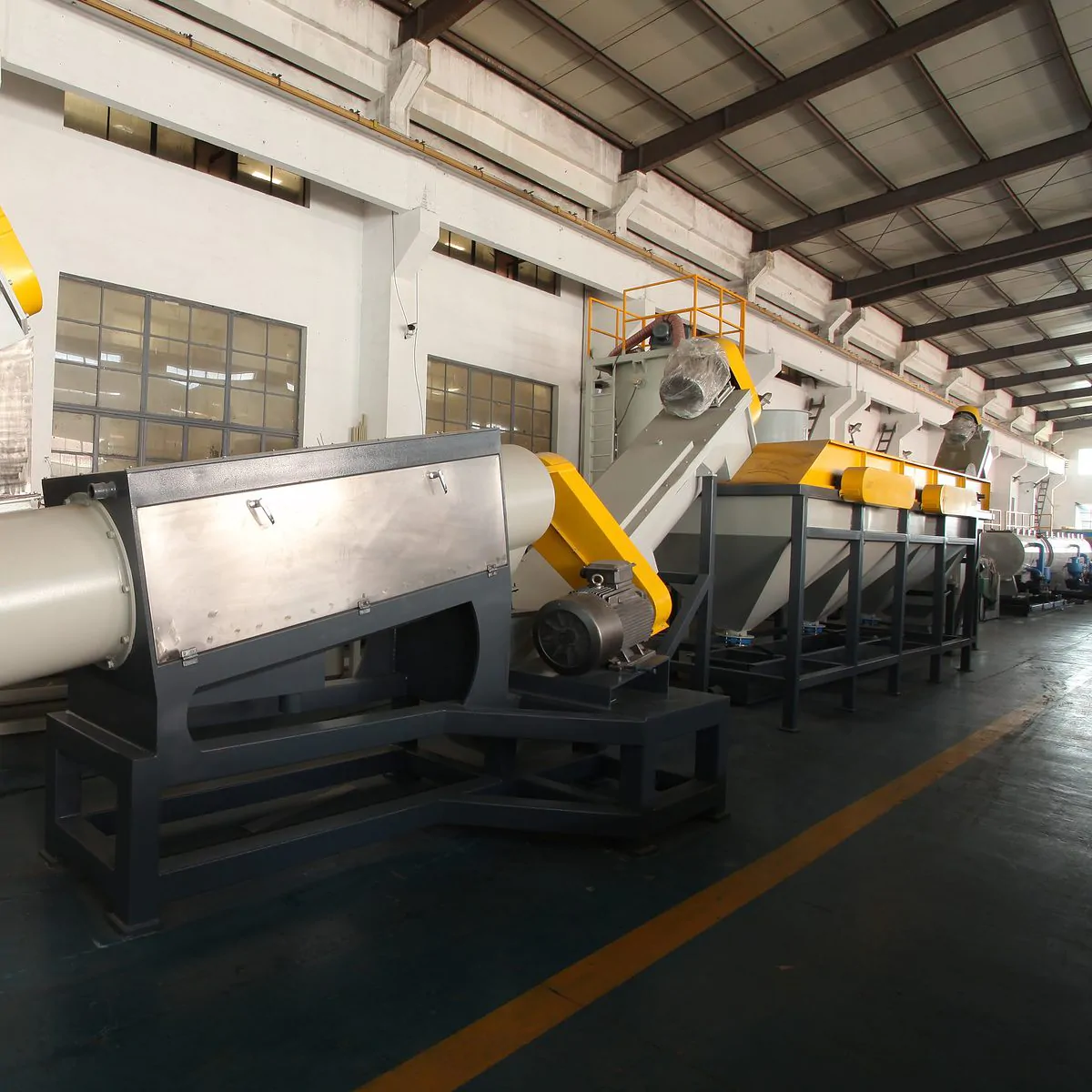

Washing device: Makes the shredded material clean
We have received a lot of enquiries from customers, in which a large proportion of them asked how to clean the shredded materials.
The answer we give is that a friction wash loader can be placed behind the shredder as well as a rinsing tank.
Not only can it effectively clean the materials after shredding, but also through the rinsing pool, it can effectively separate different materials such as PVC, PP, PE, PET, etc. by using the different densities of different plastic types.
Crusher machine: Effective device to further reduce the size of the shredded material
Due to the fact that we need to balance the output with the limiting factors of the size of the knives on the cutter shaft and the screen, the single shaft shredder is only able to shred material to a size of 30mm +.
If the material size of 30mm+ is still too big for you, then we recommend you to set up a crusher behind the shredder to further reduce the size of the shredded material.
Together using with the crusher, you can get 20mm, 16mm and even 12mm size flakes.

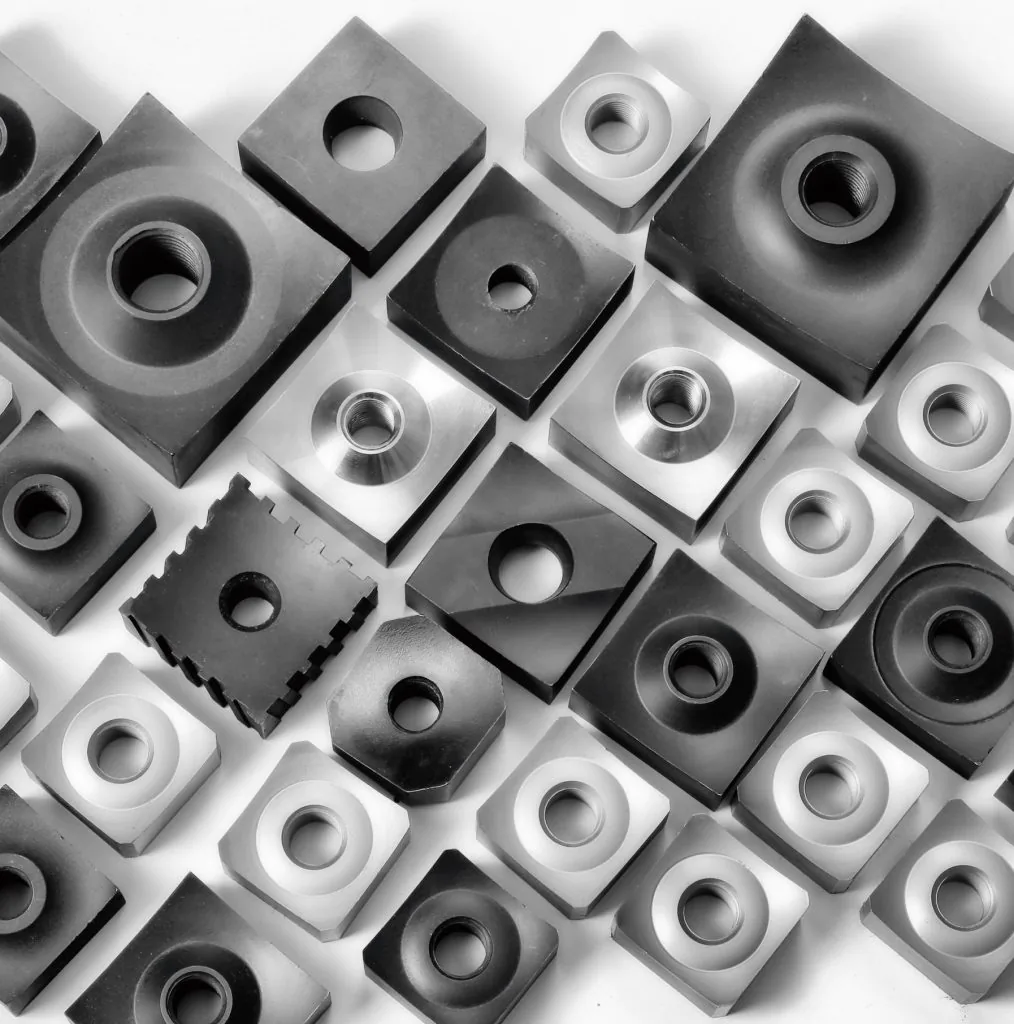

Spare blades: Uninterrupted Shredding Performance!
The knives or blades of a single-shaft shredder machine are crucial components, and the material from which they are made significantly impacts the machine’s performance, durability, and the type of waste it can effectively process. The most commonly used materials for these knives include:
- High Carbon Steel: Durable; suitable for general waste.
- High-Speed Steel (HSS): Tough; suitable for abrasive materials.
- Tool Steel (e.g., D2): Used for shredding plastics; balanced hardness and toughness.
- Tungsten Carbide: For highly abrasive materials; often combined with steel blades.
- Hardened Steel: Enhanced durability and wear resistance.
- Stainless Steel: For corrosion-resistant needs.
other Related plastic recycling machine
The FAQs About single shaft shredder machine
What is a single-shaft shredder?
Single shaft shredder is a machine with one rotating cutting shaft that shreds materials into smaller sizes for disposal or further processing.
How large is the output particle size?
Output sizes vary depending on the parameters of the cutter and the size of the screen holes, but are usually available in sizes of 30mm, 40mm, 50mm, etc.
How does it differ from a dual or multi-shaft shredder?
Single-shaft shredders use one rotating blade for shredding, while dual or multi-shaft versions use multiple interlocking cutters, often providing different shred sizes and speeds.
How often do the blades need replacement or maintenance?
This depends on usage and material type. Regular inspection is recommended, but with average use, blades may need sharpening or replacement after several months to a year.
What safety features does your shredder have?
Our shredder machine model designs include auto-reverse, overload protection, and emergency stop features.
How noisy is the single shaft shredder operation?
Noise levels vary by model, but some noise may be generated during operation. Acoustic or noise-reducing enclosures are available for quieter operation and will be less than 90dB
Can it handle metal contaminants?
While designed for specific materials, many models can manage occasional small metal contaminants, but regular exposure can dull blades faster.
What's your shredder machine's lifespan?
With proper maintenance, Our shredders can operate efficiently for 5-10 years or even longer.
How does waste material get ejected?
Our single-shaft shredders use a screen that allows shredded material to fall through once it reaches the desired size, and it's then collected in a bin or conveyed away.
How do I troubleshoot common problems?
We will provide a user manual detailing common troubleshooting steps. Regular maintenance checks and timely blade replacements often prevent many issues.
What are your shredder machine after-sales services
We will provide a 1-year warranty, during which any quality problems occur, we will provide free repair support services or replacement of necessary parts.
We also focus on pre-sales services, such as providing equipment layout according to your factory floor plan, customising your shredder according to your needs and so on!
If your question is not listed, please email us right now.
NICETY: High-Quality Plastic recycling Machine Manufacturer
Our plastic recycling machines are made of top-quality motors, electric parts and metal parts to ensure maximum efficiency and durability.
Reliable Plastic recycling machine manufacturer in China
Partner with us for high-quality plastic recycling equipment and unbeatable after-sales support！
- Certified by CE, ISO UL, CSA certification
- High quality, cost effective, low failure rate plastic recycling machines
- Professional after-sales service with quick response to your needs
At Nicety, we take pride in our global reach with customers in various countries, including the Middle East, Europe, North America, and South America. Our successful delivery solutions have earned us positive feedback from satisfied clients worldwide.
Top 8 Single Shaft Shredder Machine Manufacturer
I’m thrilled to present the top eight single shaft shredder machine manufacturers in the market today.
These companies, including WEIMA, CMS, Nicety Machine, and more, are revolutionizing waste management and recycling on a global scale.
With their cutting-edge technology and expertise, they provide high-quality and durable shredding solutions for diverse industries.
From energy-efficient options to customizable solutions, these manufacturers are leading the way in innovation and sustainability.
Join me as we explore the world of single shaft shredder machines and discover the best in the business.
Key Takeaways
- Nicety Machine is a well-established and reputable manufacturer of single-shaft shredders, with their NC-S800 model being a popular choice in the industry. They also offer other types of shredders, granulators, and cutting mills for recycling or disposal purposes.
- CM Shredders has a focus on energy efficiency, with their CM.300 shredder being an energy-efficient solution for shredding. This commitment to sustainability is further demonstrated through their support of the circular economy and initiatives like the Destroy Responsibly program.

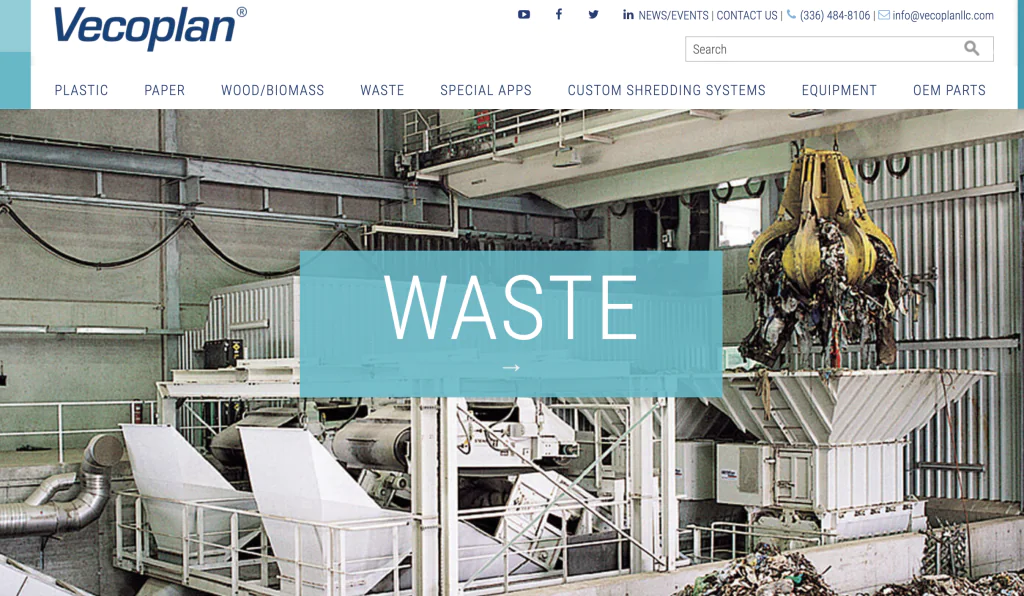

- In addition to shredding, Vecoplan LLC also specializes in briquetting and draining technologies. They offer a wide range of briquette presses and hydraulic recycling presses for compressing and draining residual materials, such as cans, packaging, chips, and labels.
- WEIMA has a strong customer base and has delivered over 40,000 machines worldwide. They have also formed partnerships with organizations like the Precious Plastic Community for micro recycling projects and have received positive testimonials from satisfied customers.
WEIMA: Leading Innovator in Single Shaft Shredder Machines
I have read that WEIMA is the top innovator in single shaft shredder machines, leading the industry with their cutting-edge technology and advanced features.
Their machines are designed to provide efficient and reliable shredding solutions for various applications.
With a focus on freedom and sustainability, WEIMA offers a range of single shaft shredders that are perfect for recycling or disposal purposes.
These machines are equipped with powerful motors and robust cutting systems, ensuring effective shredding of different materials.
The innovative design and advanced features of their machines enable precise and consistent shredding, resulting in high-quality output.
WEIMA’s commitment to technological advancements and customer satisfaction makes them the preferred choice for those seeking freedom in waste management.

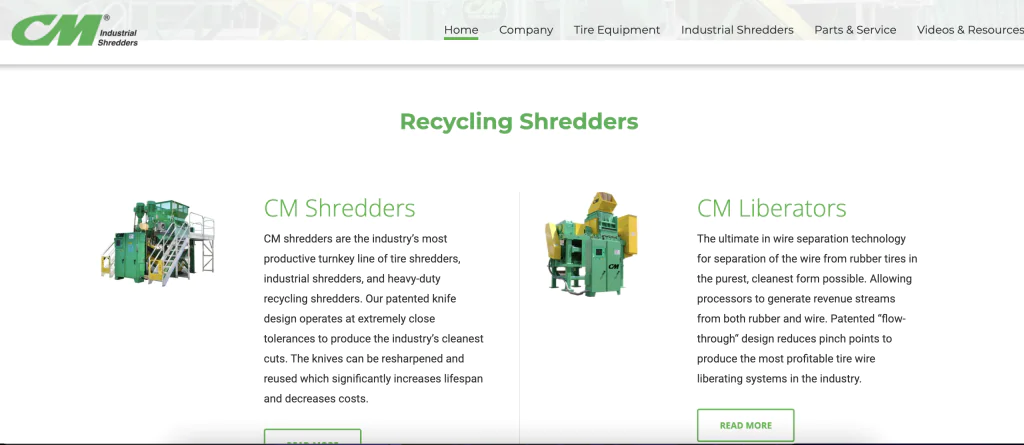

CM Industrial Shredders: High-Quality and Durable Shredder Machine Manufacturer
CM Industrial Shredders excels in manufacturing high-quality and durable shredder machines, ensuring efficient shredding of various materials. With their extensive knowledge and technical expertise, they’ve become a trusted name in the industry.
Their single-shaft shredders, multi-shaft shredders, granulators, and cutting mills are designed for recycling or disposal purposes, providing freedom in waste management. Notable machines include the CM- 4, a single-shaft shredder with a 600 mm rotor length, and the energy-efficient CM-300 shredding solution.
CM Industrial Shredders also offers briquetting presses, transforming residual materials into highly compressed briquettes, as well as hydraulic recycling presses for draining and compressing. With over 23 years of experience and a commitment to sustainability, CM Industrial Shredders continues to deliver cutting-edge technology for effective shredding.
Now, let’s dive into the next section and explore the innovations of NICETY MACHINERY CO.,LTD.
NICETY MACHINERY : Cutting-Edge Technology for Effective Shredding
There are several cutting-edge technologies available from NICETY MACHINERY CO.,LTD (China Manufacuter) that effectively enhance the shredding process. With our single-shaft shredders, multi-shaft shredders, granulators, and cutting mills, we offer top-notch solutions for recycling or disposal.
Take, for example, our NC-S600, a single-shaft shredder with a 600 mm rotor length, providing efficient and reliable shredding capabilities. Additionally, our NC-S800 offers an energy-efficient shredding solution, ensuring maximum productivity while minimizing energy consumption.
Our range of machines also extends to briquetting and draining, allowing you to transform residual materials into highly compressed briquettes or utilize hydraulic recycling presses for draining and compressing.
As a mid-sized family-owned company with over 20 years of experience, we prioritize sustainability and actively support the circular economy. Choose NICETY MACHINERY CO.,LTD for advanced technologies that empower your freedom to responsibly manage waste.
Their industry-leading performance and durability make NICETY MACHINERY’s single shaft shredder machines the top choice for waste processing needs. These machines are designed to deliver efficient and reliable shredding solutions, allowing for the effective recycling and disposal of various materials.
Here are four key features that set NICETY MACHINERY’s machines apart:
-
Advanced Technology: NICETY MACHINERY utilizes cutting-edge technology in their single shaft shredder machines, ensuring optimal performance and precision in shredding operations.
-
Robust Construction: These machines are built with high-quality materials and components, providing exceptional durability and longevity even in demanding environments.
-
Versatile Applications: NICETY MACHINERY’s shredder machines can handle a wide range of waste materials, including plastics, wood, paper, and more, making them suitable for diverse waste processing needs.
-
User-friendly Design: With user-friendly interfaces and intuitive controls, these machines are easy to operate, allowing for seamless integration into waste processing operations.
For those seeking freedom in waste processing, NICETY MACHINERY’s single shaft shredder machines offer the perfect solution, delivering unparalleled performance and durability.
Customers always amazed by the advanced safety features of NICETY MACHINERY’s single shaft shredder machine, which ensured hassle-free shredding for efficient waste processing. The machine incorporates cutting-edge technology to prioritize user safety without compromising performance. Here is a comparison table highlighting some of the key safety features of NICETY MACHINERY’s single shaft shredder machine:
| Safety Feature | Description | Benefits |
|---|---|---|
| Safety Interlocks | Ensures the machine cannot be operated unless all safety guards and doors are securely closed. | Prevents accidents and injuries during operation. |
| Emergency Stop Button | Allows immediate cessation of shredding operation in case of any emergency. | Provides quick response in critical situations. |
| Overload Protection | Automatically stops the machine when it detects excessive loads, preventing damage. | Extends the lifespan of the shredder and reduces downtime. |
| Safety Sensors | Monitors the shredding process and stops the machine if any abnormal behavior is detected. | Enhances overall safety and prevents equipment damage. |
| User-friendly Interface | Intuitive control panel with clear instructions and visual indicators for easy operation. | Minimizes the risk of errors and accidents. |
With these advanced safety features, NICETY MACHINERY‘s single shaft shredder machine ensures a secure and efficient waste processing experience, giving users the freedom to focus on other important tasks.

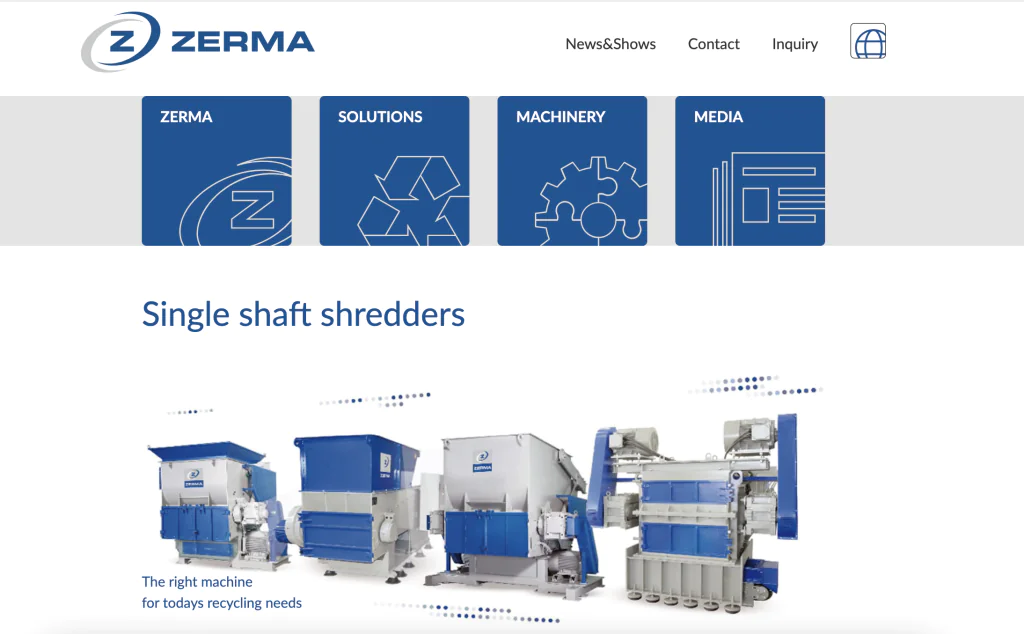

ZERMA Machinery: Trusted Provider of Single Shaft Shredder Machines
As a customer in the market for a single shaft shredder machine, I trust ZERMA Machinery to provide reliable and efficient solutions for my waste management needs. With their extensive experience of over 18 years and a track record of selling over 40,000 machines globally, ZERMA Machinery has established themselves as a trusted provider in the industry.
Their mid-sized, family-owned company based in Baden-Württemberg focuses on core competencies in shredding and compacting waste. They offer a wide range of shredding solutions, including single-shaft shredders, multi-shaft shredders, granulators, and cutting mills for recycling or disposal.
Additionally, ZERMA Machinery supports the circular economy through their sustainable initiatives, such as the Destroy Responsibly program and their technology partnership with the Precious Plastic Community.
When it comes to waste processing, ZERMA Machinery is the go-to choice for reliable and efficient single shaft shredder machines.

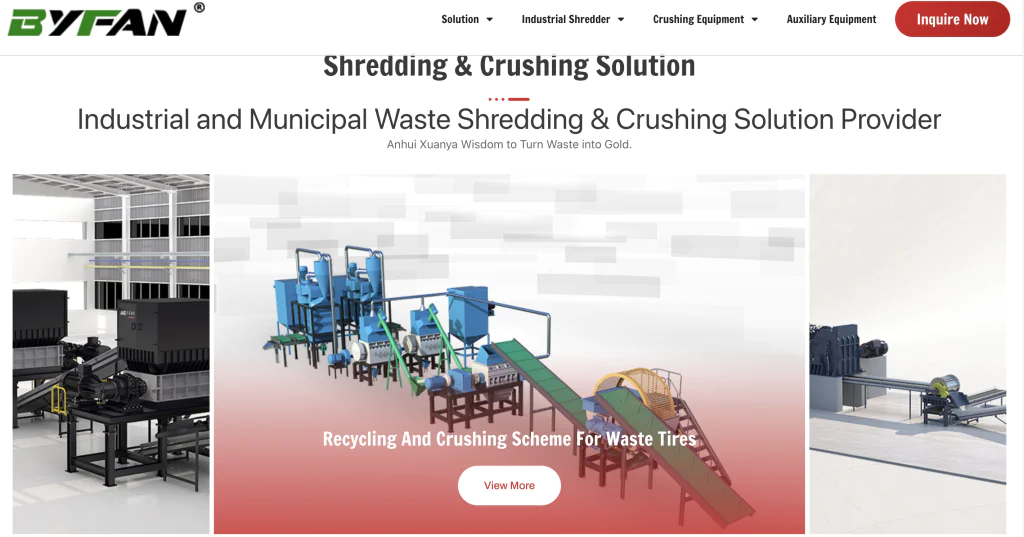

Anhui Xuanya Machinery: Customizable Solutions for Your Shredding Needs
I just discovered Anhui Xuanya Machinery’s innovative shredding solutions, which offer customizable features to meet all of your specific shredding needs. As someone who values freedom and the ability to tailor equipment to my requirements, I’m impressed by the options provided by Anhui Xuanya Machinery.
Here are four key features that make their shredding solutions stand out:
-
Advanced single-shaft shredders, multi-shaft shredders, granulators, and cutting mills for recycling or disposal.
-
The XA-4, a single-shaft shredder with a 300 mm rotor length, ensuring efficient shredding capabilities.
-
The XA-5, an energy-efficient shredding solution that not only meets my shredding needs but also supports sustainability.
-
The popular ShreddingBriquettingCompacting & draining machines that offer versatile waste processing options.
With Anhui Xuanya Machinery’s customizable shredding solutions, You can have the freedom to choose the right equipment for your operations.
But if sustainability is a priority, let’s explore Wiscon-Tech’s eco-friendly shredder machines for sustainable operations.

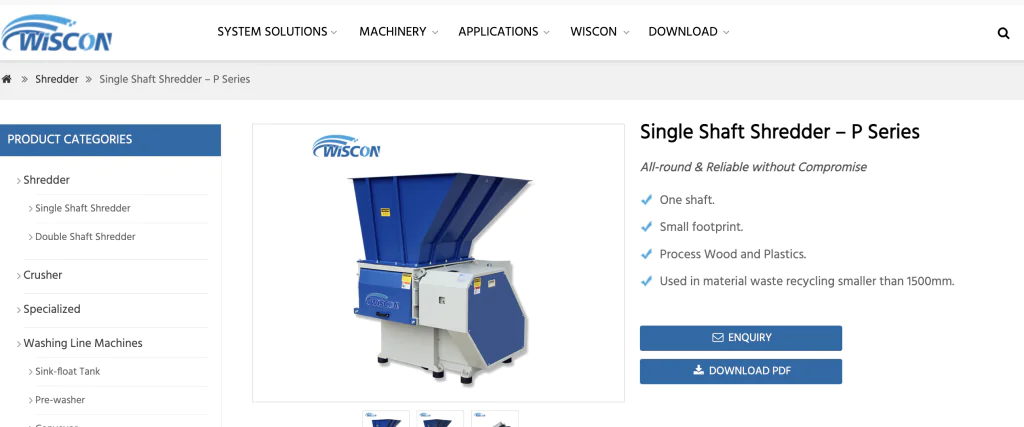

Wiscon-Tech: Eco-Friendly Shredder Machines for Sustainable Operations
I am amazed by the wide range of eco-friendly shredder machines offered by Wiscon-Tech, which provide sustainable operations for businesses. Their commitment to environmental responsibility is evident in their innovative designs and advanced technologies.
Wiscon-Tech offers a variety of shredders, including single-shaft shredders, multi-shaft shredders, granulators, and cutting mills, all aimed at recycling or disposing of waste materials. Their WT-120 for example, is a single-shaft shredder with a 500 mm rotor length, delivering efficient shredding capabilities. Additionally, their WT-150 shredder provides an energy-efficient solution for waste processing.
Wiscon-Tech also excels in briquetting and offers all types of briquette presses to transform residual materials into highly compressed briquettes. They’ve even partnered with the Precious Plastic Community for micro recycling projects.
With their wide range of machines and sustainable initiatives, Wiscon-Tech is a leading choice for businesses seeking eco-friendly shredding solutions.
Vecoplan LLC: Compact and Efficient Shredding Solutions
Vecoplan LLC offers compact and efficient shredding solutions that are perfect for businesses of all sizes. Their expertise in waste management and recycling allows them to provide top-notch machines that meet the needs of their customers.
Here are four key features of shredding solutions:
- Single-shaft shredders, multi-shaft shredders, granulators, and cutting mills for recycling or disposal.
- LLC-2.0: A single-shaft shredder with a 400 mm rotor length, designed for efficient shredding.
- LLC-3.0: An energy-efficient shredding solution that helps businesses reduce their carbon footprint.
- Shredding Briquetting Compacting & draining: popular machines offer comprehensive solutions for various waste processing needs.
With over 25 years of experience, Vecoplan LLChas sold over 40,000 machines globally. As a mid-sized family-owned company, they prioritize the circular economy and support sustainable initiatives like their Destroy Responsibly program.
Join Vecoplan LLC in achieving freedom from waste with our compact and efficient shredding solutions.

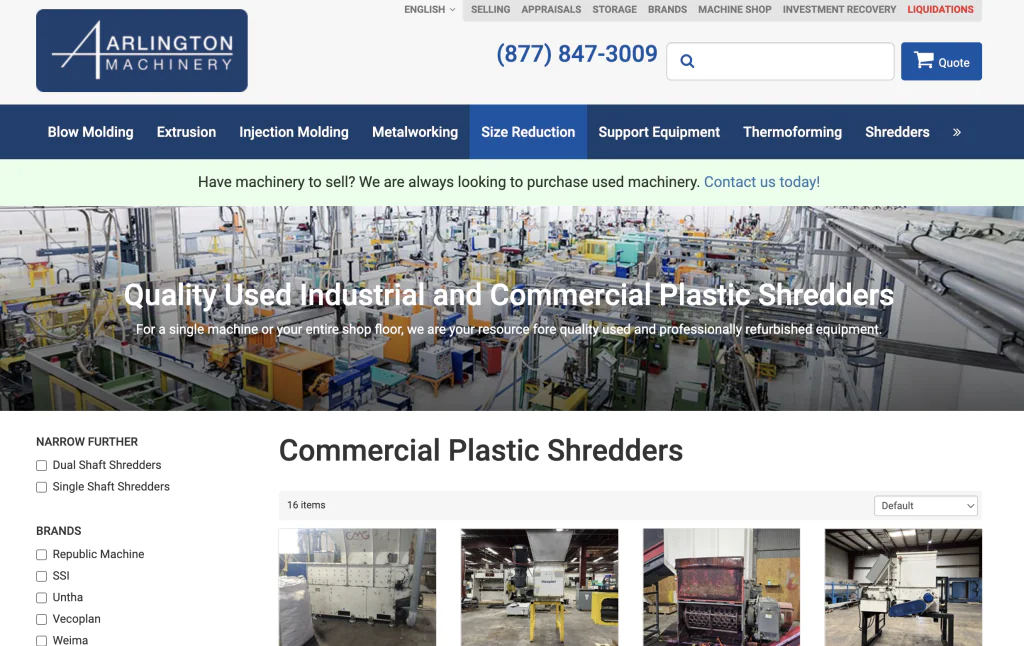

Arlington Machinery: Reliable and Versatile Single Shaft Shredder Machines
With over 1,200 machines delivered worldwide annually, Arlington Machinery offers reliable and versatile single shaft shredder machines that are perfect for various waste processing needs. These machines have been designed to provide efficient and effective shredding solutions, ensuring that waste materials are properly disposed of or recycled.
Arlington Machinery’s single shaft shredder machines are built with advanced technology and high-quality components, guaranteeing their durability and long-term performance. Whether you need to shred plastic, wood, paper, or other types of waste, Arlington Machinery has the perfect solution for you.
With their expertise in waste processing and commitment to customer satisfaction, you can trust Arlington Machinery to deliver exceptional results. Choose Arlington Machinery for reliable and versatile single shaft shredder machines that give you the freedom to handle waste processing with ease.
Conclusion
In conclusion, the top eight single shaft shredder machine manufacturers showcased in this article are revolutionizing waste management and recycling on a global scale.
These companies, including WEIMA, CMS, Nicety Machine, Arlington Machinery, Vecoplan, Wiscon, Genox, and Zerma, offer cutting-edge technology, high-quality solutions, and customizable options to meet diverse industry needs.
With their innovative approaches, commitment to sustainability, and advanced safety features, these manufacturers are driving the transformation towards a more efficient and environmentally-friendly circular economy.
