Extrusion pelletizing Line Manufacturer
Extrusion pelletizing machine
- Customizable Outputs from 150 - 1000 kg/h
- Advanced capabilities of automatic performance
- Processing units from 25 L/D to 30 L/D
- Custom of different extruder models available with screw diameters of 45, 60 and 75 mm Etc.
- Production High-Quality Granules Details
Satisfaction Guaranteed
1 Year Quality Warranty
On Time Delivery Guaranteed
OVERVIEW
The precision and versatility of our NICETY Extrusion pelletizing line allow processing materials like PP, PVC, PET, PE, HDPE, LDPE, PPR, WPC, PO, PLA, agglomeration etc into granules. To fully capitalize the power of our extruders, a complete range of accessories is available to build high-performance customised lines.

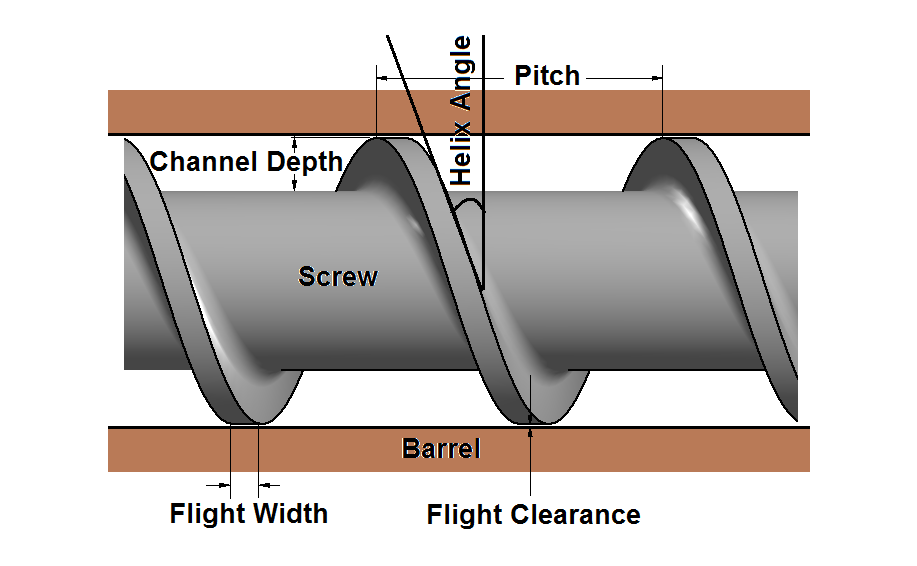

Screw design
The design of the screw will directly determine the quality of the plastic material during hot melt and plasticization.
Sliding Hopper
Automated sliding hopper for precise control of the extruder's work rate and stable feeding
Certified Reducers
All NICETY Extrusion pelletizing machines are equipped with certified reducer, providing long life and stable production.
Extrusion pelletizing line definitely needs a perfect screw
- Whether the design of the screw is reasonable or not, it directly affects the hot melt of plastic and the plasticizing process.
- The reasonable screw design and the temperature control equipment of NICETY extruder can achieve the uniform plasticization of plastic materials, and the final granules do not have burrs and air holes.
Extruder Mainframe
It’s suitable for PP PET PE film, HDPE LDPE and other plastic recycling.
The extruder is paired with quantitative feeder, vacuum exhaust system, multiple constant temperature zones with automatic temperature control and air cooling system. The agglomeration granulator provided by Nicety has the features of compact structure, simple operation, stable performance and high plasticization quality.
Screen changer
The screen changer can be used repeatedly. Nicety automatic hydraulic screen changers can be installed directly on the terminal of the barrel and connected to all our standard granulation heads.
Used to remove all contaminants from raw materials such as: PVC, PE, PP, PC, ABS and other recycled materials.

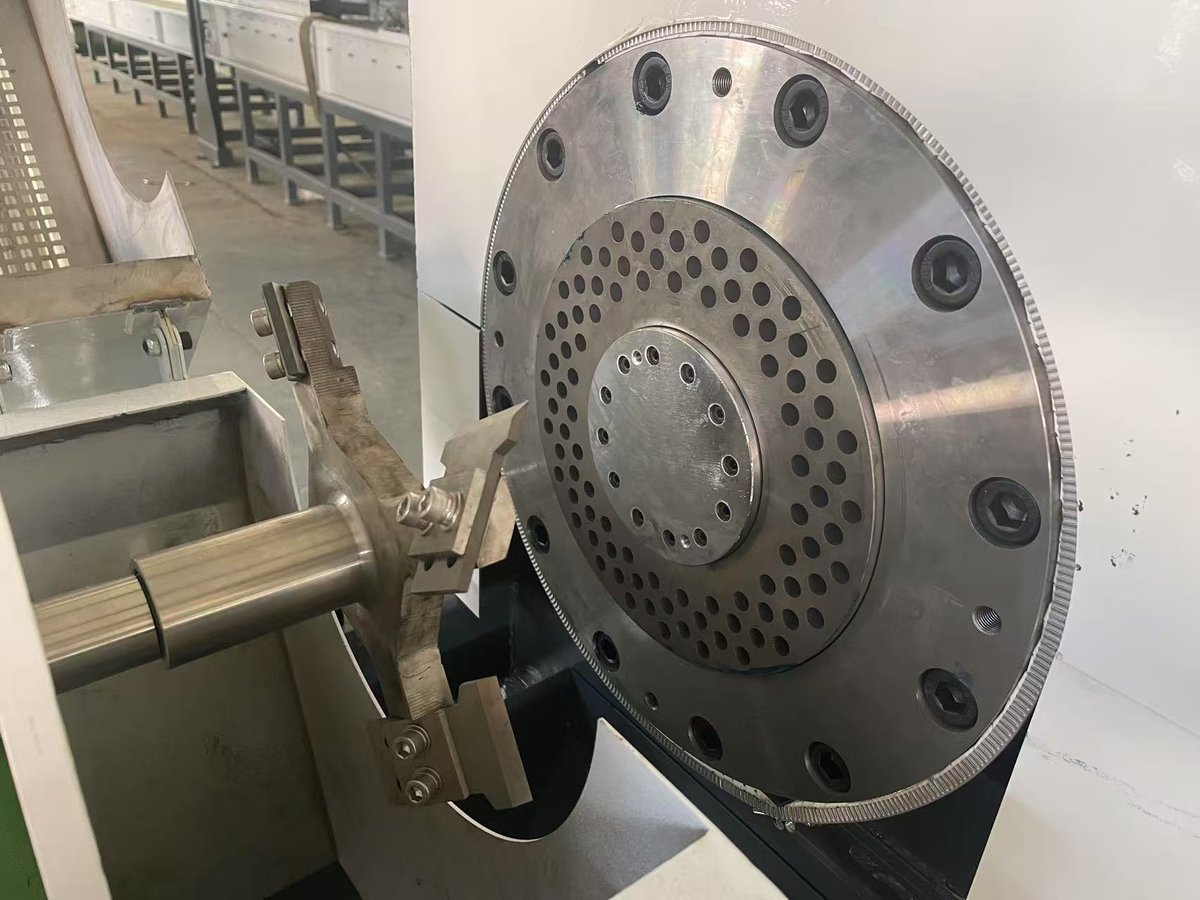

Granulation Head
Pelletizing or die heads units are used in strand pelletizing systems for extrusion of granules.
Nicety pelletizing heads are used to produce thermoplastic granules from recycled plastic flakes, both virgin and recycled granules.
Water cutting unit
Specially used for recycling polyethylene, polypropylene and other types of polymers.
Most basic pelletizing line manufacturers can only pelletize PP, EPS by pulling and cutting them. Nicety has overcome this technology perfectly and made it possible to apply water cutters to PP and EPS.
Dewatering unit
The moisture in the final granules is reduced to less than 2% through a vertical centrifugal dryer.
The material is dried by transferring the particles to a centrifugal drying chamber via a built-in screw conveyor, which uses centrifugal force to shake the material dry and lift it to the outlet.
Sieving unit
The final granules material are screened out by a vibratory sifter for uniform granule size. The larger size plastic granules will be collected additionally.
Blower & silo unit
The plastic granules are blown into the silo through the pipe under the action of the blower.
NICETY extruder pelletizing effect
Not only is the quality, robustness, and reliability of NICETY extrusion pelletizing lines outstanding, but the final granules produced are pure, contamination-free, and free of porosity, among other high-quality features.
Recycled HDPE granules
Recycled ABS granules
Recycled PVC granules
Plastic materials used in single screw extruders
Pure, Efficient, Quality, Powerful
CUSTOMIZABLE SPECS OF THE LINE
Building your line and boost your business
We can customize the extrusion pelletizing line to suit your requirements.
Customizable parts include, but are not limited to the following sections：
- Granules Materials Type
- Output /Capacity
- Finally Granules Shape
- Water-Cut Pelletizing
- Pultrusion Pelletizing
- Collection System
- Power Supply
How to get high quality recycled plastic granules
Several elements on how to obtain high quality plastic pellets through extrusion pelletizing line
If you want to produce high quality plastic granules by extrusion pelletizing machine, it is important to choose a plastic feedstock with as few recycling times as possible. The more times the plastic is recycled, the more impurities are involved in the batch.
Plastic materials with more moisture are not suitable for direct basic granulation. This will lead to a lot of pores on the surface of the Final plastic granules after hot melting, plasticizing, extruding, cooling and pelletizing.
We recommend that the moisture content of the raw material should not exceed 6%, thus avoiding the creation of air holes in the final plastic pellets.
Nicety extruders repeatedly emphasize that the design of the screw structure will be directly related to the melting, plasticization effect during the extrusion and pelletizing process.
The unreasonable screw structure will cause the plastic to be heated and denatured unevenly during the plasticizing process, which will eventually result in a large color difference and lower chemical and physical properties of the final pellets, thus making the quality of the plastic products using the recycled material worse.
If you need to ask more questions about the relationship between plastic pellets and extrusion pelletizers, you can contact NICETY’s technical staff. Our technical team will help you to choose the right single screw extruder or twin screw extruder for your production, depending on the type of plastic to be pelletized and the hardness of the plastic. We will also provide you with a one-on-one explanation of our production line.
