Say Goodbye to Costly Downtime with Our PET Extrusion Pelletizing Line
Manufacturer from China: NICETY Machinery Co., Ltd

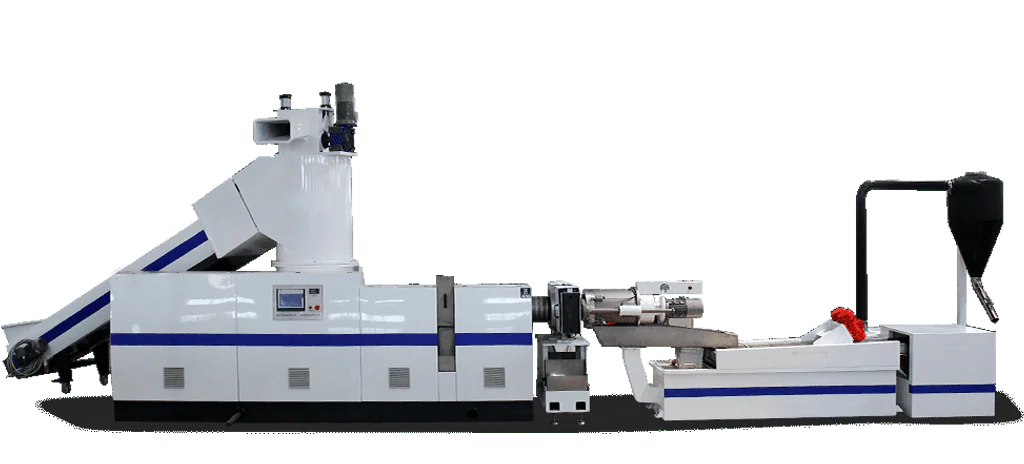

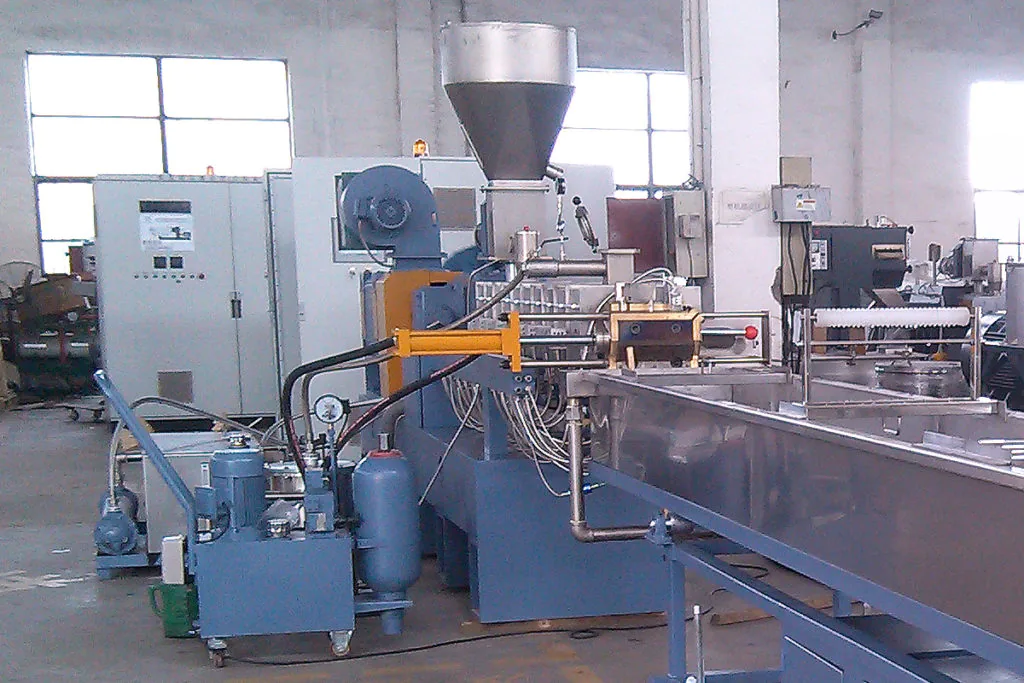

PET Plastic Flakes Pelletizing Line
Advanced Extrusion Pelletizing Line for Quality PET Pellet Production!
NICETY extruder screw made of W6Mo5Cr4V2A nitride treated alloy for better plasticisation
- Input: PET flakes (clean, dry and sorted)
- Output: high quality r-PET pellets
- Production capacity: 200-500 kg/h (depending on the model)
- Pellet size: 3-12 mm
- Power consumption: 100-200 kW/h (depending on the machine)
Table Of Contents For This Page
It is not easy to introduce all aspects of custom PET pelletizing extrusion system, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
General Applications For PET Granules
Elevate your product’s performance with top-notch PET pellets
Bottle & Cup

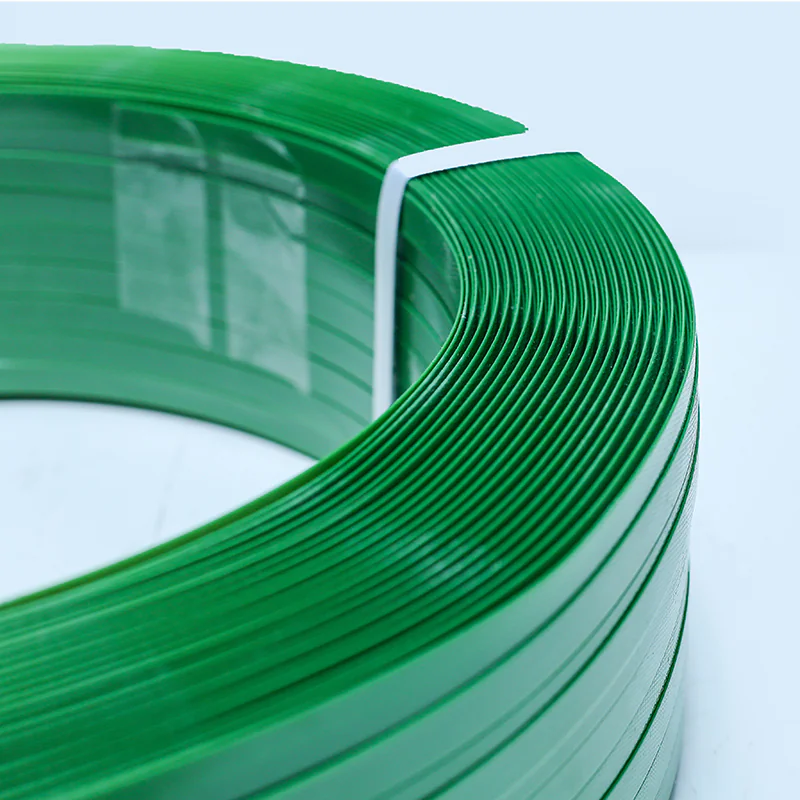

PET Strapping
PET Fiber
PET Fabric Textile
Tell Us What You Need And We'll tailor-make solutions
General Hot Selling Products
The result of years of NICETY production experience
Find the pelletizing line that fits your budget for your production requirements below and all our equipment comes with a 1 year warranty and lifetime after sales service

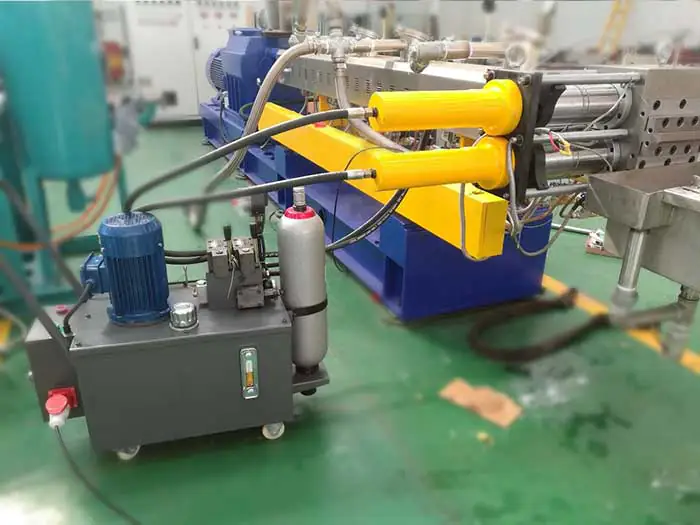

automatic net change Pelletizing Line
Automatically changing the filter screen, can improve production efficiency, reduce downtime for screen changes.
Manual net change Pelletizing line
It works by automatically changing the filter screen during the extrusion process to ensure a consistent product quality.

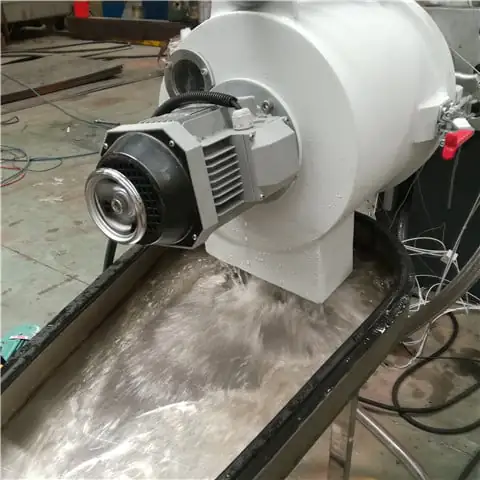

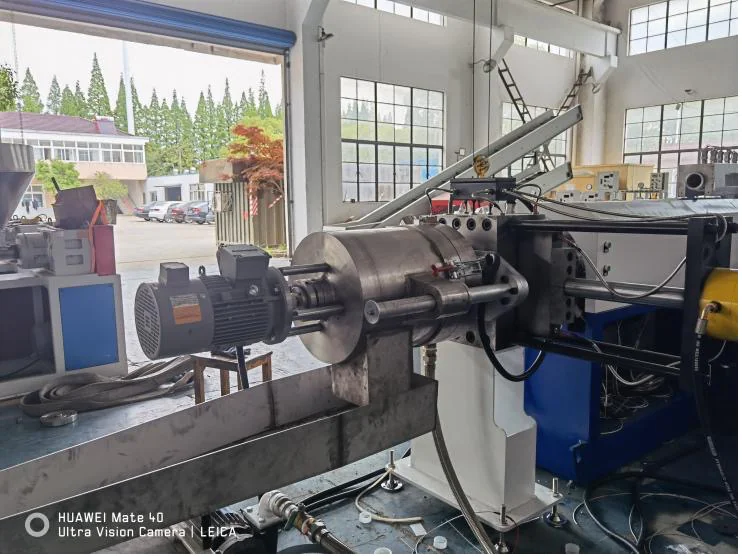

water-ring Pelletizing line
The melted PET material are extruded and cut into pellets by a rotating knife in a water-filled chamber.

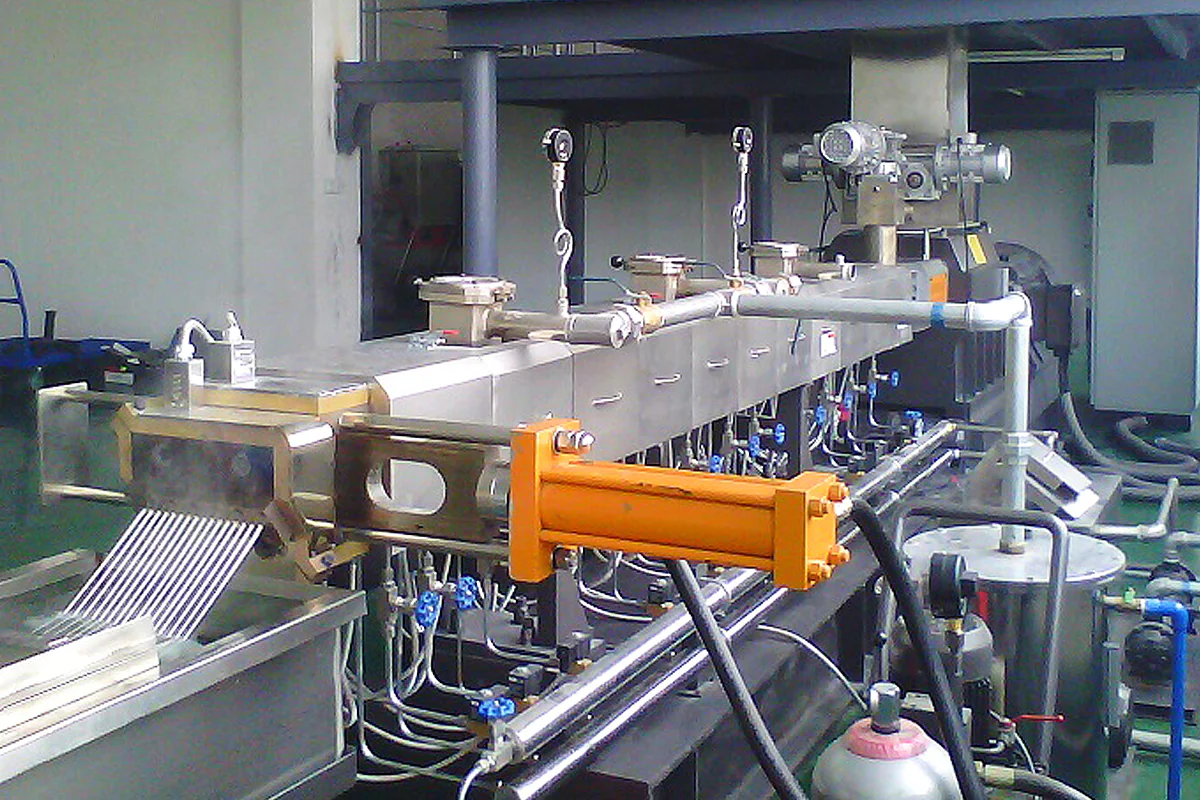

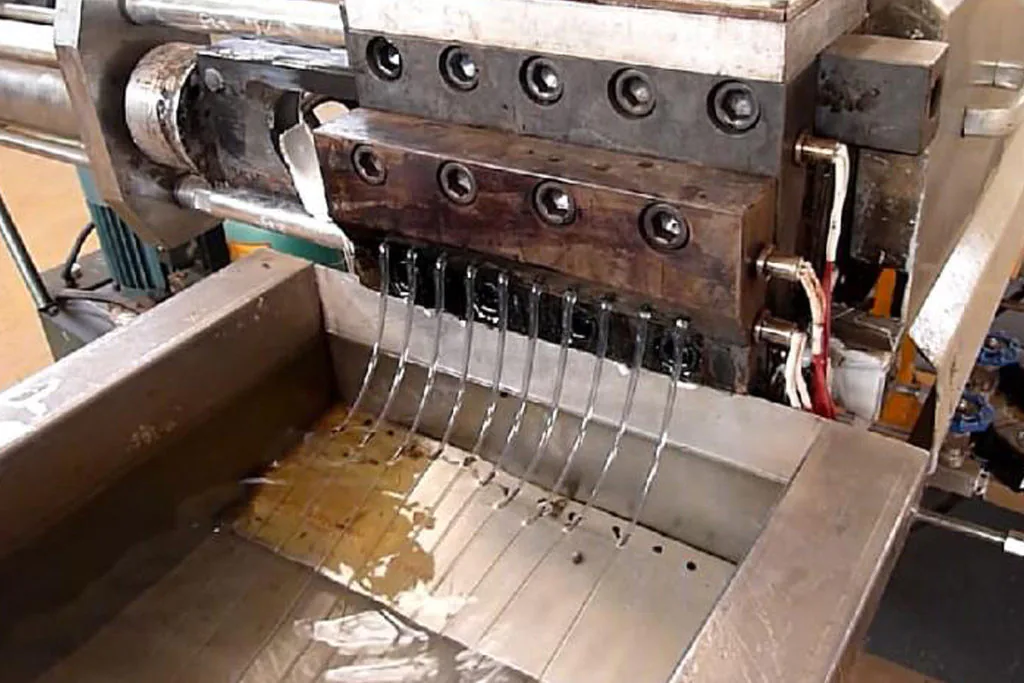

strand pelletizing line
PET material are melted and extruded into long, thin strands which are then cooled and cut into small, uniform pellets.

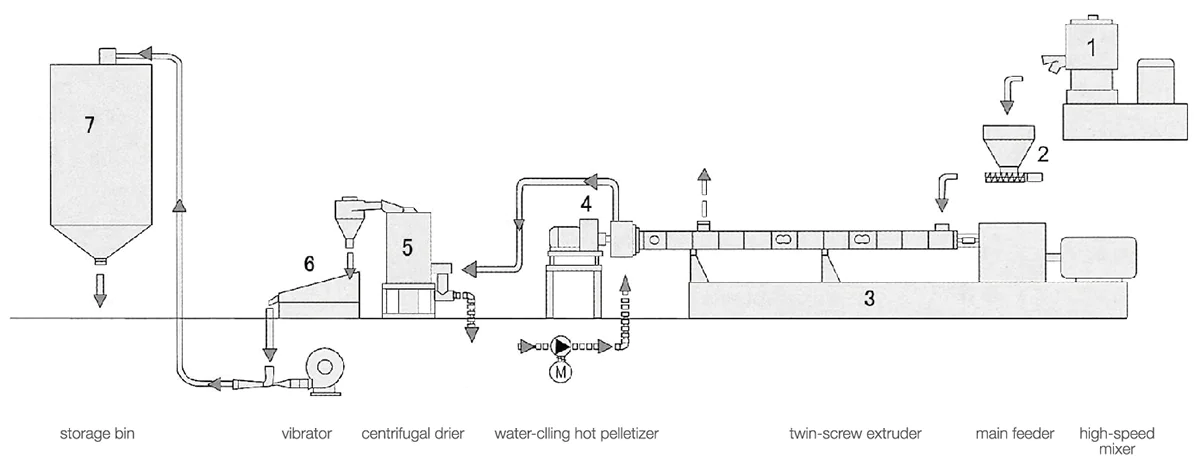

PET water-ring Pelletizing system Schematic
- Feeding system
- Twin-screw extruder
- Die plate
- Water ring pelletizer
- Drying system
- Vibratory screen& Collection silo
You can benefit from using the water-ring pelletizing system as it produces high-quality pellets with high production capacity and wide material compatibility, while being easy to operate and maintain with a compact design and reduced waste.
PET strand pelletizing system Schematic
- Feeding system
- Twin-screw extruder
- Die head
- Water bath or air cooling system
- Strand pelletizer
- Vibratory screen & Storage bin
The strand pelletizing system can help you produce high-quality pellets with wide material compatibility, high production capacity, and easy integration into production lines, leading to cost savings.
| Model | L/D | Screw Diameter | Power | Capacity |
|---|---|---|---|---|
|
NCJ50 |
24/48, 7/20 |
Φ50.2mm |
37-45KW/ 30-37KW |
100-150Kg/H |
|
NCJ65 |
24/48, 7/20 |
Φ62.4mm |
55-75KW/ 37-45KW |
150-200KG/H |
|
NCJ75 |
24/48, 7/20 |
Φ71mm |
90-110KW/ 45-55KW |
200-300KG/H |
|
NCJ95 |
24/48, 7/20 |
Φ93mm |
132-135KW/ 55-75KW |
300-500KG/H |
Estimated Cost Analysis For 500kg/h pET pelletizing system
Get an estimated cost analysis for a 500kg/h PET pelletizing system to help you make informed decisions on your investment and budget planning.
For holding and caching extrusion of plasticised materials.
$69,000
Take US as a example, Quisque libero metus, condimentum nec, tempor a, commodo mollis, magna. Etiam rhoncus. Donec posuere vulputate arcu. Donec mollis hendrerit risus. Proin viverra, ligula sit amet ultrices semper.
$32,000
For cutting extruded material into granular circulating water cooled granules.
$2,800
It is responsible for controlling and monitoring various aspects of the production line, including the extrusion process, pelletizing process, and other related functions.
$17,500NICETY: Assembly and Training Services
Expert Assembly and Training Services: Let Us Guide You to PET Pelletizing Success
Service 1: Service promise:
- 1 year warranty
- Lifetime after-sales service
- Spare parts supply according to customer files
We are committed to providing high-quality technical support services for PET extrusion pelletizing line and offer a comprehensive after-sales guarantee to ensure customer satisfaction.
Service 2: Pre-sales support
- Needs analysis and customized solutions
- Technical support before and after purchase
- CAD layout design based on your plant
Before you make a purchase, our technical support team is here to analyze your needs, provide customized solutions, and answer any technical questions you may have to help you make an informed decision.
Service 3: After-sales support
- Commissioning Before shipment
- Equipment Installation Drawings and Instruction
- Maintenance Guide
After your purchase, we will provide equipment installation and commissioning, operation guidance, maintenance and repair, and spare parts supply services to ensure your PET pelletizing line operates smoothly.
Service 4: Technical training
- Operating Instruction Manual
- Troubleshooting Guide
We offer technical training services for equipment operation, maintenance, and other related courses to help you maximize the efficiency and lifespan of your PET pelletizing line.
Want to improve or increase the productivity of your existing pelletizing line?
Our website includes PDF files of frequently asked questions related to PET extrusion pelletizing lines or systems and solutions to help you quickly find the assistance you need.
Unlocking the Mysteries of Extrusion Pelletizing Technology
The relationship between screw size and extruder machine
The size of the screw in an extruder is a critical factor in determining the throughput capacity and melting rate of the system. The screw diameter is measured in outside diameter and is typically between 0.75-10 inches, with popular sizes including 1.5″, 2.5″, 3.5″, 4.5″, and 6″.
The effective length of the extruder, typically 24-36 L/D, is the ratio of the length over the diameter of the screw.

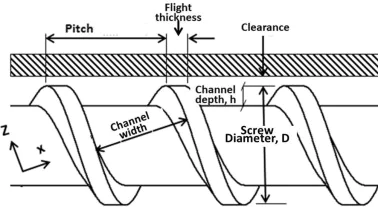

The influence of screw design on extruders
The design of a screw in an extruder is crucial for achieving the desired output and product quality. The design parameters include the flight depth, channel width, helix angle, and number of flights. The flight depth determines the amount of material that can be conveyed, while the channel width determines the residence time of the material in the extruder.
The helix angle affects the shear rate and mixing efficiency, while the number of flights affects the conveying capacity and compression ratio.
What materials are the screws made of?
- W6Mo5Cr4V2 (commonly known as HSS), which is a high-speed steel material with excellent wear resistance and toughness.
- 38CrMoAlA, which is a type of nitrided steel with good wear resistance, corrosion resistance, and high-temperature strength.
- 9Cr18MoV, which is a type of stainless steel material with high hardness, wear resistance, and corrosion resistance.
- GH113, which is a type of superalloy material with excellent high-temperature strength, corrosion resistance, and wear resistance.
- SKD61, which is a type of hot-work die steel with high toughness, wear resistance, and heat resistance.
The relationship between the raw material and the extrusion system
The material being extruded and the extruder itself have a significant impact on the extrusion process. Material properties such as viscosity, density, and melt flow rate need to be carefully considered when selecting an extruder and designing the screw.
For example, high-viscosity materials require screws with a larger pitch and deeper channels to ensure adequate conveying and mixing. On the other hand, low-viscosity materials may require a shorter pitch and shallower channels to prevent over-shearing and degradation
The FAQs About PET Pelletizing line
If I want to recycle PET, should I choose single screw or twin screw extruder?
PET extruders can be single or twin screw. Single screw extruders are usually used for the production of low viscosity PET, while twin-screw extruders are suitable for high viscosity PET. The choice of extruder depends on the characteristics of the PET product to be produced and the production efficiency.
What are the specific applications of high-viscosity PET and low-viscosity PET?
High-viscosity PET: used in the manufacture of bottles such as mineral water bottles, beverage bottles, cosmetic bottles, bottles for cleaning products, etc. High viscosity PET is also used for the production of fibres such as clothing, home textiles, technical textiles, etc.
Low-viscosity PET: used in the manufacture of various films, such as packaging films, cling films, plastic bags, coating films, etc. In addition, low-viscosity PET is used for the manufacture of optical materials such as optical films and reflective films.
How do I choose the material for the screw?
The choice of material for the screw depends on various factors, such as the type of polymer being processed, the processing conditions, the required output, and the budget. It is recommended to consult with a materials expert or a supplier to determine the most suitable material for a specific application. In general, higher-end materials such as W6Mo5Cr4V2A may offer better wear resistance and durability, but they also come with a higher price tag. Lower-cost materials like 38CrMoA1A may be suitable for certain applications but may require more frequent replacement due to wear and tear.
What is the required power supply for your PET extrusion pelletizing system?
Our PET extruder pelletizing system require a three-phase power supply of 380V/50Hz or 220V/60Hz or 480V/50Hz, depending on the power supply requirements of your plant.
What is the optimal temperature range for PET extrusion and pelletizing?
The optimal temperature range for PET extrusion and pelletizing typically falls between 240-280℃, although it can vary based on the specific material and processing conditions.
What is the expected lifespan of your PET extruder pelletizing system and its components?
The expected lifespan of our PET extruder pelletizing system and its components can vary depending on the specific model, frequency of use, and maintenance schedule. However, we use high-quality materials and precision manufacturing to ensure our machines have a long service life.
How do I properly maintain and clean the PET extruder?
Proper maintenance and cleaning of the PET extruder are essential for ensuring its longevity and reliable performance. This includes regular inspection and cleaning of the barrel and screw, as well as lubrication of the bearings and other components.
We will also provide a maintenance and cleaning checklist specific to your line configuration upon delivery of your line.
What is your lead time for production and delivery of your PET extrusion pelletizing system?
The production and delivery cycle of our PET extrusion pelletizing systems can vary depending on the specific configuration and customization requirements. Typically, it can range from 30 days to 90 days.
Can the PET extrusion pelletizing system be customized to my specific needs?
Yes, we can provide customized PET extrusion pelletizing systems based on your specific requirements and processing needs.
What technical support and after-sales service can you offer for PET extrusion and pelletizing systems?
We provide comprehensive technical support and after-sales service to ensure our customers get the most out of their PET extrusion pelletizing systems. This includes installation, commissioning, training, and ongoing support to help troubleshoot any issues or optimize performance.
What safety measures should be taken when operating the PET extrusion pelletizing system?
To ensure safe operation of the PET extrusion pelletizing system, it is important to follow all applicable safety guidelines and procedures. This includes wearing appropriate personal protective equipment, ensuring proper grounding and electrical safety, and following all operational and maintenance procedures as outlined in the user manual.
If your question is not listed, please email us right now.
NICETY: High-Quality PET Extrusion Pelletizing Machine Manufacturer
Our PET extrusion pelletizing system is made of top-quality materials to ensure maximum efficiency and durability.
Reliable PET pelletizing system manufacturer in China
Partner with us for high-quality plastic recycling equipment and unbeatable after-sales support！
- Certified by CE, ISO UL, CSA certification
- High quality, cost effective, low failure rate PET pelletizing line
- Professional after-sales service with quick response to your needs
At Nicety, we take pride in our global reach with customers in various countries, including the Middle East, Europe, North America, and South America. Our successful delivery solutions have earned us positive feedback from satisfied clients worldwide.
Plastic pelletizing system: the comprehensive guide
As plastic manufacturing companies continue to expand, so does the production of plastic waste. However, repurposing plastic waste is possible through the plastic pelletizing recycling system. This system converts plastic scraps into usable clean raw material in a closed-loop recycling process.
What is Plastic Pelletizing?
Plastic pelletizing is the process of converting scrap plastic into pelletized plastics. The process involves cutting plastic scraps into small pieces and heating them until they melt. The molten plastic is then passed through a die, which produces cylindrical pellets. These pellets can be reused as raw material in manufacturing plants, thereby reducing raw material costs.
Types of Pelletizers
There are different types of pelletizers, and the choice of pelletizing machine depends on the type of plastic scrap material and the quality of pellets needed. The different types of pelletizers include strand pelletizers, underwater pelletizers, and water ring pelletizers.
The strand pelletizer cuts molten plastic strands into pellets, while the underwater pelletizer submerges the plastic melt into water to cool and solidify the pellets.
The water ring pelletizer cools and solidifies the plastic melt in a ring of water before cutting it into pellets.
Difference Between Underwater Pelletizer and Water Ring Pelletizer
The main difference between the underwater pelletizer and water ring pelletizer lies in the cooling and solidification process.
The underwater pelletizer cools the molten plastic in water, which reduces the heat transfer process and allows for a better quality pellet.
The water ring pelletizer, on the other hand, uses a ring of water to cool and solidify the plastic melt.
Advantages of Pelletization
The main advantage of pelletization is the reduction of plastic waste.
Pelletization allows plastics manufacturers to realize their green initiatives by reducing waste and converting scrap plastic into high-quality materials that can be used in manufacturing processes.
Additionally, pelletization allows for easy storage, transportation, and handling of plastic pellets.
Disadvantages of Pelletization
The main disadvantage of pelletization is the cost of the pelletizing system, including the heating and cooling system, transmission system, and extrusion system.
Additionally, third-party services may be needed to attain high-quality materials. However, these costs can be offset by the savings in raw material costs and the environmental benefits of the recycling process.
Feed Size in Pelletization
The feed size in pelletization depends on the type of plastic scrap material and the type of pelletizing machine. Generally, the smaller the feed size, the better the quality of pellets produced.
Purpose of Pelletization
The purpose of pelletization is to convert plastic waste into usable clean raw material for manufacturing processes. Pelletization allows plastics manufacturers to reduce their environmental impact by reducing waste and reusing materials.
Difference Between Pelleting and Extrusion
Pelleting and extrusion are similar processes, but they differ in the form of the end product. Pelleting produces cylindrical pellets, while extrusion produces plastic film or other shapes.
Pelleting is ideal for converting scrap plastic into raw material for manufacturing processes, while extrusion is ideal for producing plastic packaging or other products.
Factors that Determine the Quality of Pellets
The quality of pellets is determined by several factors, including the type of plastic scrap material, the type of pelletizing machine, and the heating and cooling system used.
Additionally, the quality of pellets can be affected by the transmission system and the extrusion process. It is essential to work with a reputable plastic pelletizing company that values the quality of their products and the satisfaction of their customers.
Conclusion
When selecting a custom plastic pelletizing system, it is essential to consider factors such as the transmission system, extrusion process, heating and cooling system, and third-party services offered by the manufacturer.
Many plastic pelletizing companies, including Nicety, offer custom plastic pelletizing systems that can be tailored to meet the needs of plastics manufacturers.
