1) Why blade material matters in plastic crushing
Plastic crusher blades operate in a mixed-mode failure environment:
- Abrasive wear from fillers (CaCO₃, glass fiber), pigments, and dirt/sand contamination
- Adhesive wear / galling when plastics smear under heat and pressure
- Impact and chipping from thick sprues, hard lumps, intermittent feeding, or tramp metal
- Thermal fatigue from repeated temperature swings
- Corrosion / pitting in wet wash lines, chemical cleaning, or outdoor-stored scrap
A wrong material may look acceptable early on, then quickly degrade into rapid dulling, edge micro-chipping, frequent regrinds, and eventually cracking. The “best” blade material is rarely the hardest—it’s the one that balances wear resistance + toughness + heat-treatment stability + sharpenability + cost per ton processed.
2) Key performance targets for crusher blades
When comparing blade materials, prioritize:
-
Edge stability (micro-chipping resistance)
The edge fails first; micro-chips become crack starters. -
Abrasive wear resistance
Driven largely by carbide type/volume and hardness—critical for filled plastics. -
Toughness (impact resistance)
Essential for thick parts, variable feed, and unknown contamination risk. -
Hardness range and temper stability
Blades warm up; steels that soften in service wear exponentially faster. -

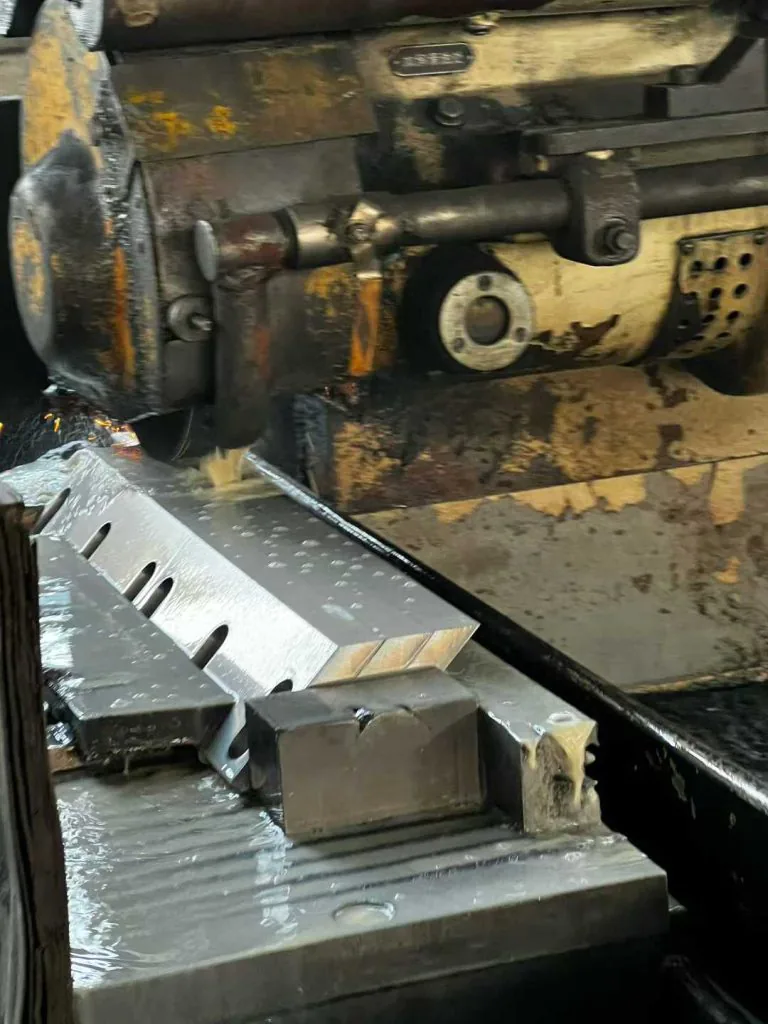

Sharpenability and regrind life
If grinding is slow or causes burns, downtime can dominate lifecycle cost. -
Corrosion resistance (when needed)
Required for wet recycling, wash lines, or aggressive additives.
3) The “hardness trap”: why “harder” is not always “better”
Increasing hardness alone often backfires:
- Higher hardness commonly reduces toughness → more chipping, especially at corners.
- Some steels get hardness via brittle carbide networks → great wear, poor shock resistance.
- On large knives, heat-treatment gradients can amplify residual stress → distortion or cracking.
A more reliable strategy is: choose the correct steel family, then optimize heat treatment + edge geometry + surface engineering.

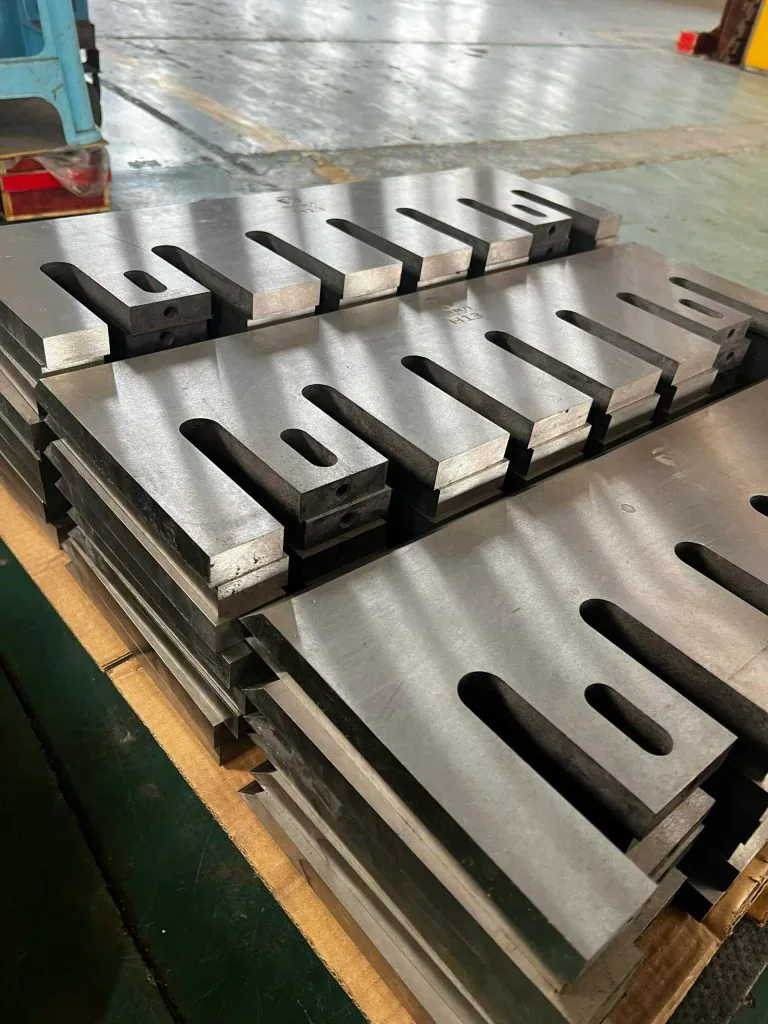

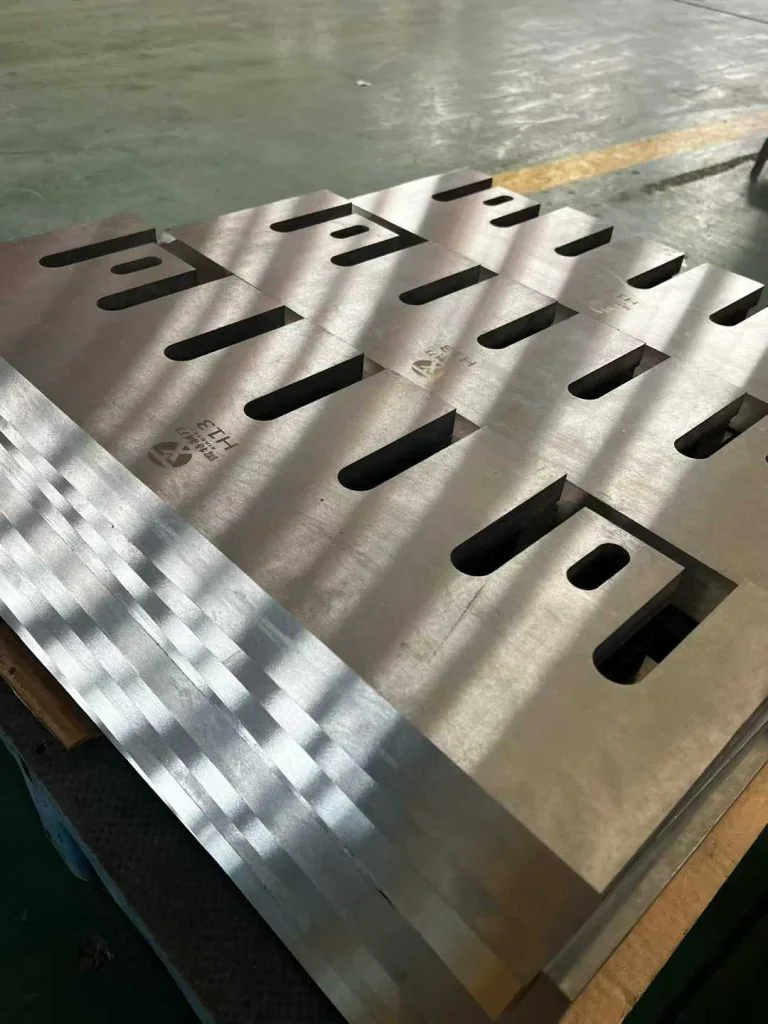

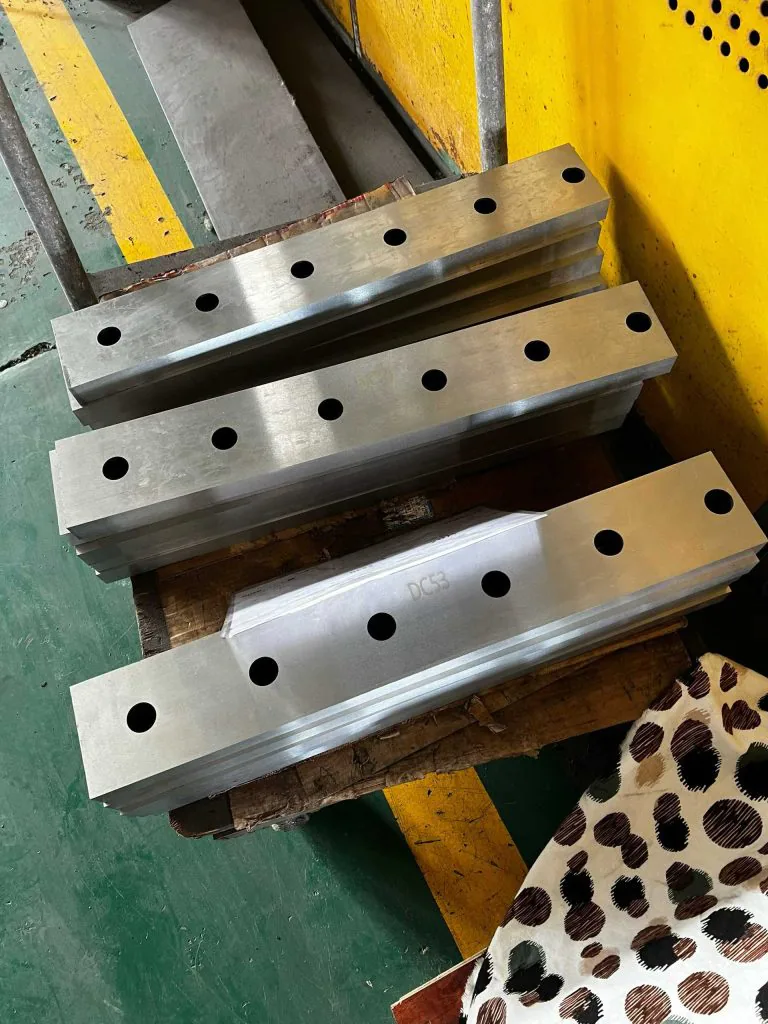

4) Common blade materials and where they fit best
A) D2 / SKD11 (high-carbon, high-chromium cold-work tool steel)
Typical use: general-purpose crushing with moderate cleanliness; a common industry baseline.
Strengths
- High wear resistance from high carbide content
- Good dimensional stability after proper heat treatment
- Widely available with predictable performance
Limitations
- Only moderate toughness → can chip in impact-heavy or dirty feed
- Heat-treatment quality strongly affects brittleness and carbide morphology
Best for
- Rigid plastics and sprues/runners with low-to-medium impact
- Clean-to-moderately clean regrind streams
Practical hardness target
- Often ~58–61 HRC, adjusted for knife thickness and contamination risk.
B) H13 / 1.2344 (hot-work tool steel)
Typical use: shock-heavy conditions where chipping dominates failure.
Strengths
- Excellent toughness and thermal fatigue resistance
- More forgiving under impact and intermittent loading
- Strong temper resistance (property stability at elevated temperature)
Limitations
- Lower abrasion resistance than D2 under high filler content
Best for
- Large granulators, thick runners/purgings, hard lumps
- Operations where edges chip before they wear out
Practical hardness target
- Often ~50–56 HRC depending on design and duty cycle.
C) M2 and other High-Speed Steels (HSS)
Typical use: better wear than D2 with usable toughness and improved hot-hardness.
Strengths
- High hardness with improved hot-hardness (“red hardness”)
- Good edge stability in many plastics at higher throughput
Limitations
- Higher cost and more demanding heat treatment
- Still sensitive to geometry and contamination-driven impact
Best for
- Higher throughput lines and longer continuous runs
D) Powder Metallurgy (PM) tool steels (e.g., CPM-class grades)
Typical use: premium solution for abrasive fillers and high tonnage economics.
Strengths
- Fine, uniform carbides → excellent wear + improved toughness vs conventional high-carbide steels
- Better edge stability and more consistent regrind life
Limitations
- Higher material cost; requires capable suppliers and controlled heat treatment
Best for
- Glass-filled plastics, mineral-filled compounds
- Production where downtime and blade changes are expensive
E) Stainless tool steels (martensitic stainless and corrosion-resistant tool steels)
Typical use: wet, corrosive, or chemically aggressive environments.
Strengths
- Corrosion resistance reduces pitting that destroys edge integrity
Limitations
- Wear resistance may be lower than D2/PM options unless using specialized grades
Best for
- Wash lines, wet recycling, salt exposure, strong cleaning chemicals
F) Tungsten carbide (solid or brazed inserts/segments)
Typical use: extreme abrasion where impact risk is controlled.
Strengths
- Exceptional abrasive wear resistance
Limitations
- Brittle; impact can crack inserts
- Higher cost and specialized grinding/repair needs
Best for
- Highly abrasive, relatively stable/clean feed streams
- Often best as inserts/segments rather than full solid knives
5) Matching material to plastic type and contamination level
Think in “wear vs impact” zones:
-
Clean, low-filler plastics (PE/PP/ABS without heavy filler):
D2/SKD11 is typically sufficient; shift to H13 if chipping occurs. -
Mineral-filled (CaCO₃) or glass-filled compounds:
PM steels or carbide strategies; D2 may wear too fast. -
Recycling with unknown contamination (sand, metal specks):
Prioritize toughness (H13 or tougher PM grades) and conservative edge geometry. -
Wet/wash operations:
Consider stainless tool steels or corrosion-protected systems.

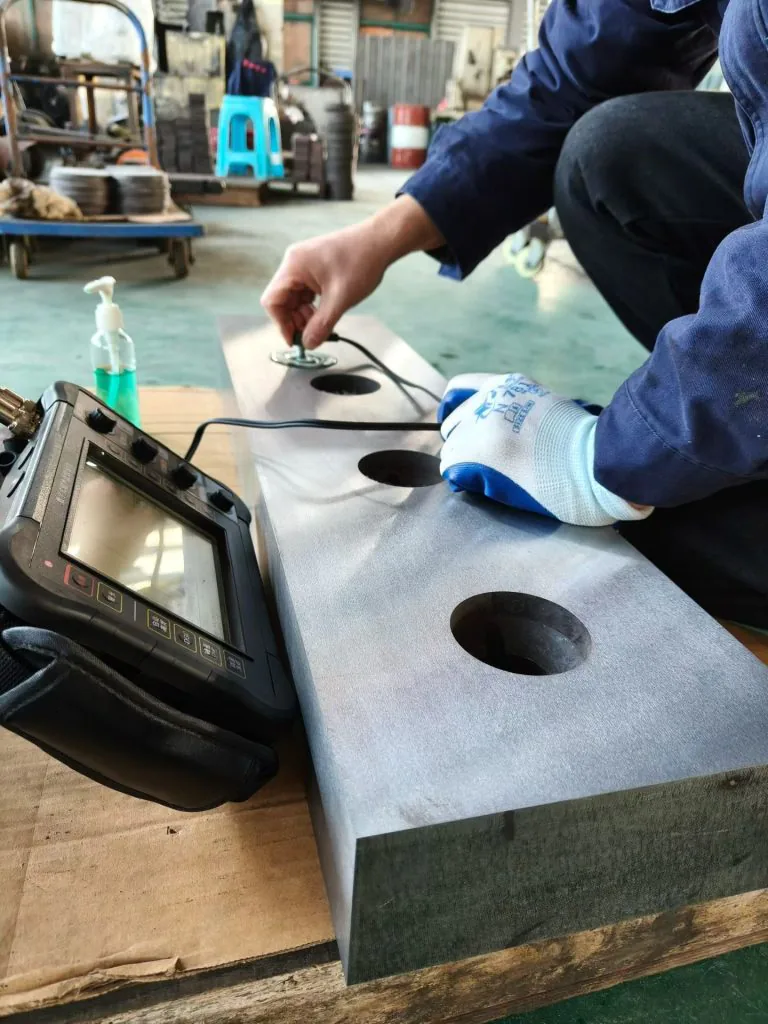

6) Heat treatment: the real “material” you are buying
Two knives made from the same steel can behave very differently. Key drivers:
- Austenitizing temperature and soak control
- Quench method and cooling uniformity (critical for large blades)
- Tempering cycle control (count, temperature accuracy, duration)
- Optional cryogenic treatment to reduce retained austenite (application-depend)
