PET Bottle Washing Line
Say Goodbye to Costly Downtime with Our PET Bottle Washing Line
The most quality-assured and after-sales service manufacturer of recycling lines in China – NICETY Machinery Co., Ltd

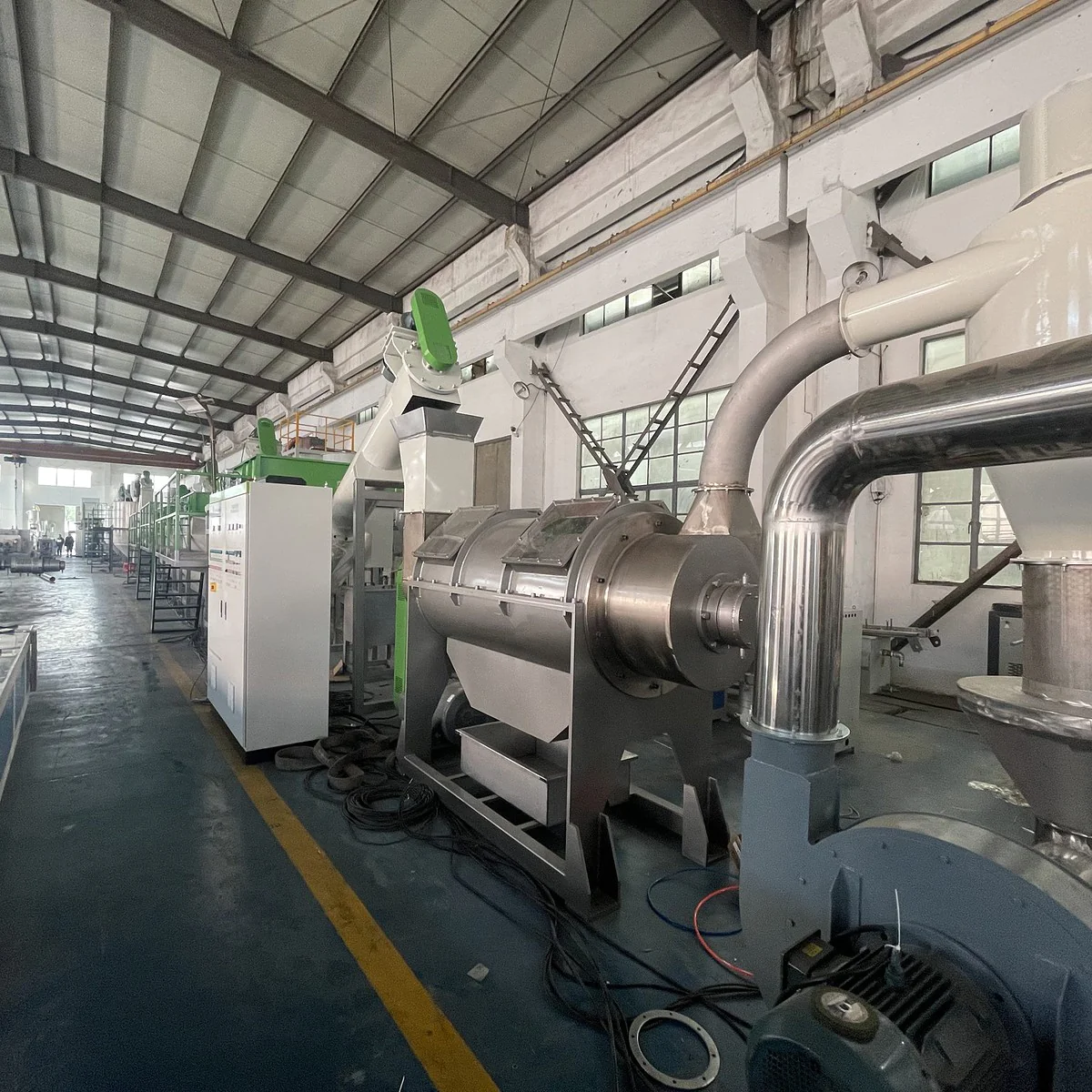

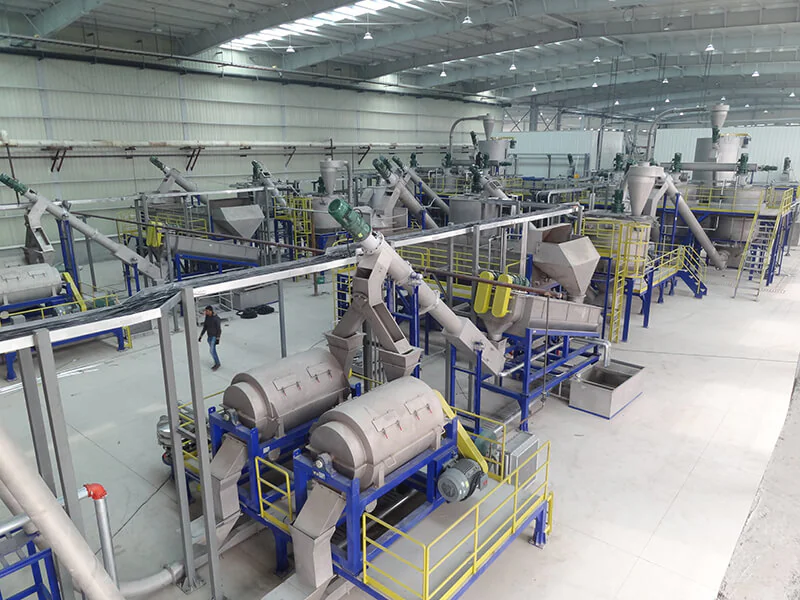

PET Bottles Washing Line
Advanced Plastic Washing Recycling Line for Quality PET Flakes Production!
Revolutionize your PET recycling process with NICETY’s PET bottle washing line
- Input: PET bottles
- Output: high quality, pure, and clean PET flakes
- Hot washing & cold washing options
- The perfect combination of colour sorter, material sorter and washing line
- Production capacity: 500-6000 kg/h (depending on the model)
- Pellet size: 3-12 mm
- Power consumption: 100-500 kW/h (depending on the machine)
| Capacity | Workshop(L*W*H) | Manpower | Water supply (rInner circulation) | Installed power(KW) |
|---|---|---|---|---|
|
500kg/hr |
42m*5m*5m |
2-3 workers |
3-4ton/hr |
180-210kw |
|
1000kg/hr |
85m*5m*5m |
4-5 workers |
4-5ton/hr |
210-260kw |
|
2000kg/hr |
110m*6m*6m |
5-6 workers |
6-8ton/hr |
400-480kw |
|
3000kg/hr |
125m*6m*6m |
6-8 workers |
10-12ton/hr |
600-670kw |
|
5000kg/hr |
130m*8m*6.5m |
8-10 workers |
12-15ton/hr |
920-1200kw |
Table Of Contents For This Page
It is not easy to introduce all aspects of custom PET bottle washing line, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
PET bottles as material For Our Washing Line
Whatever The Condition of Your PET Bottles
Bulk with labels
Dirty with impurities
With other materials
Compression strapped
After processed

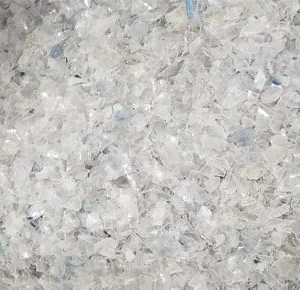

Moisture content < 1%
Impurities <150ppm

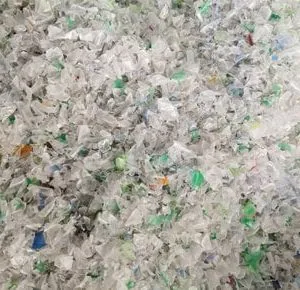

500-5000kg/hr Production

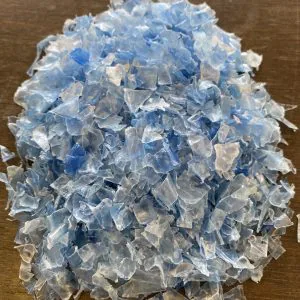

Flake size in 12-16mm

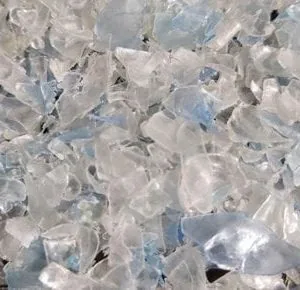

You will end up with pure, uniformly coloured, dry, high-quality PET flakes.
Tell Us What output you Need And We'll tailor-make solutions
General Hot Selling Products
The result of years of NICETY production experience
Find the PET bottle washing line that fits your budget for your production requirements below and all our equipment comes with a 1 year warranty and lifetime after sales service
PET bottle cold washing line
PET bottle cold washing line is a recycling line that uses cold water to wash and remove impurities from the surface of plastic bottles during the recycling process to finally obtain clean, dry PET flakes.

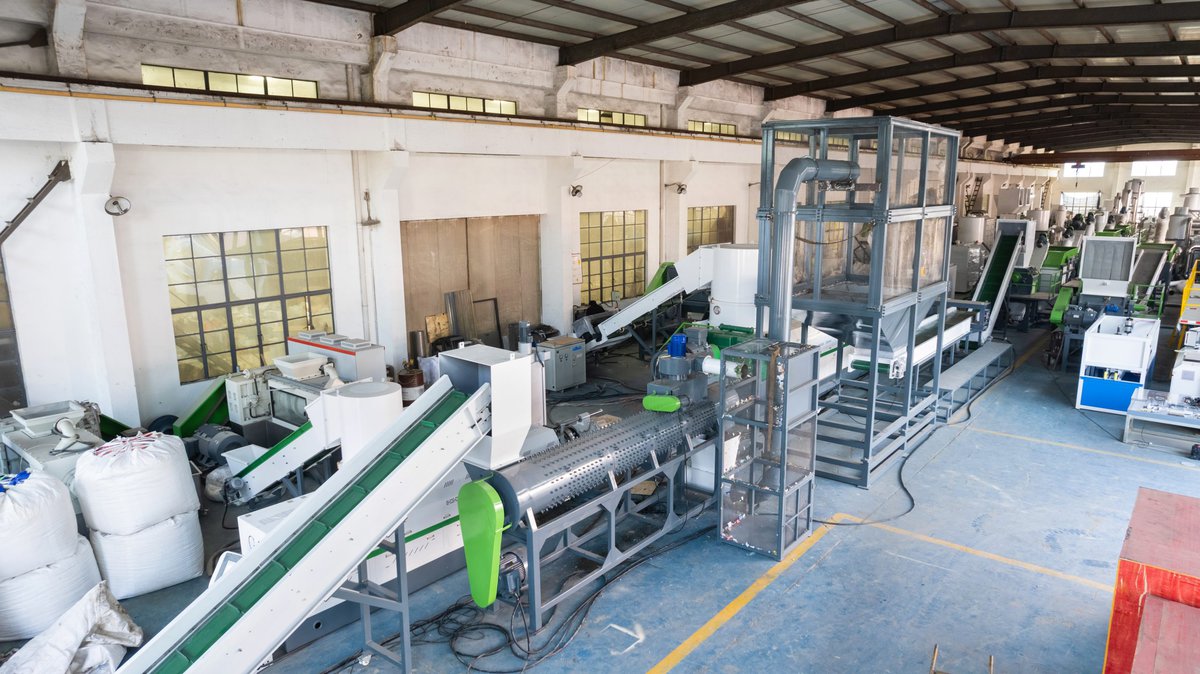

PET bottle hot washing line
PET bottle hot washing line is a recycling line that cleans plastic bottles using hot water during the recycling process to further remove impurities and ensure high-quality final PET flakes.

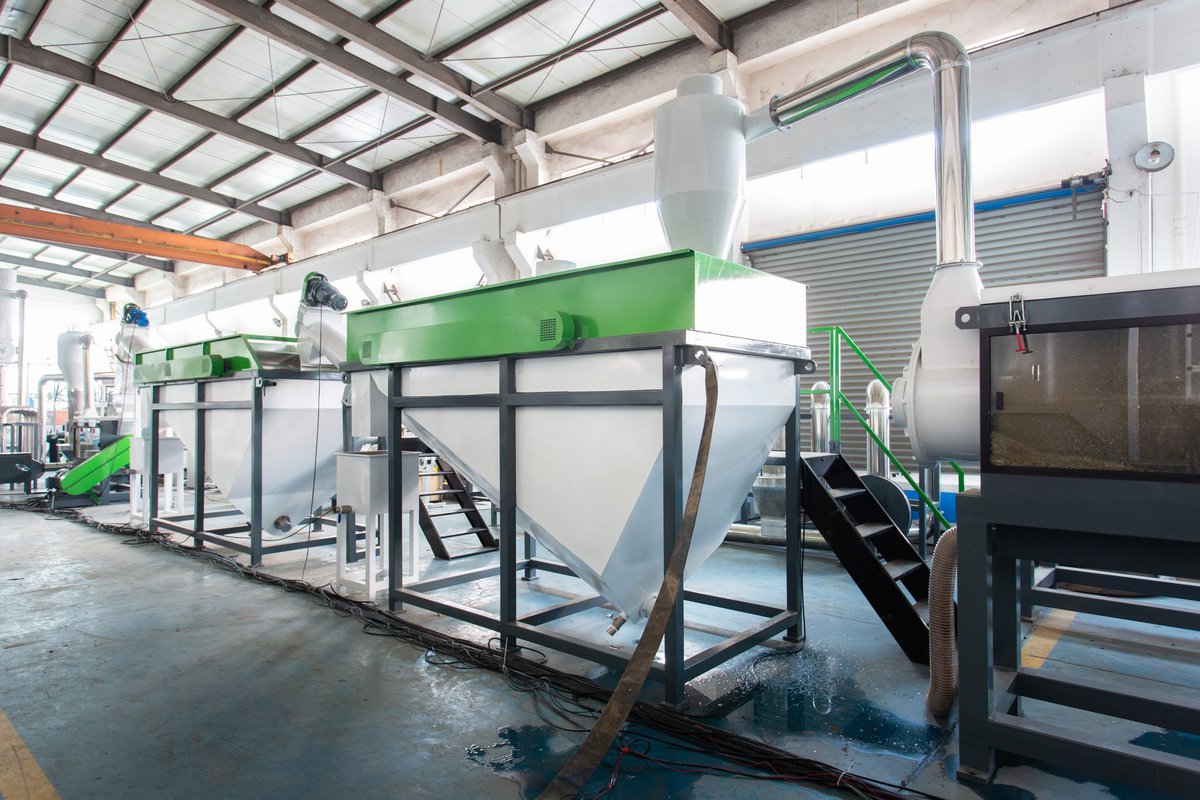

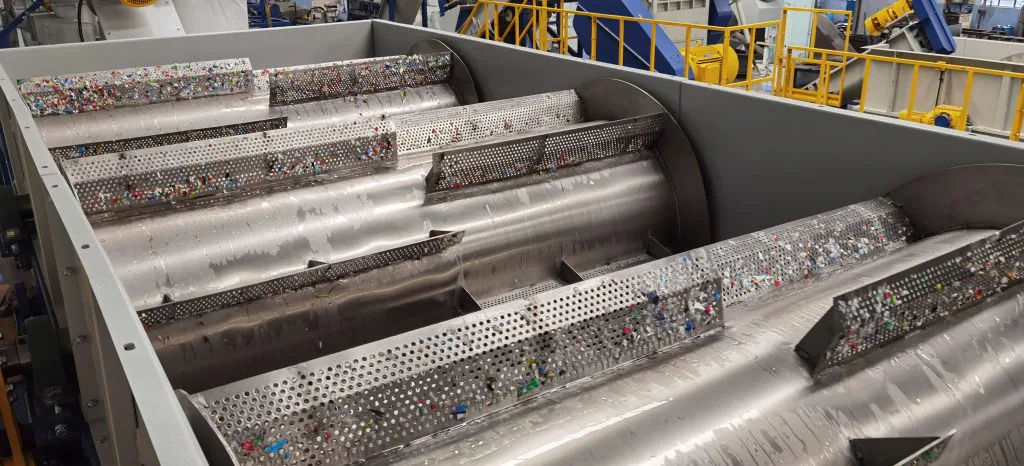

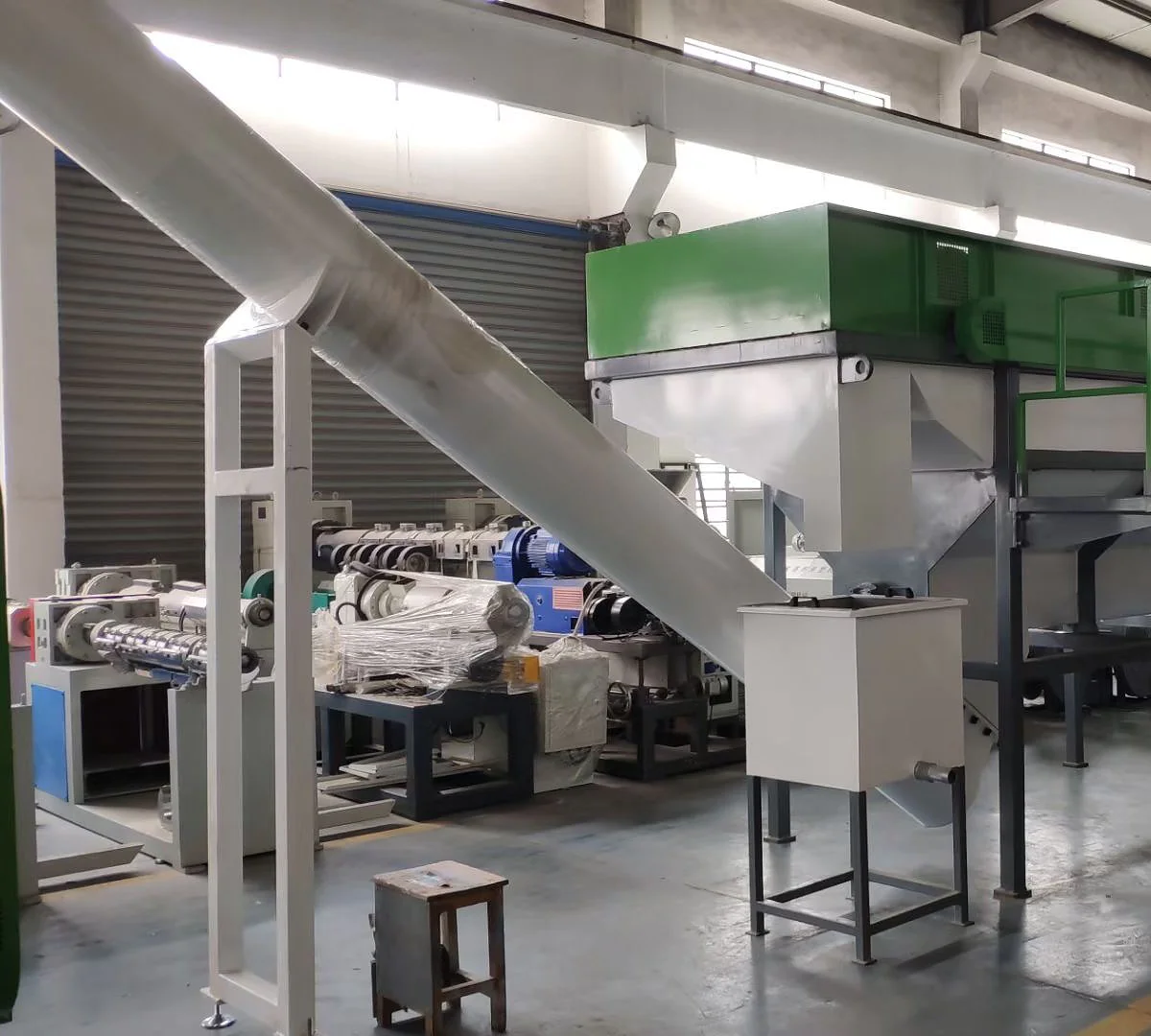

floating Tank - cold washing device
- Design Structure: The tank is a rectangular shape, rust-resistant and has specific depth and width measurements with 304 SUS as material.
- Water Circulation System: : The floating tank uses water to clean bottles and remove dirt. It has a system that keeps the water moving so that it stays clean and does a good job.
- Water Level Control: The floating tank has a water control system for optimal separation.
The floating tank allows PET bottle flakes to be immersed in water, where impurities such as plastic caps flakes, labels flakes, and dirt float to the surface, facilitating their subsequent separation and disposal.

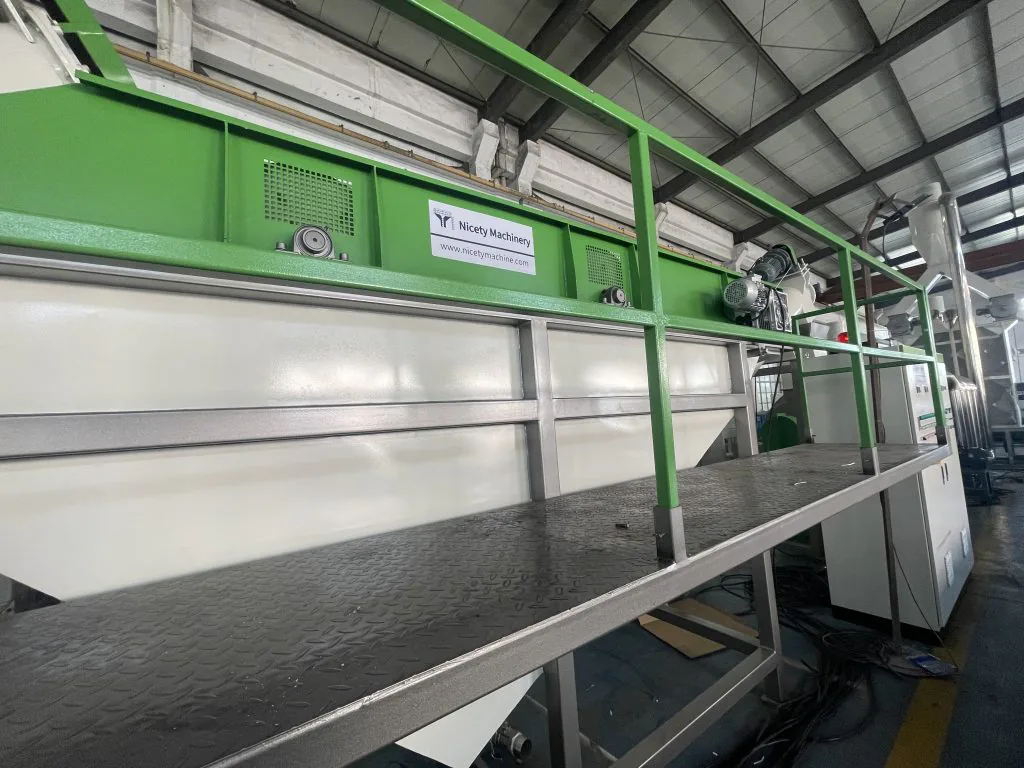

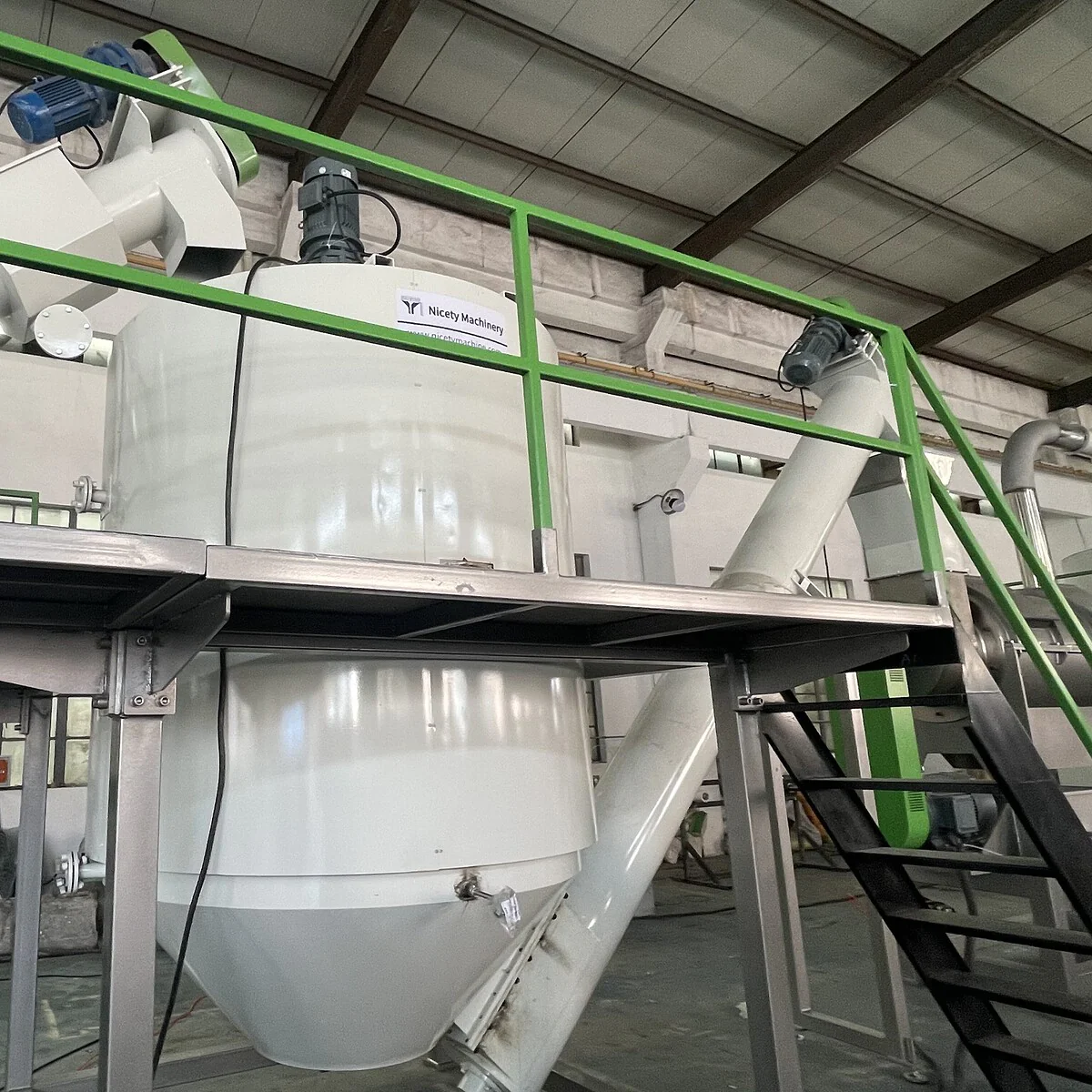

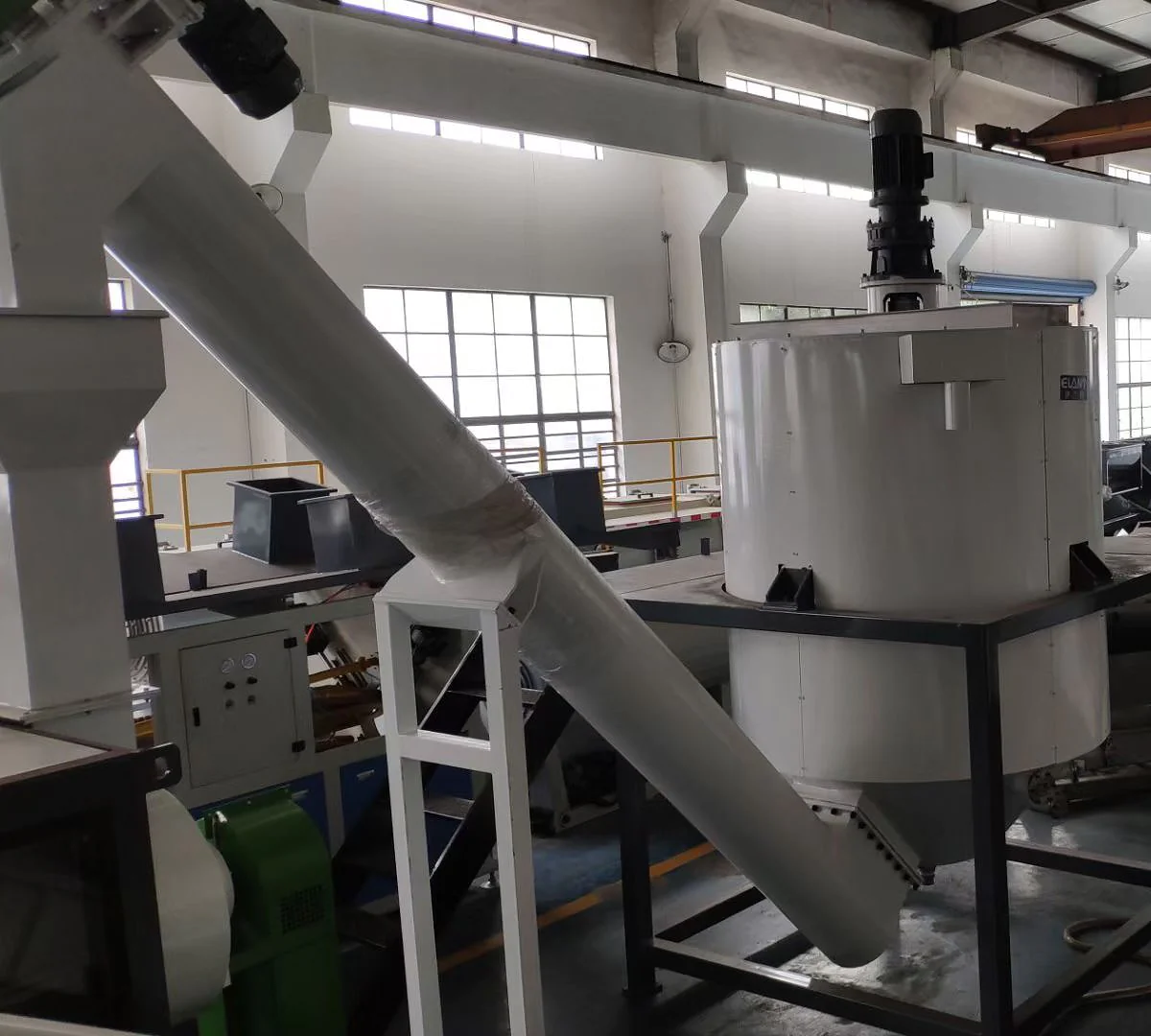

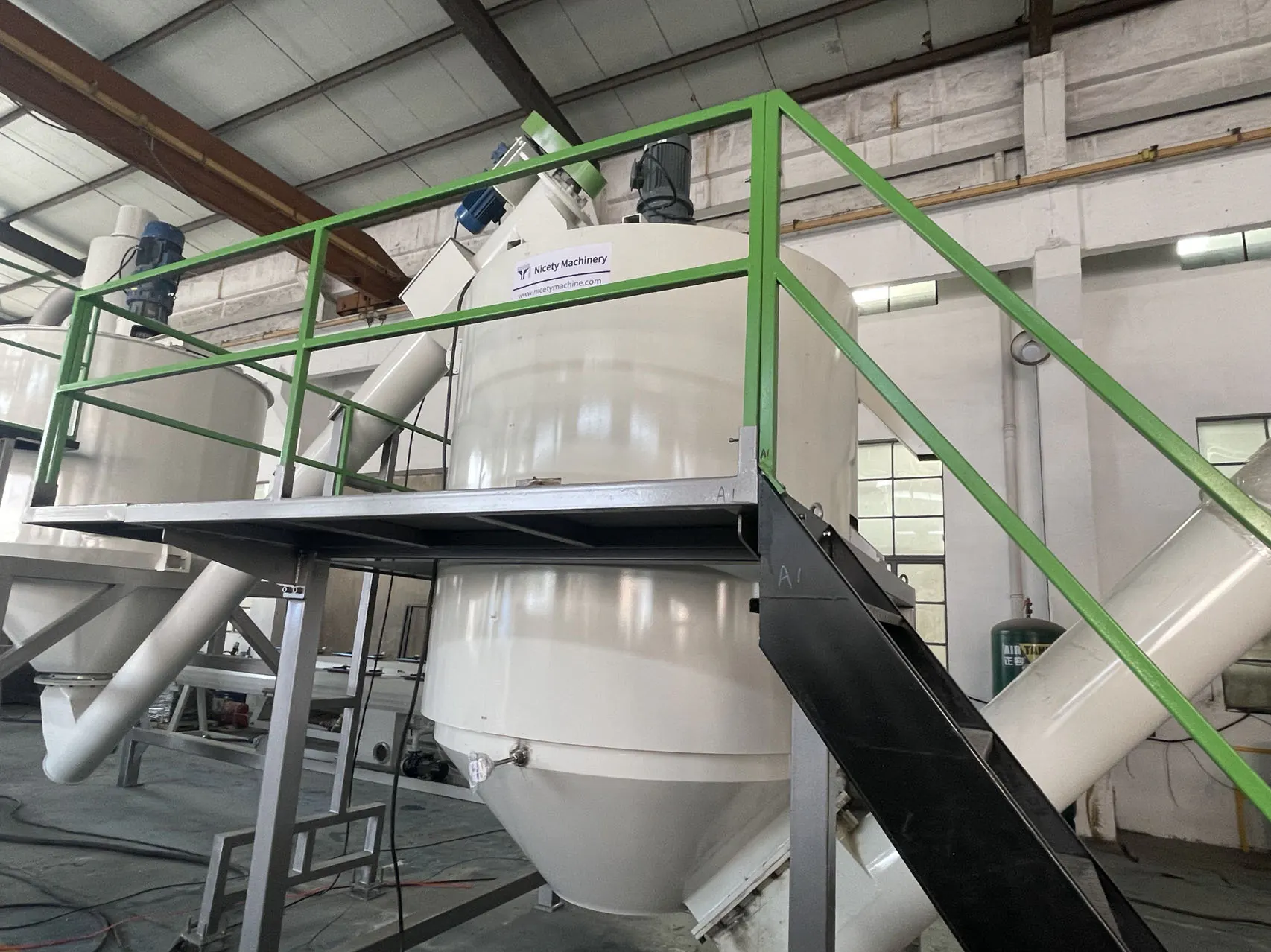

Hot wash steamer - Hot washing device
- Heating system: Provides high-temperature water or steam.
- Temperature control: Maintains appropriate temperature range.
- Spray system: Evenly distributes heated water or steam.
- Circulation system: Allows water or steam to circulate for thorough cleaning.
- Discharge and recycling: Handles wastewater and meets environmental requirements.
The hot washing equipment in a PET bottle washing line functions to remove stains, grease, and organic contaminants from the surface of PET bottles through the use of heated water or steam, improving cleanliness and hygiene.
Let's Reference our PET bottle hot washing line list
Learn about the entire process from PET bottles to pure PET flakes and the equipment required

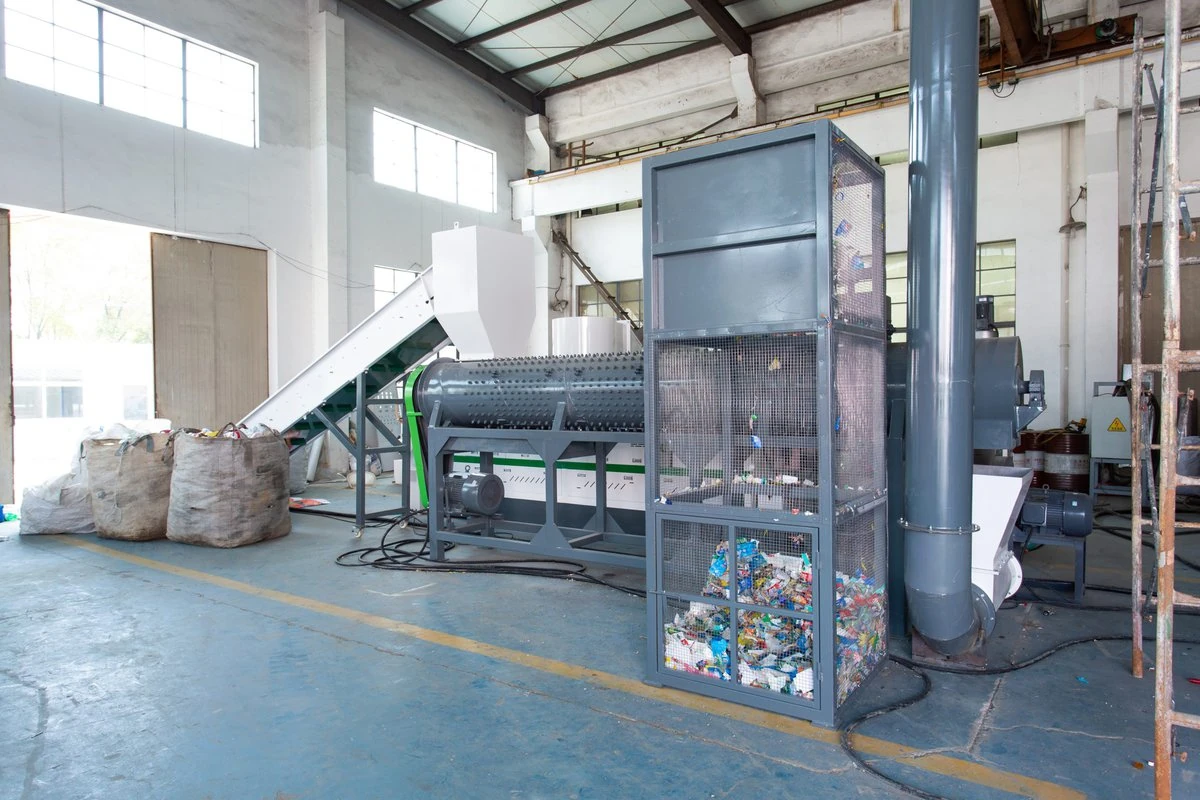

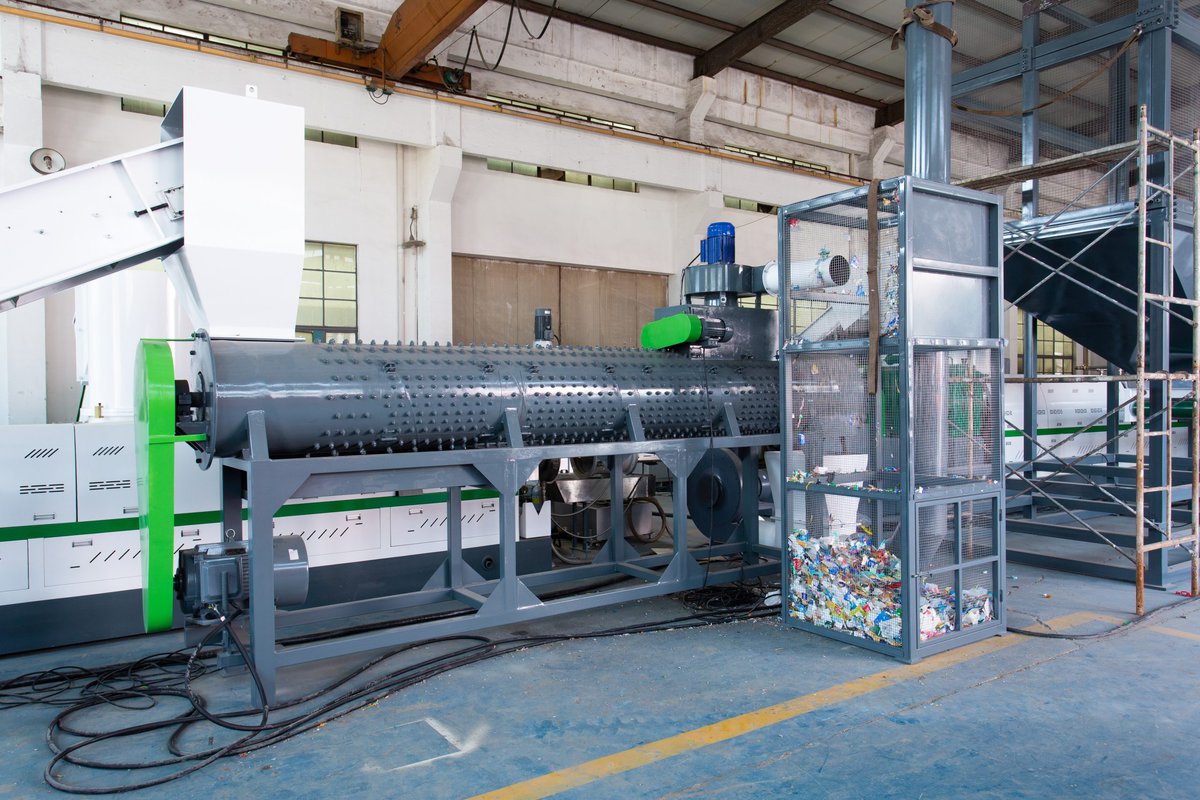

A Label Scraping Machine removes labels from plastic bottles so they can be cleaned and recycled properly. It uses special parts to separate the labels gently. The labels are then collected separately for disposal or recycling.

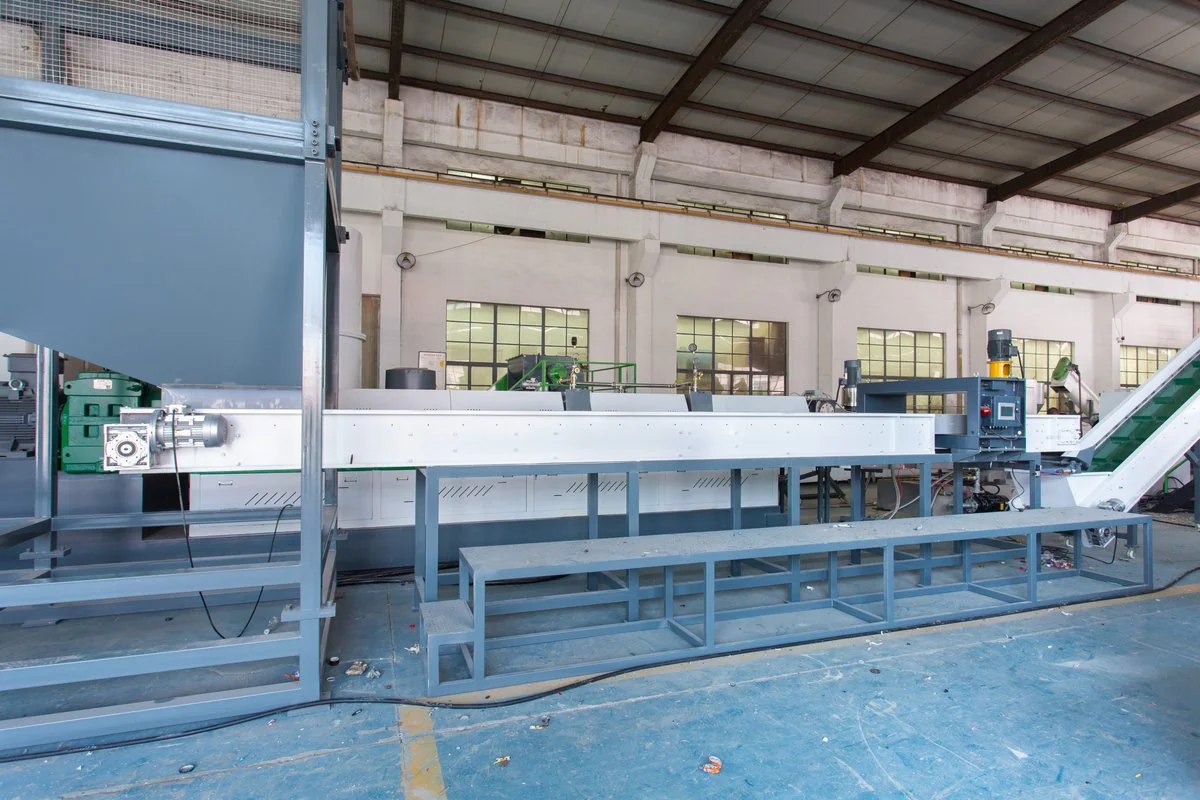

Manual Separating Machine in a PET cleaning line is used to visually sort and separate PET bottles from contaminants. Skilled workers remove impurities, ensuring high-quality PET material for recycling. It offers flexibility and cost-effectiveness, with results dependent on worker skill and quality control.

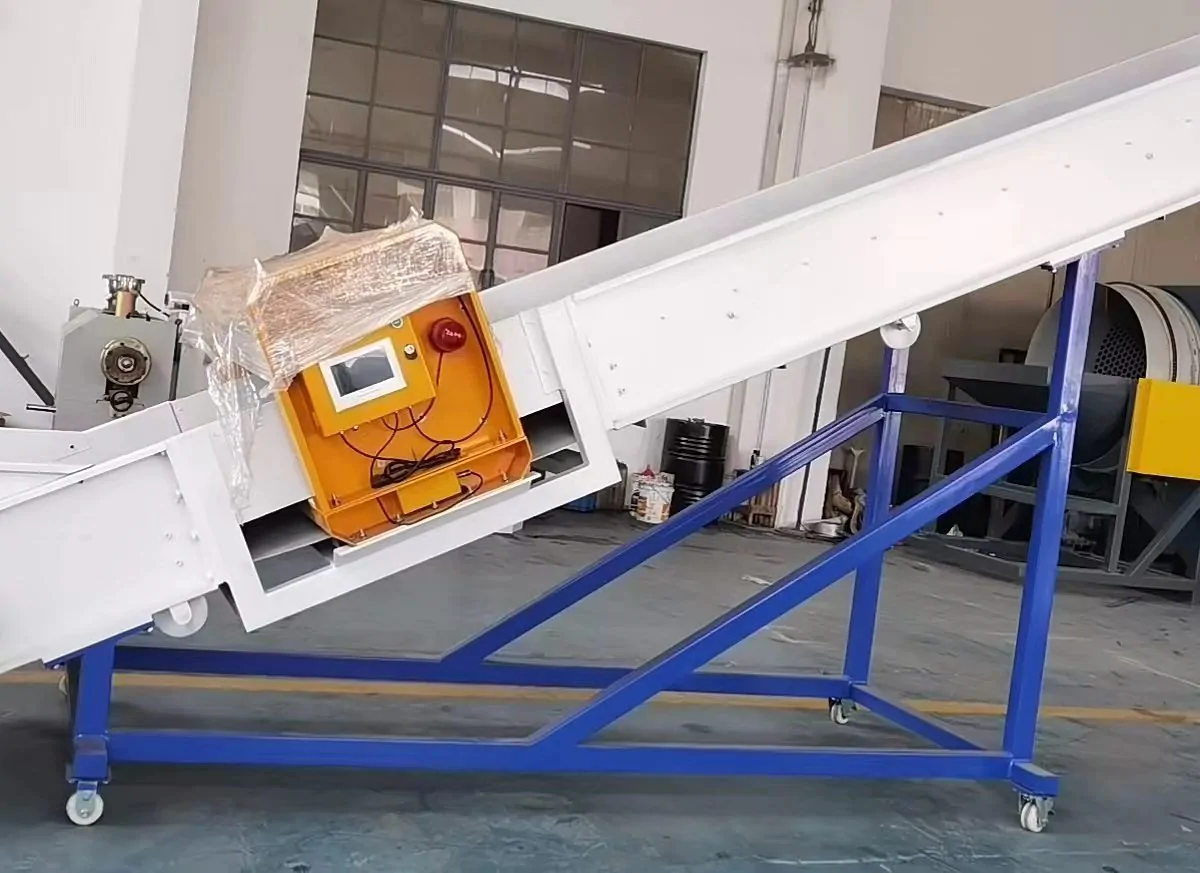

A metal detector in a PET cleaning line detects and removes metal contaminants, ensuring product quality, equipment protection, safety, and regulatory compliance.

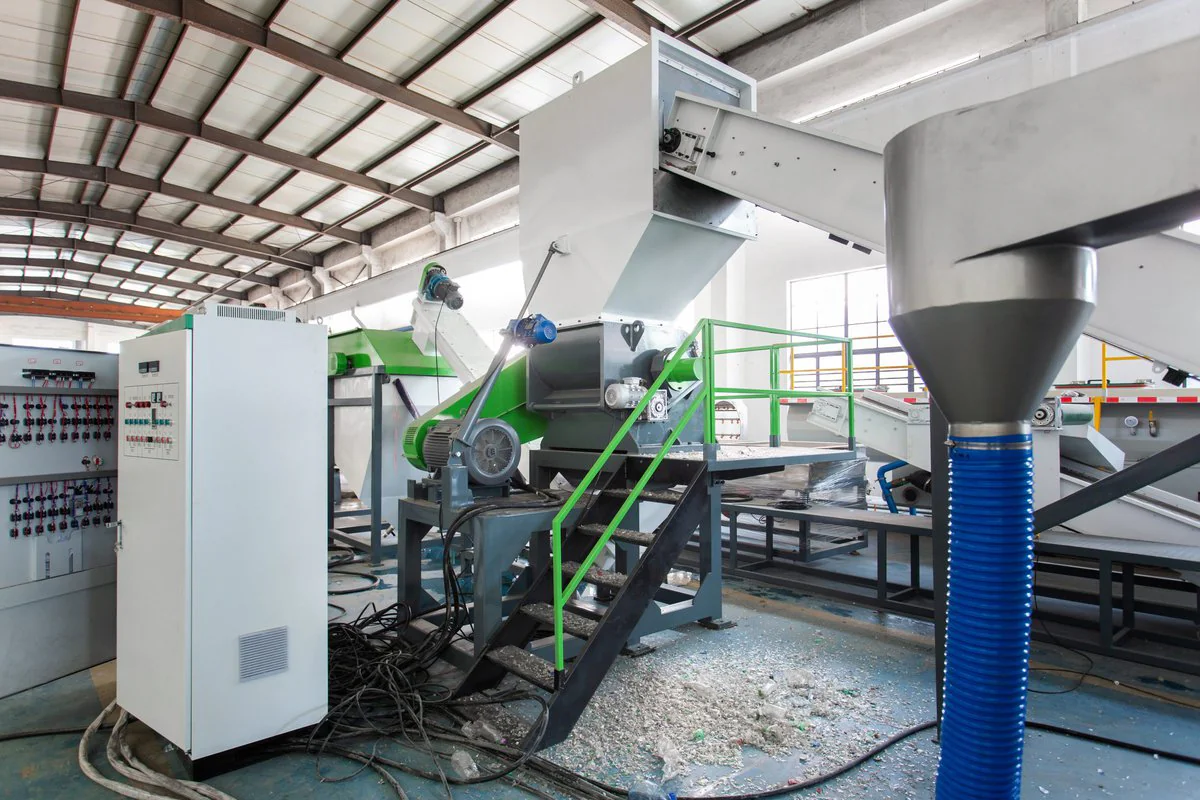

A crusher machine in a PET washing line breaks down and reduces the size of PET bottles or containers. It improves recycling efficiency, removes contaminants, enhances washing, and ensures a consistent output size.

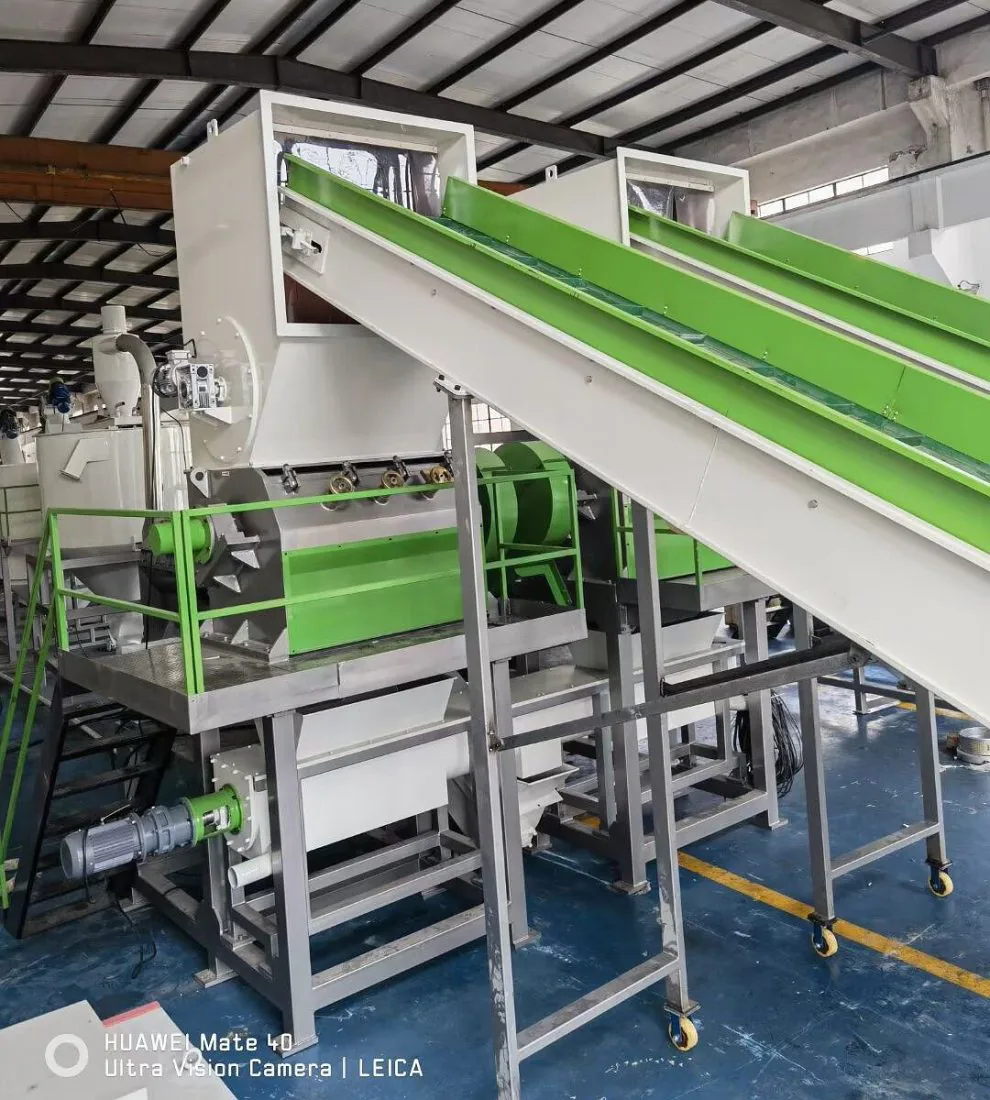

Continuous transport of crushed PET flakes to the back of the high-speed friction washer

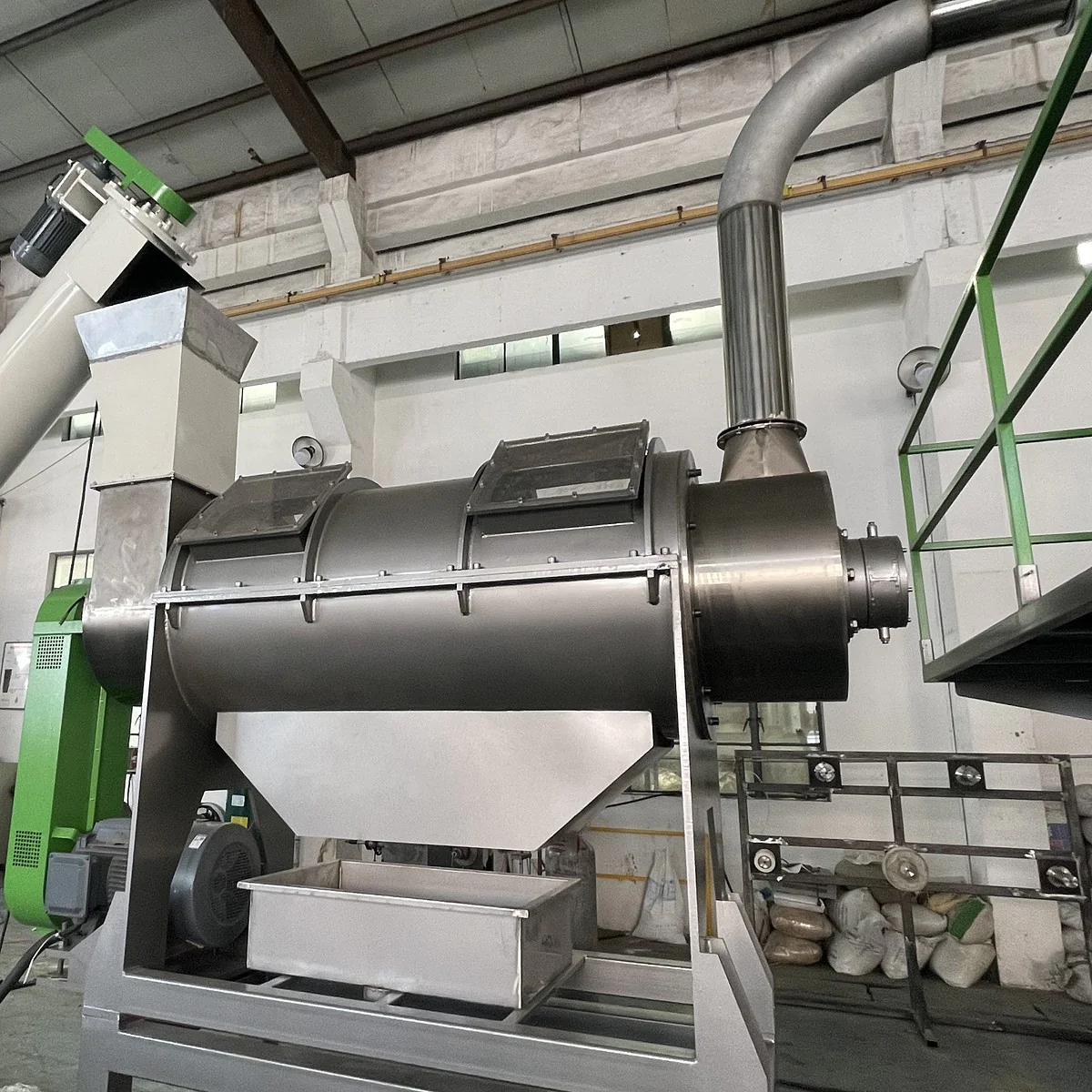

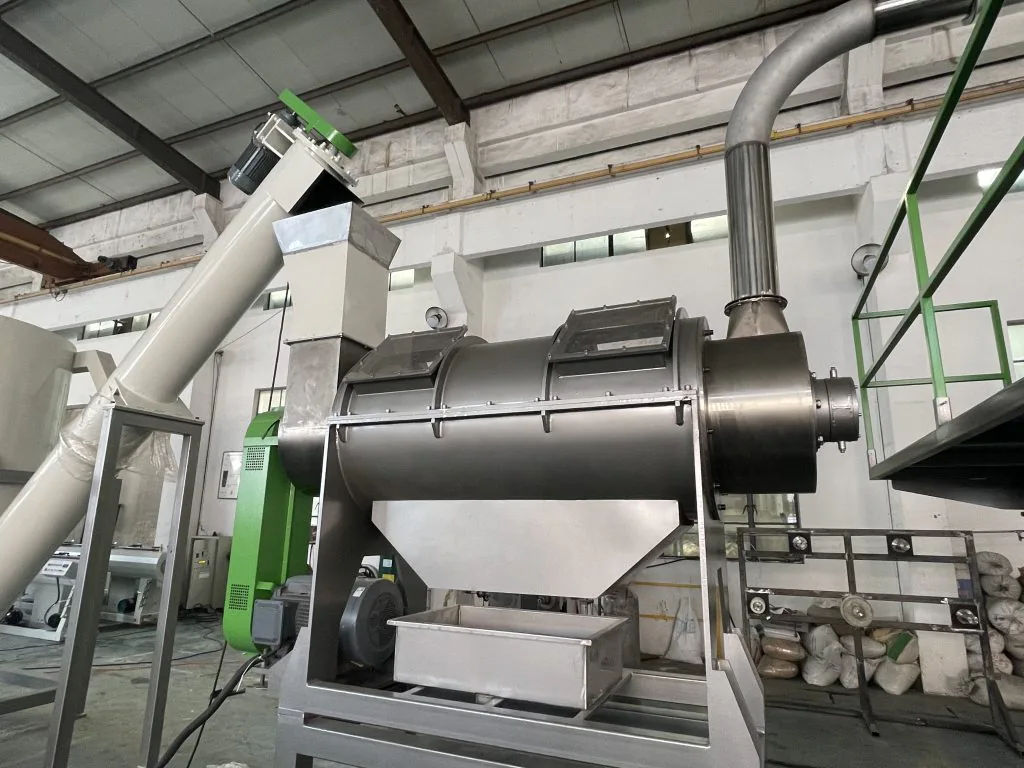

The High Speed Friction Washer (HSFW) is a key component of a PET washing line. It uses intense mechanical friction to clean PET flakes by removing impurities and contaminants. The flakes are agitated and subjected to high-speed friction, loosening contaminants. Water is sprayed to flush them out, and then the flakes are separated. The HSFW offers benefits like enhanced cleaning efficiency, increased throughput, improved flake quality, and water conservation.

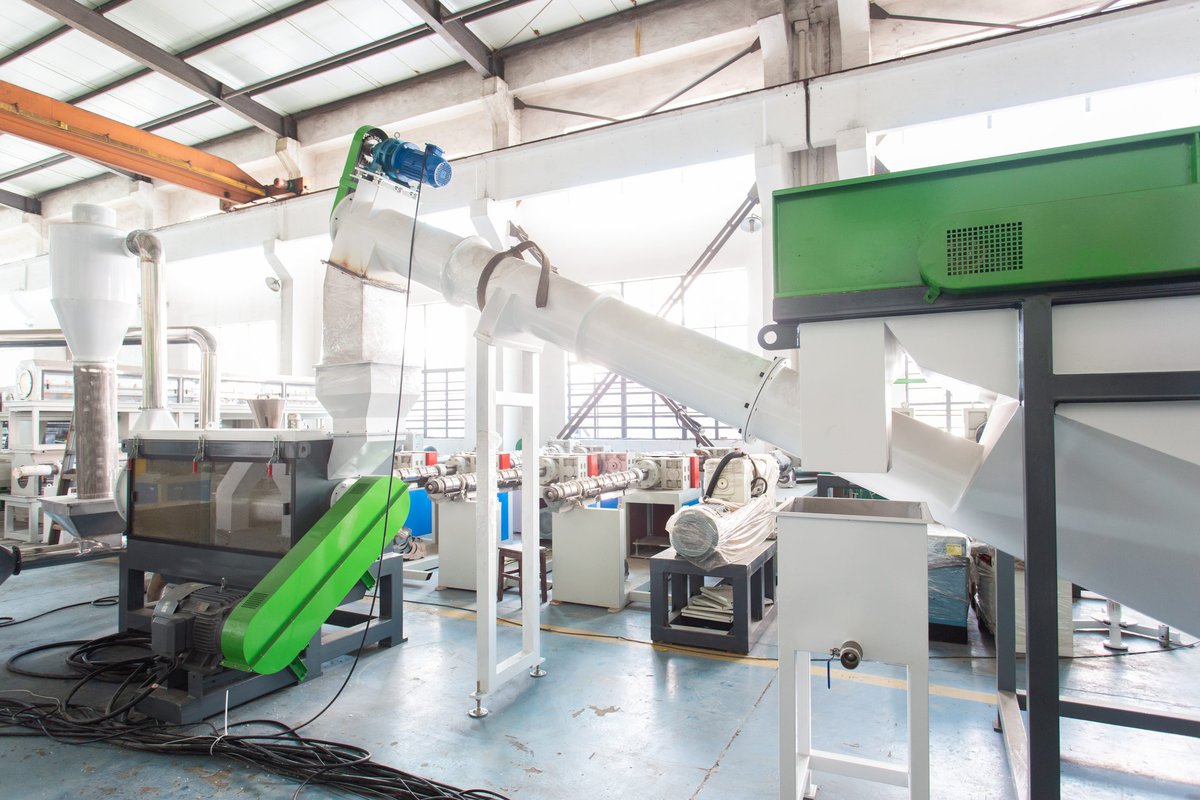

Efficient and continuous transport of the initially cleaned PET flakes to the back rinsing tank for re-rinsing.

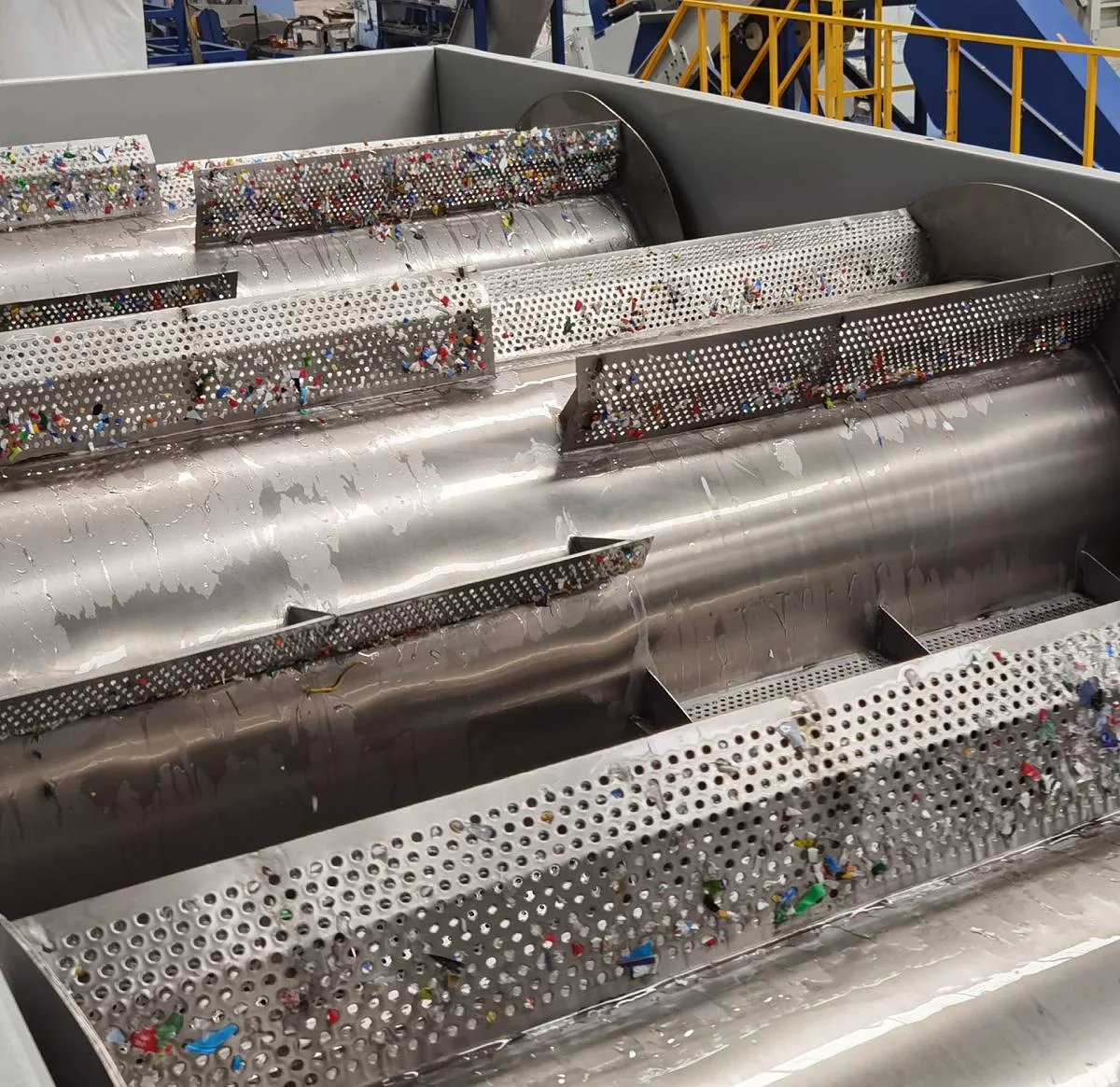

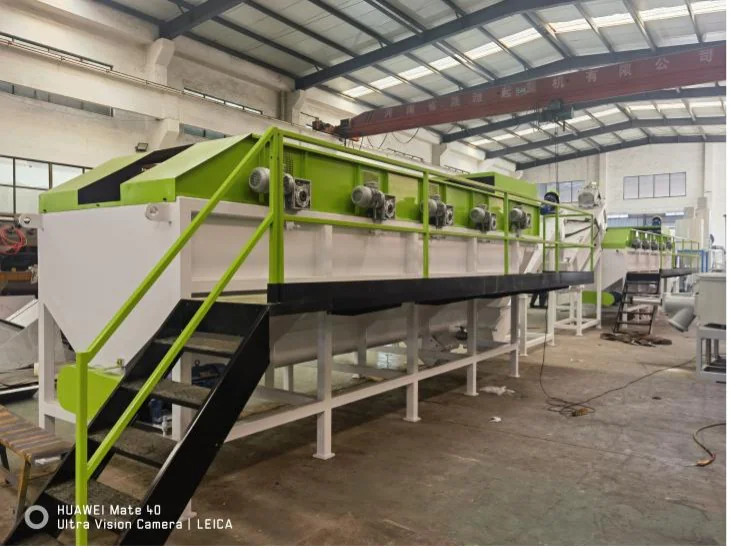

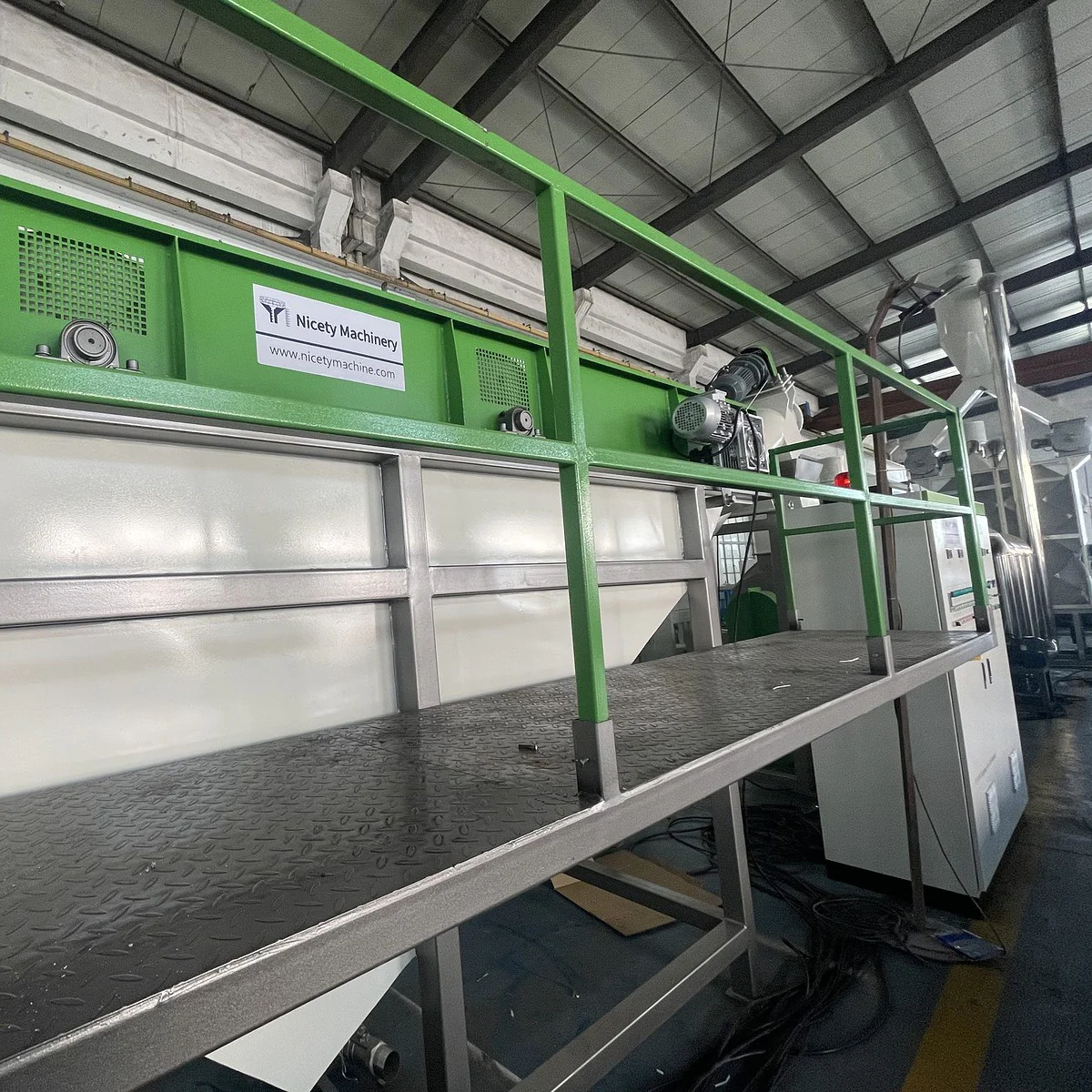

The Floating Wash Tank in a PET washing line separates plastic flakes based on their density. Heavier PET flakes sink to the bottom while lighter contaminants float on the surface. This separation improves the purity of the cleaned PET flakes, resulting in a higher quality end product.

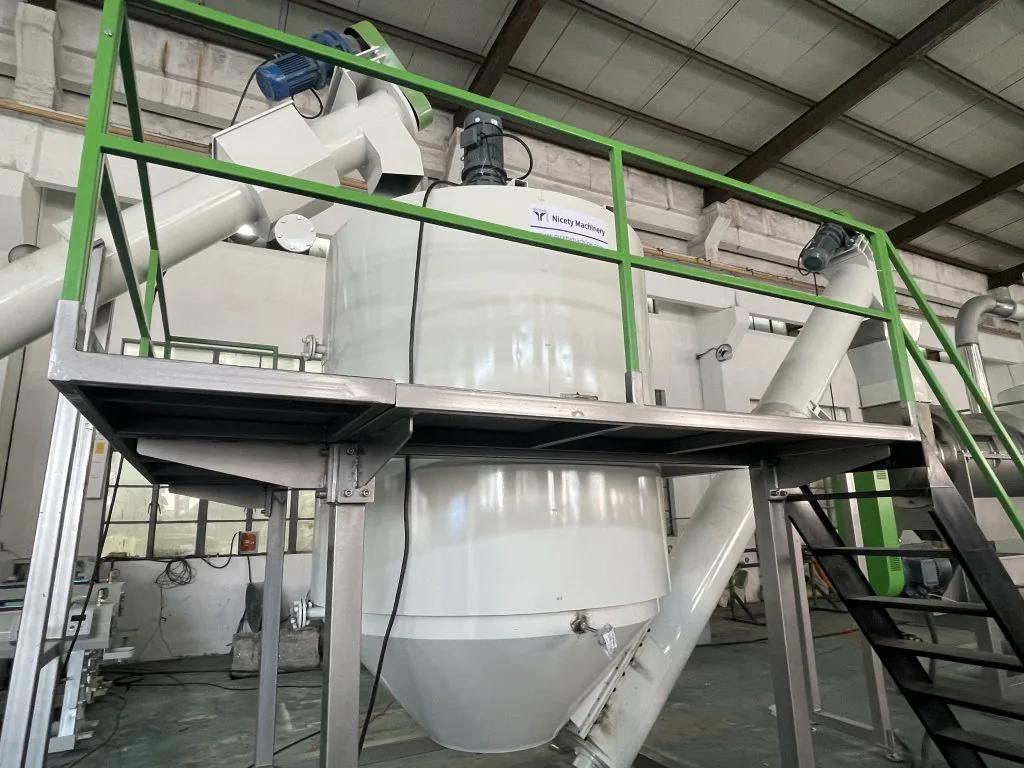

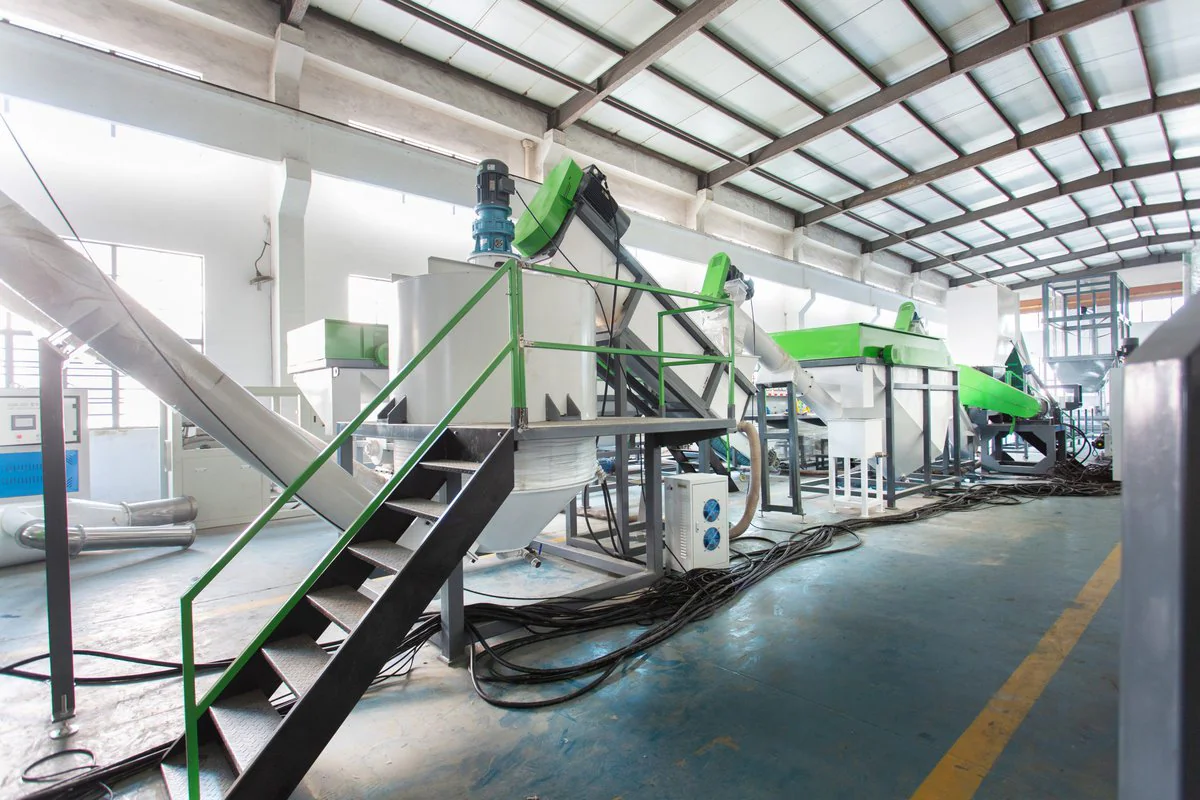

A steam washer, or hot washing device, in a PET washing line uses high-temperature steam to efficiently clean PET plastic. It removes contaminants, improves sanitization, saves energy, conserves water, and results in higher-quality recycled PET.
The hot cleaned PET flakes are again transferred to the rinse tank at the back for secondary cleaning and washing.
The second Floating Wash Tank in a PET washing line acts as an additional stage of cleaning. It helps to further remove contaminants and impurities from the PET material. By incorporating this tank into the washing line, manufacturers can achieve improved results in terms of cleanliness and quality of the recycled PET material.
For bulk transfer of cleaned PET flakes to a horizontal centrifuge dewatering machine at the back.

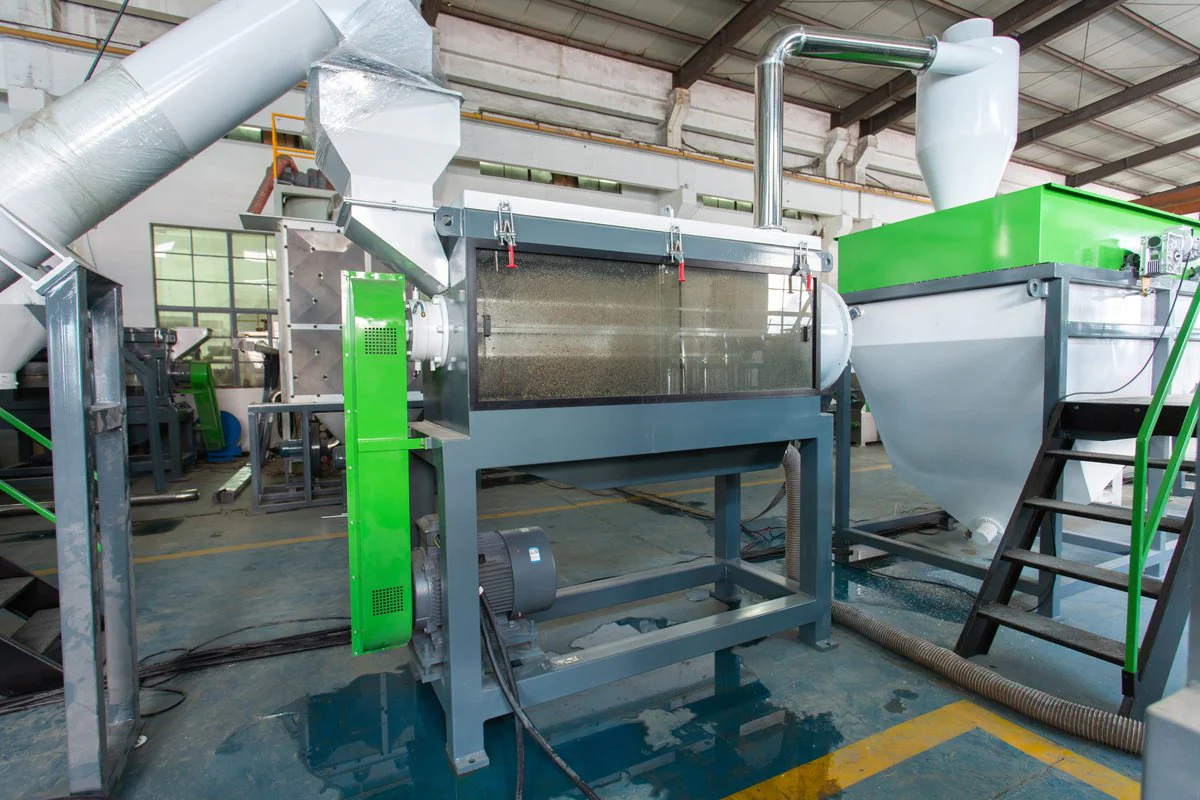

The Horizontal Centrifuge Dewatering Machine in a PET washing line efficiently removes water from the washed PET flakes through centrifugal force. It achieves impressive results by reducing moisture content, improving quality, saving energy, and increasing throughput.

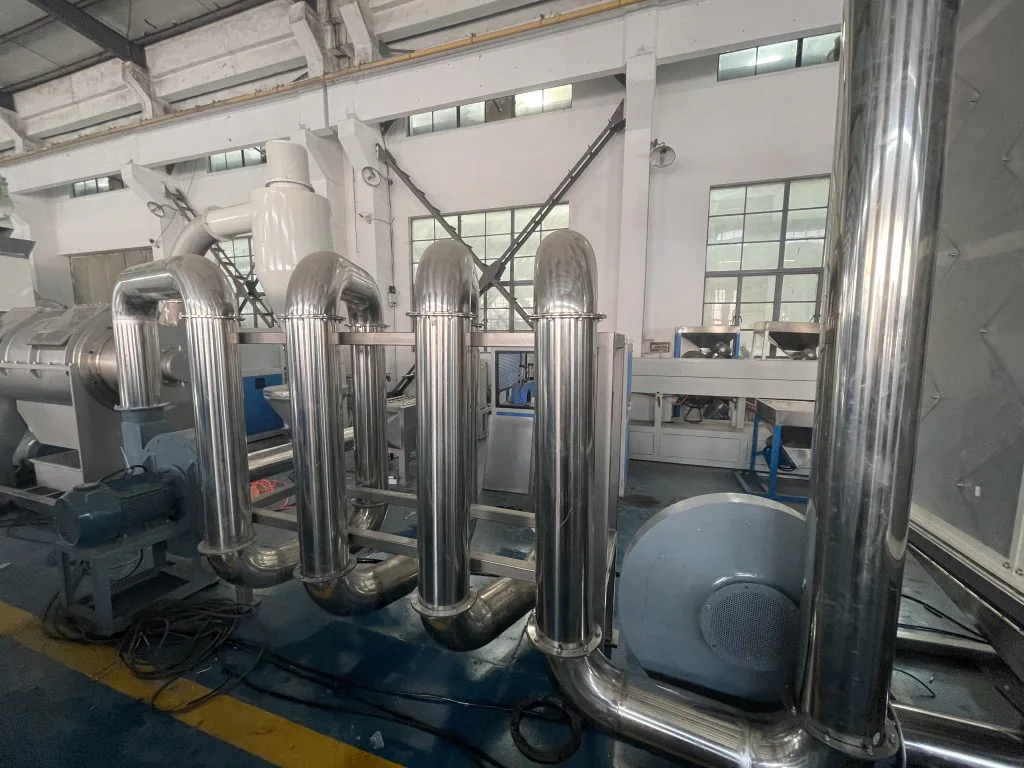

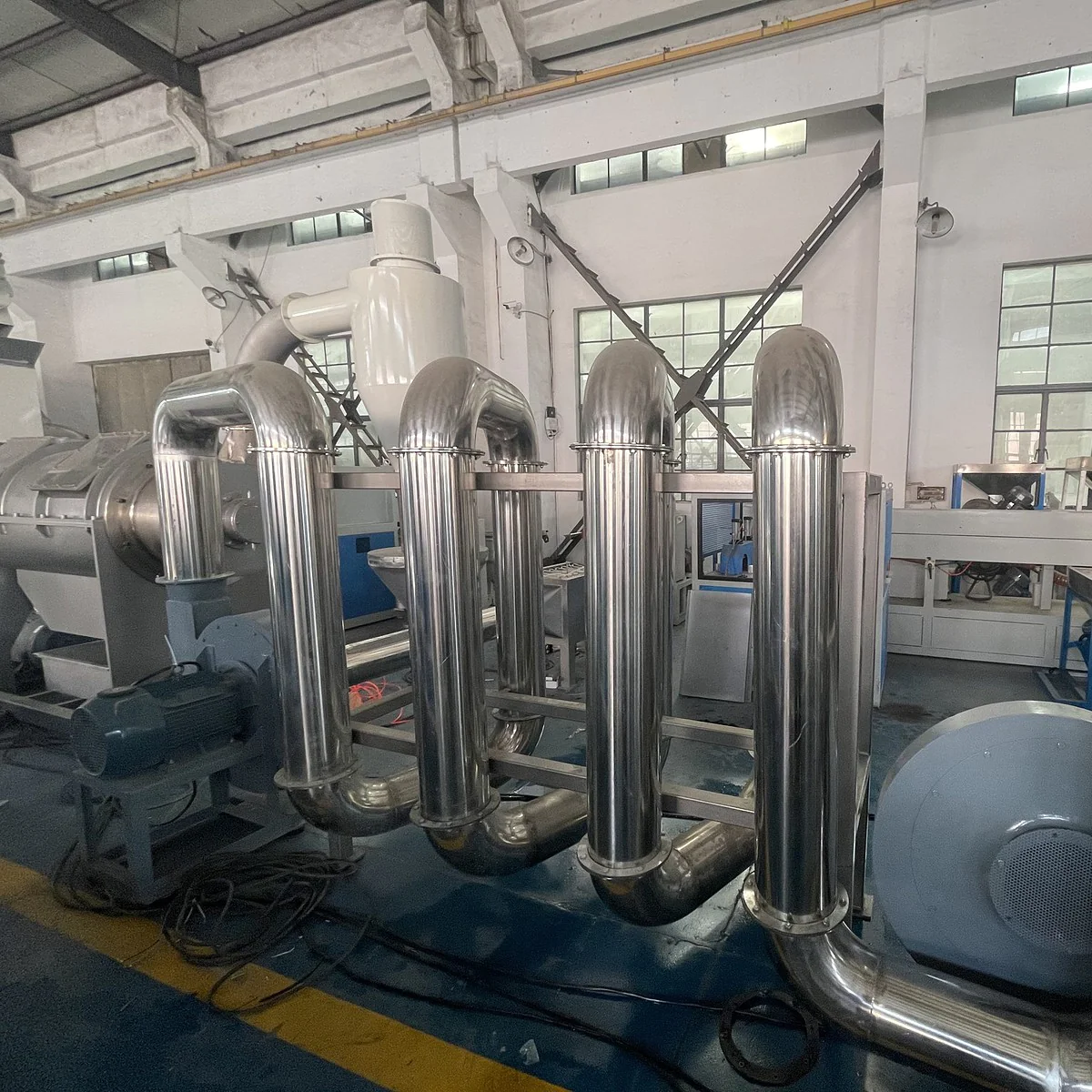

The drying tube system in the PET cleaning line uses high velocity air to remove moisture from the cleaned PET flakes. The temperature inside the pipe is usually heated to around 40 degrees. Using the lowest possible energy consumption and the highly efficient thermal drying principle, the moisture content in the PET flakes can be efficiently reduced to less than 2%.

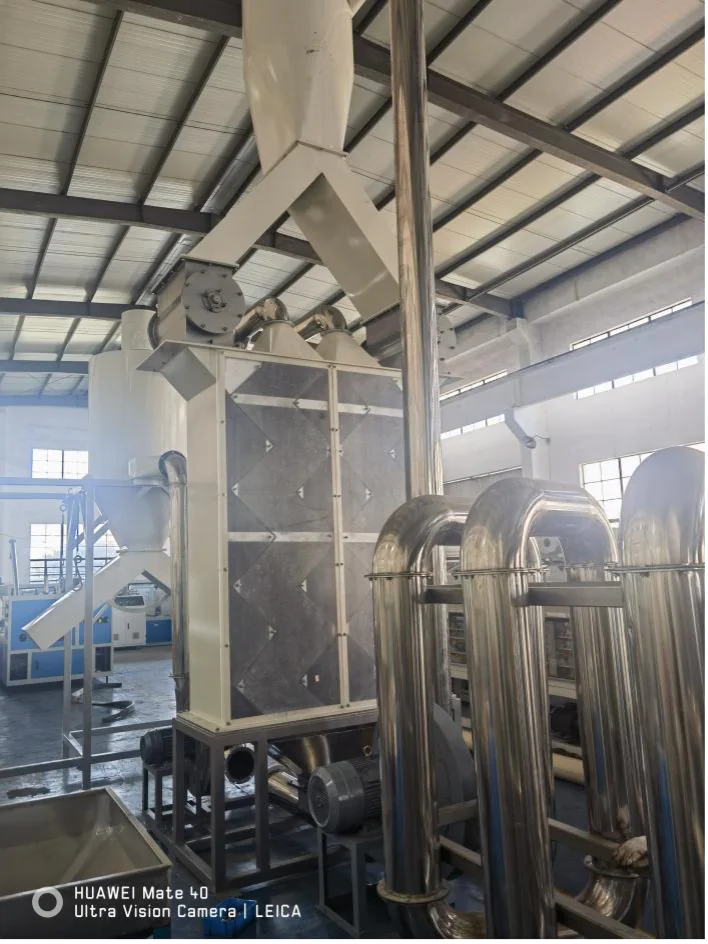

The label separater uses high speed airflow to remove other impurities such as labels left on the PET flakes. The result is a higher purity PET flake material.

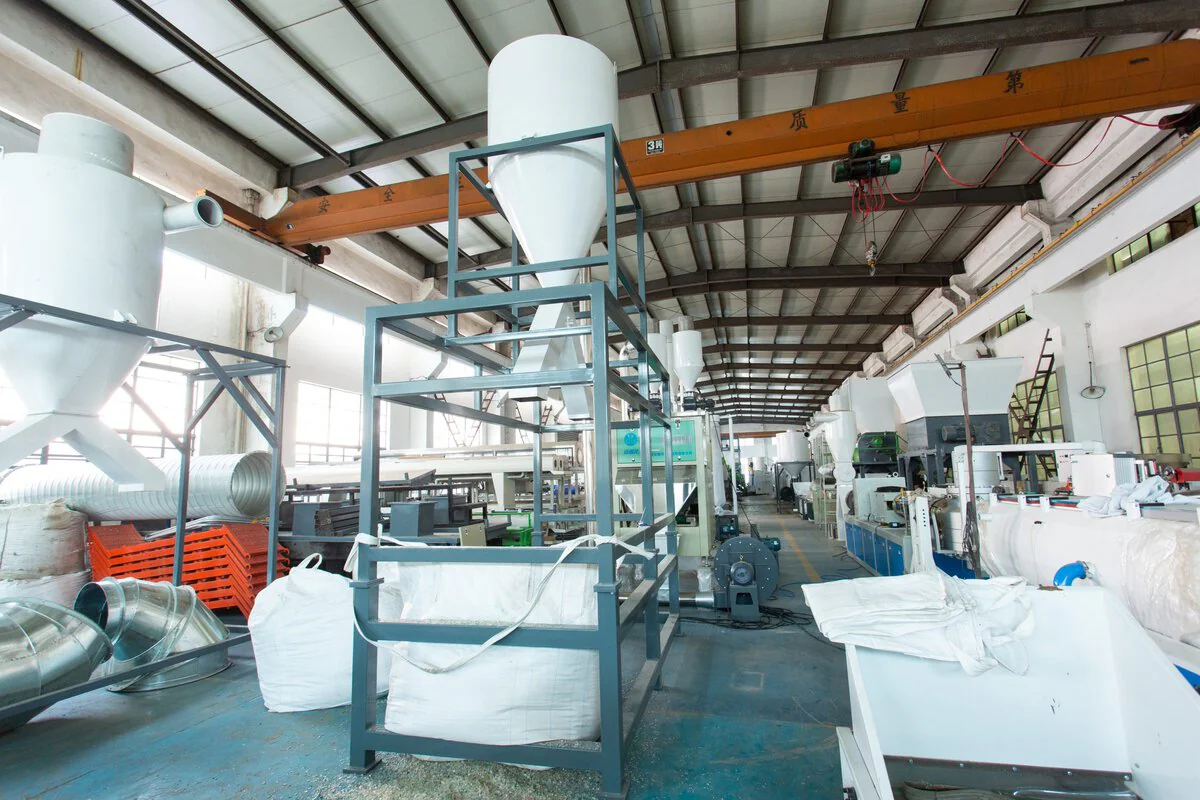

The clean, pure PET flakes are blown by a fan into a silo made of 304 SUS welded metal. It is the collection device at the end of the entire production line.

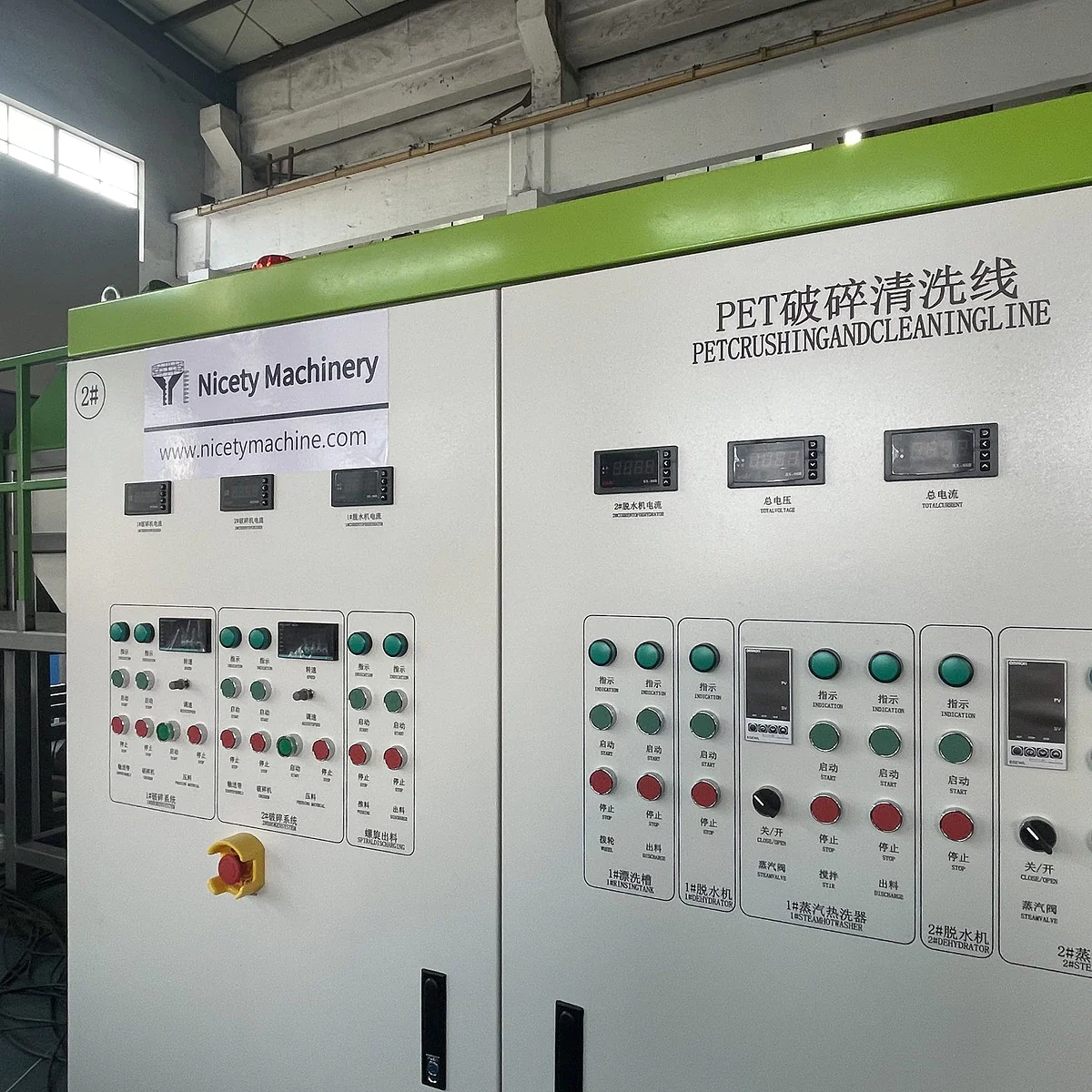

The Electric Control Box in a PET washing line acts as the central control unit, managing and coordinating electrical components for smooth operation, precise control, higher productivity, improved energy efficiency, and enhanced safety.
NICETY: Assembly and Training Services
Expert Assembly and Training Services: Let Us Guide You to PET Pelletizing Success
Service 1: Service promise:
- 1 year warranty
- Lifetime after-sales service
- Spare parts supply according to customer files
We are committed to providing high-quality technical support services for PET extrusion pelletizing line and offer a comprehensive after-sales guarantee to ensure customer satisfaction.
Service 2: Pre-sales support
- Needs analysis and customized solutions
- Technical support before and after purchase

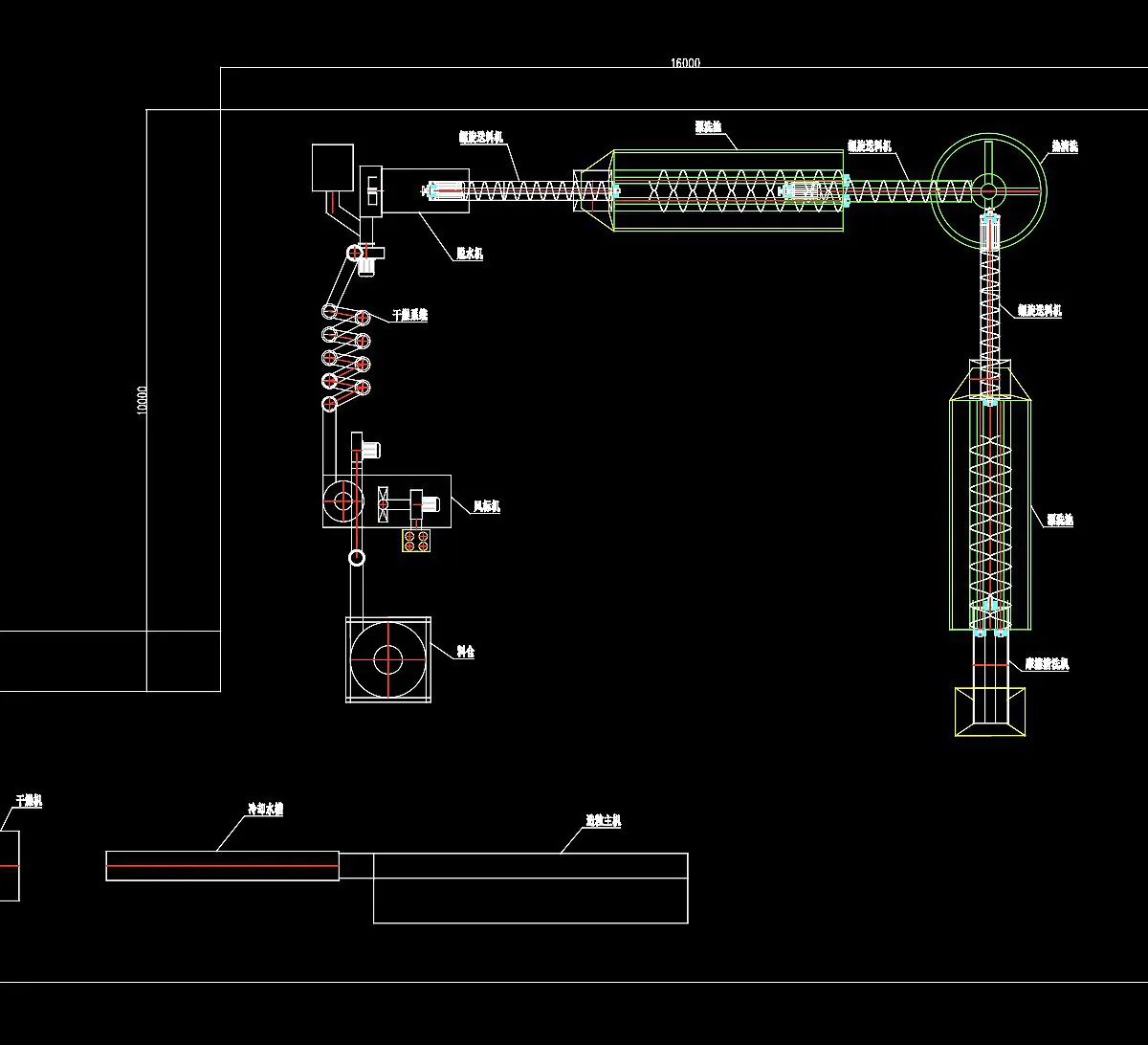

- CAD layout design based on your plant
Before you make a purchase, our technical support team is here to analyze your needs, provide customized solutions, and answer any technical questions you may have to help you make an informed decision.
Service 3: After-sales support
- Commissioning Before shipment
- Equipment Installation Drawings and Instruction

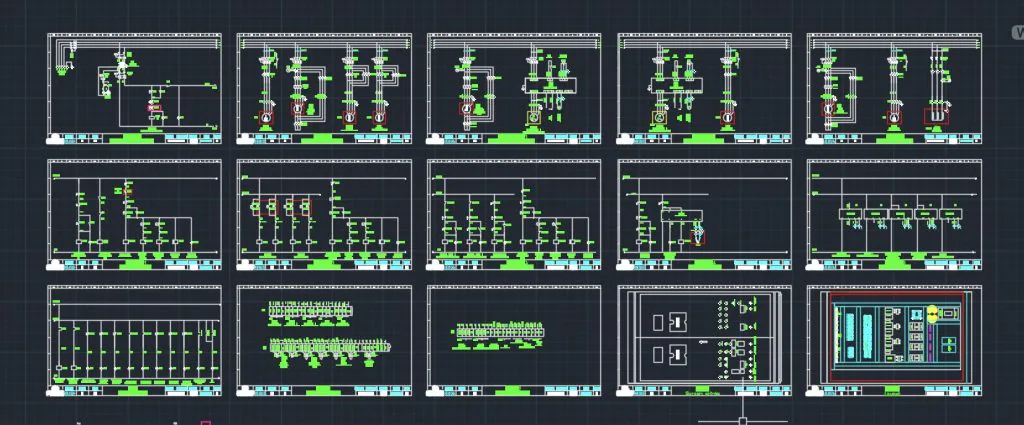

- Electrical schematic diagram
After your purchase, we will provide equipment installation and commissioning, operation guidance, maintenance and repair, and spare parts supply services to ensure your PET recycling line operates smoothly.
Service 4: Technical training
- Operating Instruction Manual
- Maintenance Guide
- Troubleshooting Guide
We offer technical training services for equipment operation, maintenance, and other related courses to help you maximize the efficiency and lifespan of your PET washing recycling line.
Want to improve or increase the productivity of your PET recycling washing machine?
Our website includes PDF files of frequently asked questions related to PET recycling, washing, pelletizing machines or systems and solutions to help you quickly find the assistance you need.
Unlocking the Mysteries of PET Bottle washing line Technology

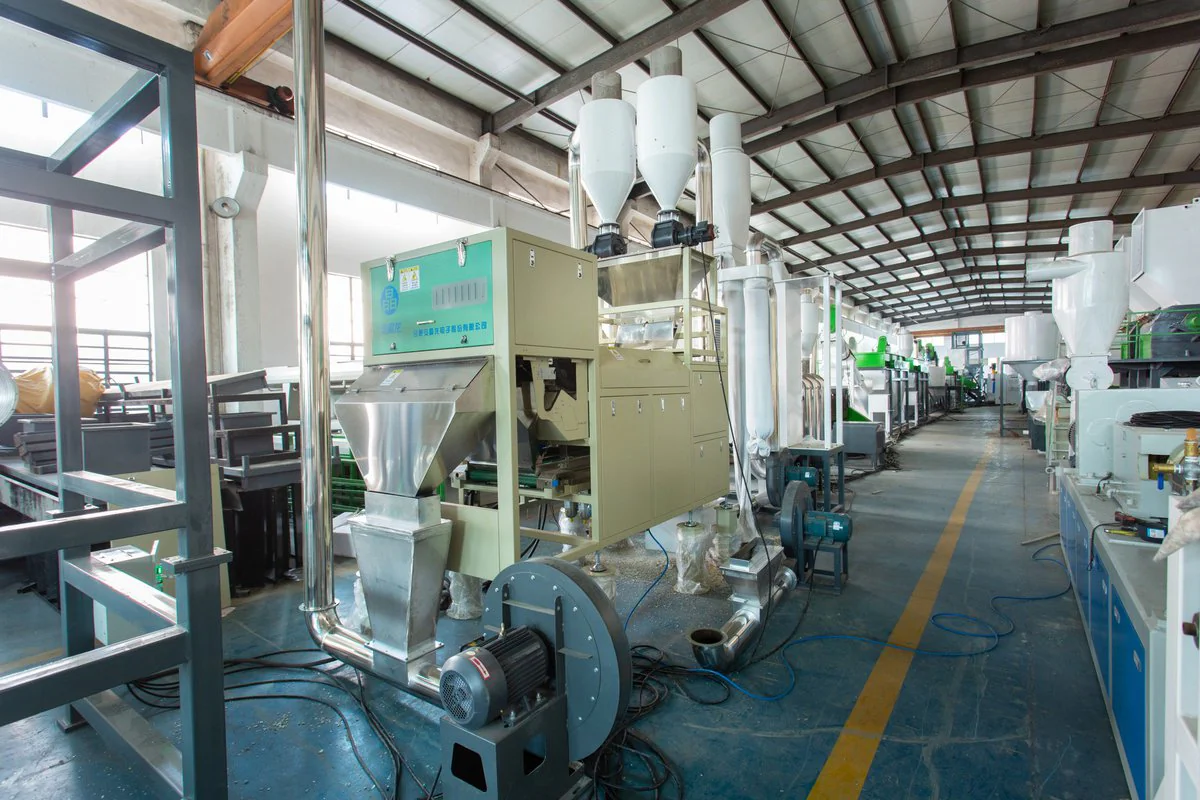

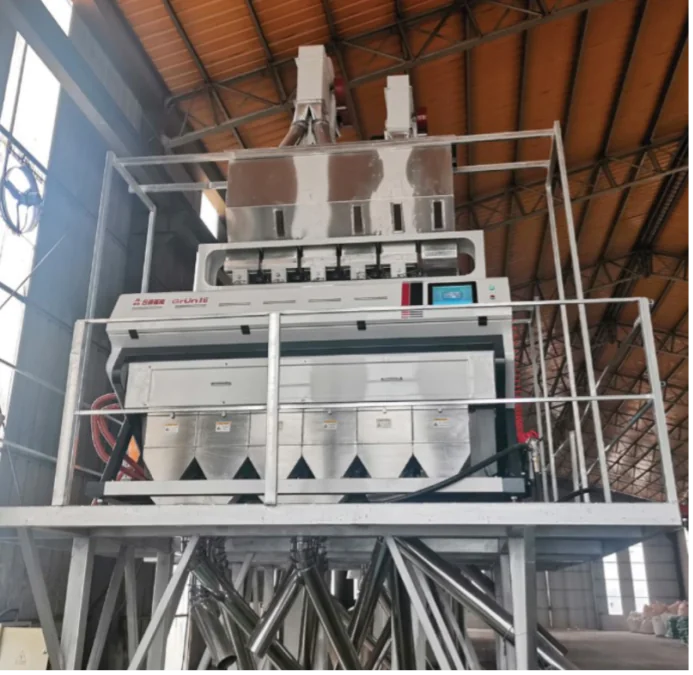

The secret to further improving the quality of PET flakes: sorting machines
In a PET bottle washing line, the material sorting machine plays a crucial role in separating off-colors and impurities from the recycled PET material. It uses optical sensors and air flow to detect and remove these unwanted materials. By integrating the sorting machine, the PET material achieves higher purity, fewer impurities, and more consistent color.
This high-quality PET material can be used for the production of recycled plastic products such as bottles, fibers, sheets, etc., meeting industry requirements for quality and sustainability.
The equipment that determines the upper limit of recycling output: PET bottle crusher
The output of PET bottle crusher depends on the equipment specification, driving force and speed, feeding method and system, cutter and crushing chamber structure, as well as the characteristics and processing conditions of PET bottles.
Typically, a PET bottle washing line with an output of 500 kg/hr requires only one NC-800 crusher (cutter shaft length 800 mm).
For outputs above 1000kg/hr, 2000kg/hr or 5000kg/hr, a larger crusher is required.

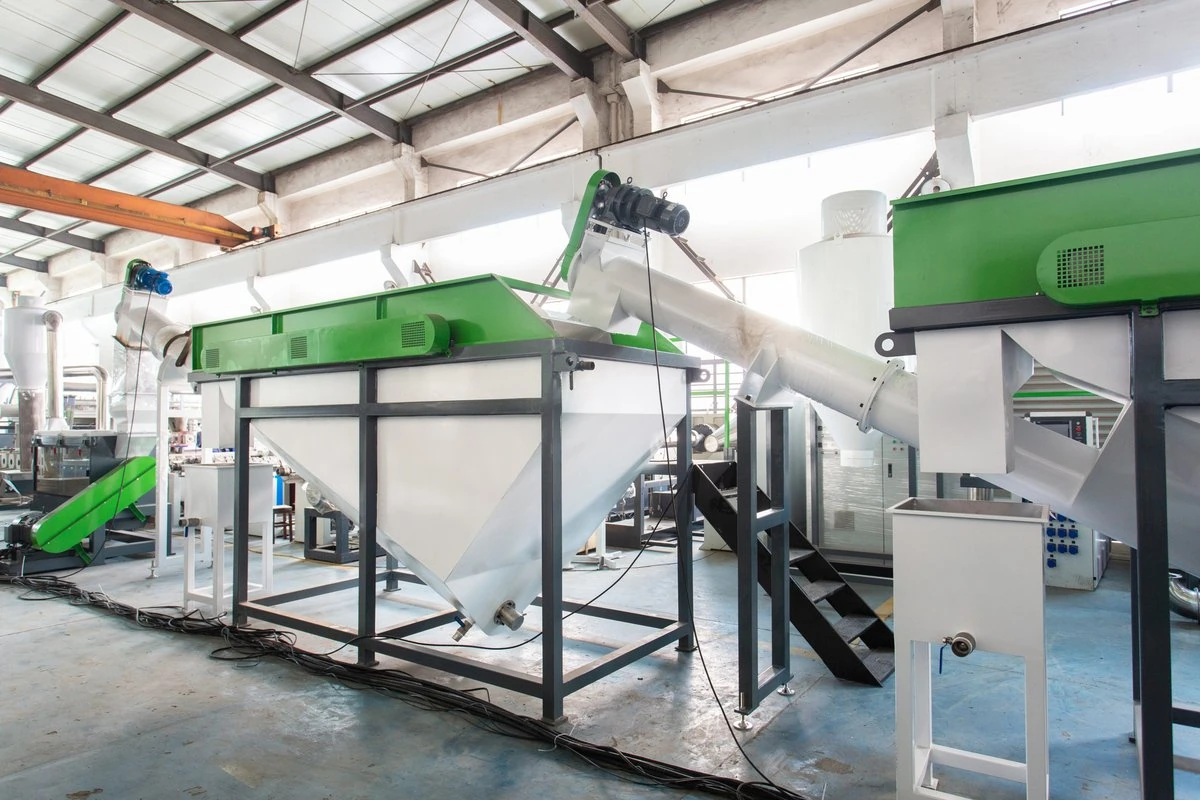

How does a rinse tank do the job of cleaning PET flakes and separating other impurities?
A rinse tank cleans PET flakes and separates impurities by using water flow and agitation to dislodge and loosen impurities from the flakes. The turbulence created helps separate impurities, high-quality PET flakes will sink to the bottom, while non-PET plastics and other impurities will float to the surface and be automatically salvaged and collected..The process is repeated with clean water for thorough cleaning. The cleaned PET flakes are then dried before further processing.
The secret to fast dewatering and drying of PET flakes: Centrifugal dewatering machines.
A PET flakes centrifugal dewatering machine uses centrifugal force to remove water from the flakes. The wet flakes are loaded into a spinning drum with perforations. As the drum rotates, water is forced out through the perforations, leaving the drier flakes inside. The separated water is collected and drained, and the dried PET flakes are discharged for further processing.
The FAQs About PET bottle washing line
What is a PET bottle washing line, and how does it work?
A PET bottle washing line is a specialized equipment used to process and clean PET (polyethylene terephthalate) bottles for recycling. It typically involves several stages, including sorting, crushing, washing, and drying, to transform used bottles into reusable materials.
Does your PET bottle washing line require a lot of maintenance?
Our PET bottle washing lines are designed for ease of maintenance. We utilize robust and reliable components, reducing the frequency of repairs and minimizing downtime. Regular preventive maintenance is recommended to ensure optimal performance and prolong the lifespan of the equipment.
What is the lifespan of your PET bottle washing line?
The lifespan of our PET bottle washing lines is significantly longer compared to other brands. Our equipment is built to withstand demanding industrial environments, utilizing durable materials and precision engineering. With proper operation and maintenance, our lines can provide years of reliable service.
Can your PET bottle washing line remove labels and caps from bottles?
Yes, our PET bottle washing lines are equipped with effective mechanisms to remove labels and caps from bottles. The process involves advanced labeling and cap separation systems, ensuring a thorough cleaning of the bottles before recycling.
Does your PET bottle washing line have any specific water or power requirements?
Our PET bottle washing lines have specific water and power requirements( 280V/380V /480V，3Ph，50Hz/60Hz). We provide detailed specifications regarding water quality standards, water flow rates, and power voltage, helping you understand and meet these requirements.
Can your PET bottle washing line handle different types of plastic contaminants?
Our PET bottle washing lines are designed to handle various types of plastic contaminants commonly found in PET bottles. These may include residues, oils, and other impurities. Our equipment incorporates multiple stages of washing, rinsing, and separation to ensure effective removal of contaminants and achieve high-quality recycled PET material.
Is it possible to customize the PET bottle washing line according to our specific needs?
Absolutely! We offer customization options for our PET bottle washing lines to meet your specific requirements. Our engineering team will work closely with you to tailor the equipment, including capacity adjustments, additional features(like color, material'sorting), and process customization.
What is your lead time for production and delivery of your PET extrusion pelletizing system?
The lead time for manufacturing and delivering a PET bottle washing line depends on several factors, such as the specific configuration, customization requirements, and current production schedule. Upon receiving your order, we will provide you with an estimated lead time to ensure timely delivery.
Typically, it can range from 35 days to 90 days.
Can you provide installation and training services for operating the PET bottle washing line?
We offer comprehensive installation and training services for operating the PET bottle washing line. Our experienced technicians will install the equipment at your facility, ensuring proper setup and integration. We also provide thorough training to your staff, covering equipment operation, maintenance, and safety protocols.
What kind of warranty and after-sales support do you offer for the PET bottle washing line?
- We provide comprehensive technical support and after-sales service to ensure our customers get the most out of their PET extrusion pelletizing systems. This includes installation, commissioning, training, and ongoing support to help troubleshoot any issues or optimize performance.
- And we maintain a ready supply of spare parts for our PET bottle washing lines. Our inventory is carefully managed to minimize equipment downtime, and we offer efficient spare parts delivery. Our team can assist you in selecting the necessary components for your specific needs.
What is the price range for your PET bottle washing lines, and are there any additional costs to consider?
- The price range of our PET bottle cleaning lines depends on a number of factors, including specific configurations, capacities, customisation requirements and optional features. We offer cost effective solutions without compromising on quality or performance.
- In addition, we offer free installation guidance, training or ongoing technical support. The cost of additional associated accessories or parts beyond this will be transparent.
If your question is not listed, please email us right now.
NICETY: High-Quality PET washing recycling Machine Manufacturer
Our PET recycling system is made of top-quality motors, electric parts and metal parts to ensure maximum efficiency and durability.
Reliable PET pelletizing system manufacturer in China
Partner with us for high-quality plastic recycling equipment and unbeatable after-sales support！
- Certified by CE, ISO UL, CSA certification
- High quality, cost effective, low failure rate PET recycling line
- Professional after-sales service with quick response to your needs
At Nicety, we take pride in our global reach with customers in various countries, including the Middle East, Europe, North America, and South America. Our successful delivery solutions have earned us positive feedback from satisfied clients worldwide.
Sourcing guide for PET washing and recycling lines: Mass production high quality r-PET bottle flake
PET (polyethylene terephthalate) is a material widely used in the manufacture of plastic bottles. However, large quantities of discarded PET bottle flakes can cause serious pollution to the environment.
The use of PET recycling and cleaning lines has therefore become essential. With washing lines, waste PET bottle flakes can be transformed into high-quality recycled material, enabling recycling and reducing the need for new raw materials.
What points should you focus on in a PET bottle washing line？
a.Determining capacity requirements: Determine the capacity requirements of the washing line based on the expected number of PET flakes to be processed
First, we need to determine your capacity requirements. Please let me know how many PET flakes you expect to process per hour in order to determine the capacity requirements for your cleaning line.
By accurately assessing your capacity requirements, we can select a washing line with sufficient capacity to ensure efficient production and meet market demand.
b.Consider washing efficiency: choose a machine with efficient cleaning and separation functions to improve the quality of the recovered material
A key step in the recycling of PET bottle flakes. Our washing line equipment uses process steps such as friction washing, rinsing, flotation and density separation to effectively remove contaminants, adherents, grease and other impurities.
In addition, our machines have the flexibility to handle a diverse range of PET bottle flakes to meet market demands.
c.Consider adaptability: ensure the line can handle different types and sizes of PET bottle flakes
When choosing a washing line, you should consider its adaptability.
Different types and sizes of PET bottle flakes may vary in size, shape and material. Ensure that the line is flexible and able to handle a wide range of PET flakes to meet market demands.
d.Ease of operation and level of automation: choose a PET bottle washing line that is easy to operate and maintain, with a high level of automation to increase productivity
Excellent washing line equipment is easy to operate and maintain, reducing operator training costs and equipment downtime.
In addition, the high level of automation of the equipment increases productivity and product consistency, further improving the quality of the recycled material.
The most critical process step in washing and recycling PET bottle
a. Crushing and pre-washing: Selecting the right crushing equipment and pre-washing system to remove contaminants and adherents
In a PET bottle washing line, crushing and pre-cleaning are important steps in the start-up phase. you should select the appropriate shredding equipment and pre-washing system to ensure that contaminants and adhesions are thoroughly removed from the surface of the PET bottle flakes to provide a good basis for the subsequent process steps.
b. Cold and hot thermal washing: choosing the appropriate washing method and selecting different washing equipment and processes according to requirements
Cold washing and hot washing are the common cleaning methods used in PET bottle washing lines. They use different temperatures and chemical solvents in the cleaning process, with some equipment differences and differences in the final cleaning effect.
Cold washing: Cold washing is the process of using water or solvents at ambient temperature for cleaning. This type of cleaning is usually suitable for general contaminants and adherents and can be removed by steps such as friction washing and rinsing. Cold cleaning equipment usually includes water tanks, spray systems and filtration units.
Thermal washing: Also called hot washing. Thermal washing is a process that uses heated water or steam for cleaning. By increasing the temperature of the cleaning medium, hot washing can be more effective in removing grease, colour and other difficult to remove contaminants. Thermal washing equipment usually includes heating systems, spray or immersion systems and heat exchange units.
c. Sorting and separation: PET bottle washing lines should use advanced bottle flake sorting technology to ensure efficient cleaning results.
For example, optical sorting systems allow for fast and accurate separation of different colours and types of PET bottle flakes.
Sorting is a key step in PET washing lines. By using efficient sorting equipment and separation technology, contaminants, foreign bodies and other non-compliant particles can be effectively removed from the PET flakes.
These sorting machines can screen and separate based on characteristics such as colour, shape and density, thereby improving the quality and purity of the recovered material.
d. Friction washing and rinsing: choose a quality friction washing and rinsing system to ensure thorough removal of residues and chemicals
Friction washing and rinsing are also important washing steps in a PET bottle washing line.
You should choose a good quality friction washing and rinsing system to ensure that residual contaminants and chemicals are completely removed from the surface of the PET flakes and to guarantee the quality and reusability of the recycled material.
e. Flotation and density separation: efficient flotation and density separation processes are used to remove grease, labels and other impurities
Flotation and density separation are key separation process steps in PET bottle washing lines.
By using efficient flotation and density separation technology, grease, labels and other impurities can be effectively removed from PET bottle flakes, improving the quality and purity of the recovered material.
f. Drying and sieving: consider efficient drying and sieving technology to ensure that the moisture content and particle distribution of the recovered material meets the requirements
Drying and screening are necessary steps in the final stage of a PET bottle washing line.
You should consider the use of efficient drying and screening technology to ensure that the moisture content and particle distribution of the recovered material meets the requirements of the market.
Flotation and density separation are the key separation process steps in a PET washing cleaning line.
By using highly efficient flotation and density separation technology, grease, colour and other impurities can be effectively removed from PET flakes, improving the quality and purity of the recovered material.
Summary:
By choosing the applicable washing method (cold or hot washing) and equipping it with the appropriate cleaning equipment and processes, you can achieve higher cleaning results and remove more contaminants and adherents, thus improving the quality and reusability of the PET bottle flake recycling material.
At the same time, you should also choose the right washing solution for your washing needs and objectives, taking into account equipment differences and cost effectiveness.
Quality control and testing
a. Using advanced quality control methods: ensuring that the washing line equipment is able to monitor key indicators such as particle size, colour and residue content
The use of advanced quality control methods in the production of PET washing lines is an important factor in ensuring consistent quality of recycled material.
We suggest you should choose washing line equipment with advanced technology that can monitor key indicators such as particle size, colour and residue content.
These indicators can be monitored and controlled in real time with equipment such as in-line sensors, optical inspection systems and colour analysers to ensure the production of high quality recycled material.
b. Implementing routine testing procedures: Establishing appropriate laboratory testing and quality inspection processes to carry out the necessary physical and chemical analysis of the recovered material
In addition to quality control of the equipment, you should also establish routine laboratory testing and quality assurance procedures.
These procedures can include the necessary physical and chemical analyses of the recovered material, such as tests for particle morphology, melt index, melt flow, etc.
Through these testing procedures, it can be ensured that the quality of the recycled material meets the customer’s requirements and market standards.
Cost-effectiveness considerations
a. Equipment price and performance comparison: compare the price and performance of equipment from different suppliers to find the best value for money
When selecting PET bottle washing line equipment, you need to compare the price and performance of equipment between suppliers.
This can help customers find the best value for money equipment and ensure they meet your expectations in terms of return on investment.
Also, you should take into account factors such as price, features and quality of the equipment and communicate and consult fully with different suppliers.
b. Energy and maintenance costs: evaluate the energy consumption and maintenance requirements of the PET bottle washing line and select equipment that will provide long-term cost efficiency
In addition to the price of the equipment, you should also assess the energy consumption and maintenance requirements of the washing line equipment.
Choosing equipment that offers long-term cost effectiveness will reduce energy consumption and operating costs, as well as reducing the cost of maintenance and repair of the equipment.
You should request relevant data and information from the supplier to enable a full cost-benefit analysis to be carried out.
c. Service and support: consider the supplier’s level of service and support, including pre-sales service, in-sales support and after-sales service
In the procurement process of PET bottle washing recycling line equipment, the supplier’s service and support is a very important consideration.
Please consider the supplier’s pre-sales service, in-sales support and after-sales service levels. This includes the supplier’s capabilities in terms of equipment selection, installation and commissioning, operator training and after-sales maintenance.
It is worth highlighting that Nicety Machinery Co., Ltd is a highly respected manufacturer of PET recycling washing line equipment and is known for its excellent pre-sales, in-sales and after-sales services.
We offer professional pre-sales consultation to help customers select the right equipment for their needs. At the mid-sales stage, we provide comprehensive technical support and assistance to ensure smooth delivery and installation and commissioning of the equipment.
In addition, we offer a comprehensive after-sales service including training, equipment maintenance and spare parts supply to ensure that customers receive timely support and assistance during use.
For NICETY PET bottle washing line more details please refer to: https://nicetymachine.com/pet-bottle-washing-line/
Nicety Machinery Co., Ltd. : www.nicetymachine.com
