Vibrating spiral elevator - Material Vertical conveying

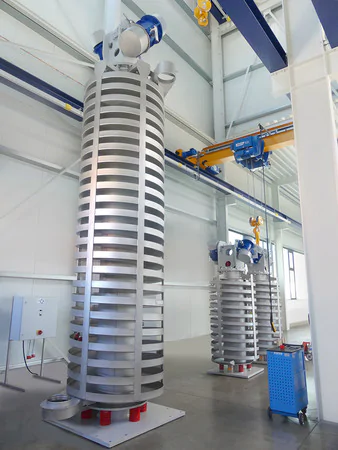

Vibrating elevator is a kind of conveying device which uses symmetrical vibrating motor to produce oblique high frequency vibrating force couples, so that the materials in the form of vibration climb upward along the turntable spiral. It has the functional characteristics of efficient vertical conveying of materials.
With air-cooled or water-cooled system, it can effectively cool down or dry the material during conveying process and is widely used in the production line of plastic industry.

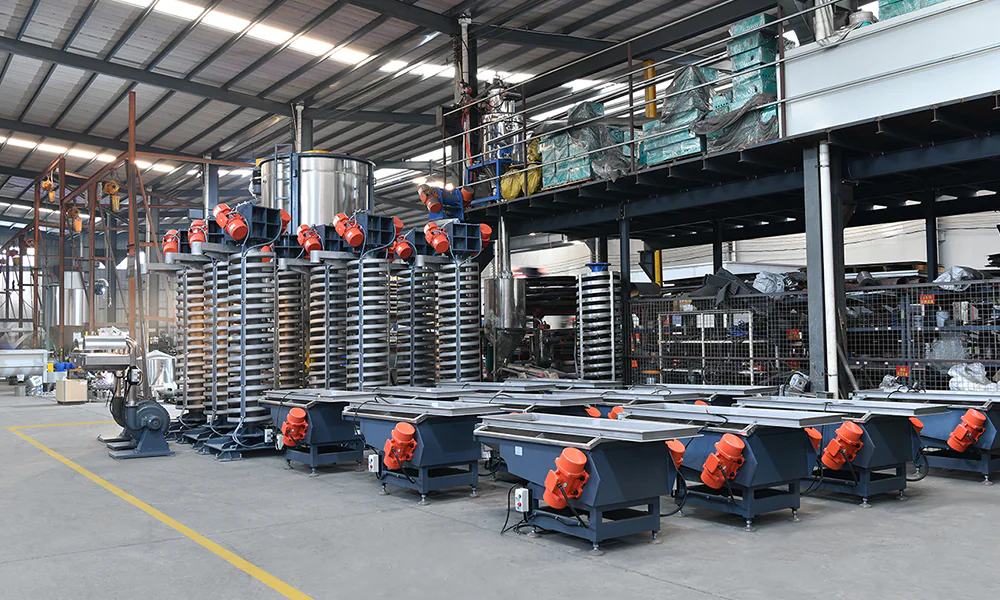

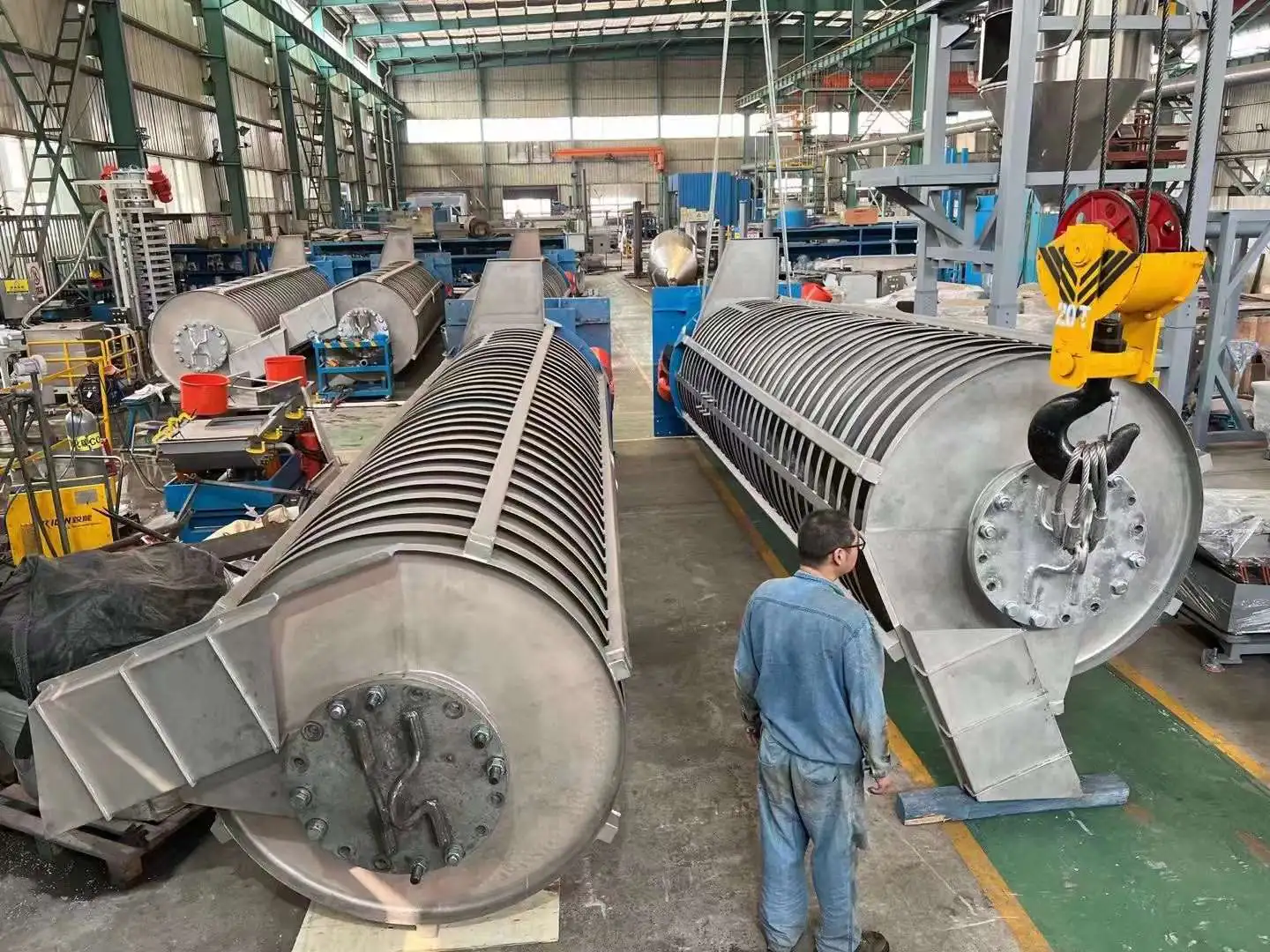

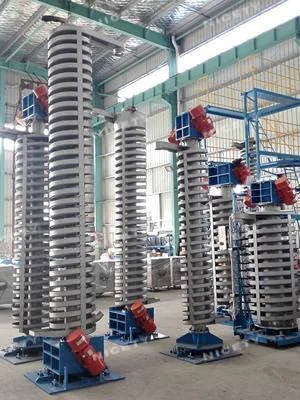

Vibrating spiral elevator Manufacturer

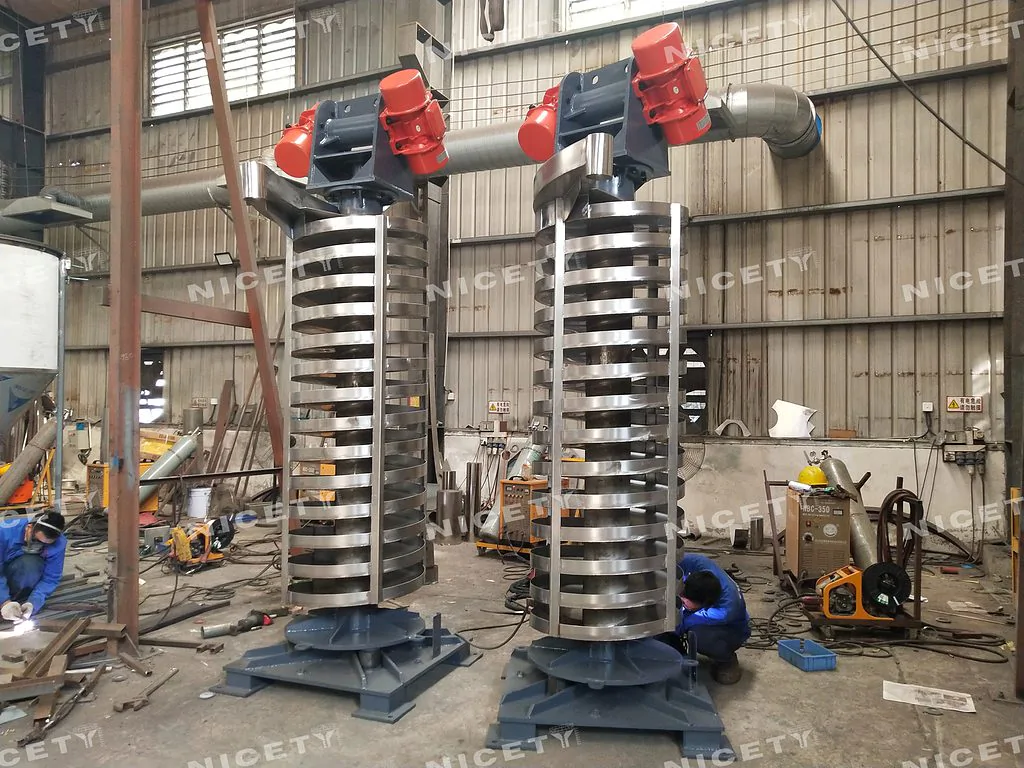

Nicety Machinery Vibratory Spiral Elevators are manufactured using a one-off moulding process and a proven metal heat treatment process.
The overall strength is high and resistant to prolonged vibration without cracking.
- Elevator noise level is less than 80 dB.
- Stainless steel surface treatment to German standards
- One machine is multi-purpose, can meet the needs of vertical conveying and cooling and drying at the same time.
- The equipment runs stably and can be continuously produced for a long time with easy maintenance.
- Customised elevators are available on request, with a high design conveying up to 10m and a large conveying capacity of 8t/h.
improve your bulk material handling processes
- Spiral vibrating elevator can effectively reduce the temperature of the material in the conveying process.
Vibratory elevators manufactured by Nicety Machinery are available with air or water cooling to reduce hot materials to 50°C or room temperature (30-35°C).
- Nicety Machinery produces vibratory spiral elevators with high height, high output and good quality.

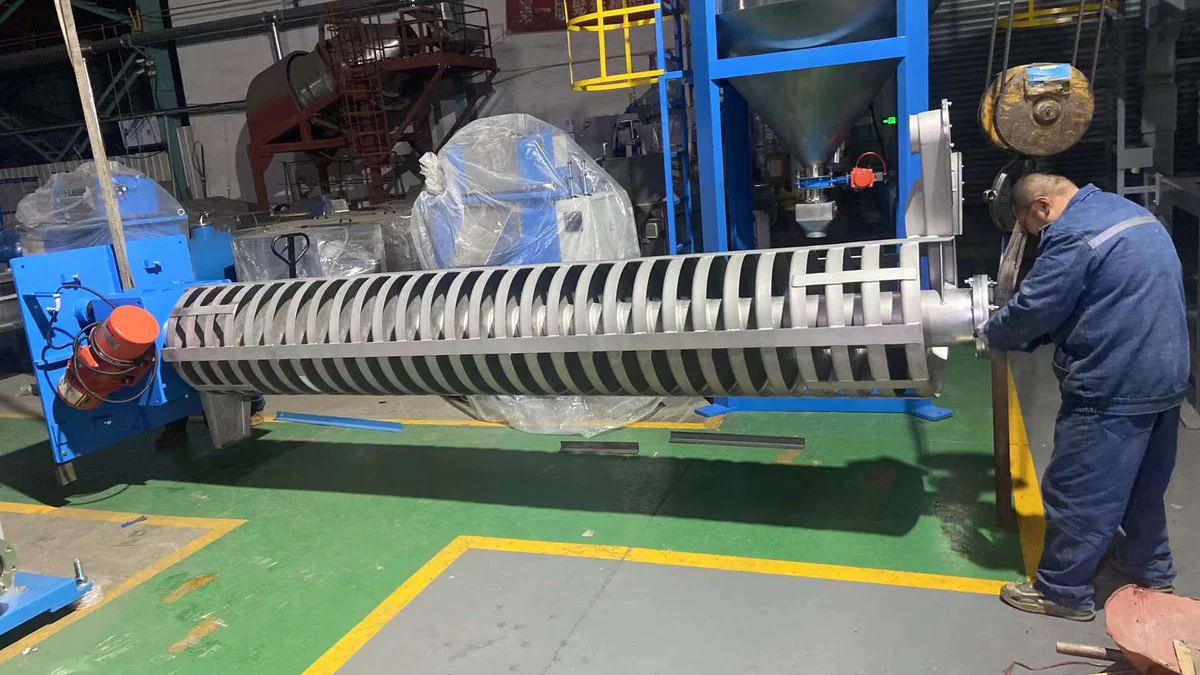

We have overcome the difficulties of casting and welding large fittings in one piece, with the highest design conveying up to 10 meters and a maximum output of 8 tonnes.
Table Of Contents For This Page
It is not easy to introduce all aspects of custom Vibrating Spiral Elevator, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.

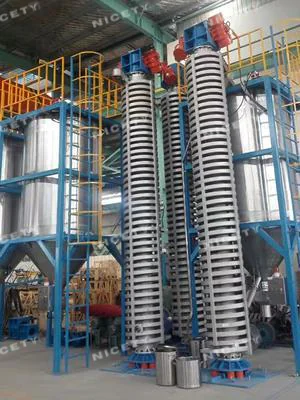

What Are Vibrating Spiral Elevators Used For?
In the plastic processing and modification industries, vibrating spiral elevators are essential for efficient material transport.
Using vibration, they move plastic raw materials, additives, and recycled materials smoothly, preventing blockages, damage, and accumulation. Compared to traditional conveyors, they ensure continuous, high-efficiency operation.
- Plastic pellet transport: Used for moving plastic pellets, ensuring smooth flow and preventing blockages.
- Plastic modifier material transport: Helps in evenly transporting additives and modifiers during the modification process.
- Cooling of plastic granules: Uses a water-cooling system to lower the temperature of heat-sensitive plastics, preventing overheating and deformation.
- Plastic waste transport: Used for recycling and reprocessing plastic waste, improving recycling efficiency.
- Transporting plastic powders: Effectively moves plastic powders, preventing clumping and ensuring consistent flow.
- Connection between plastic processing equipment and production lines: Serves as a key link in production lines, ensuring continuous material supply.
- Precise plastic product transport: Accurately controls material delivery, especially in additive and pigment mixing.
These applications highlight the versatility and efficiency of vibrating spiral elevators in plastic processing and modification, making them an ideal solution for improving production efficiency, reducing waste, and ensuring product quality.
Nicety Process & technical advantages Vibrating Spiral Elevator
Decades of manufacturing experience gained

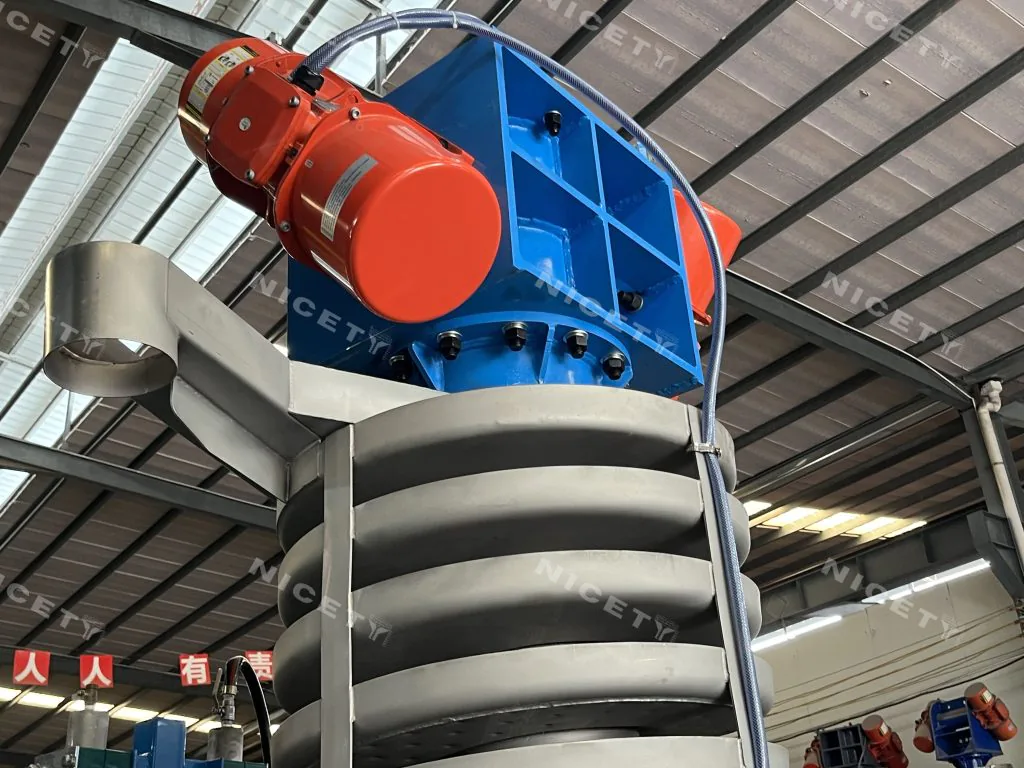

Optimized vibration frequency control
Mounting the motor at the top evenly distributes the vibration load across the system, reducing strain on the bottom and improving stability, while allowing precise control of vibration frequency for smooth, stable operation and adaptation to different materials.

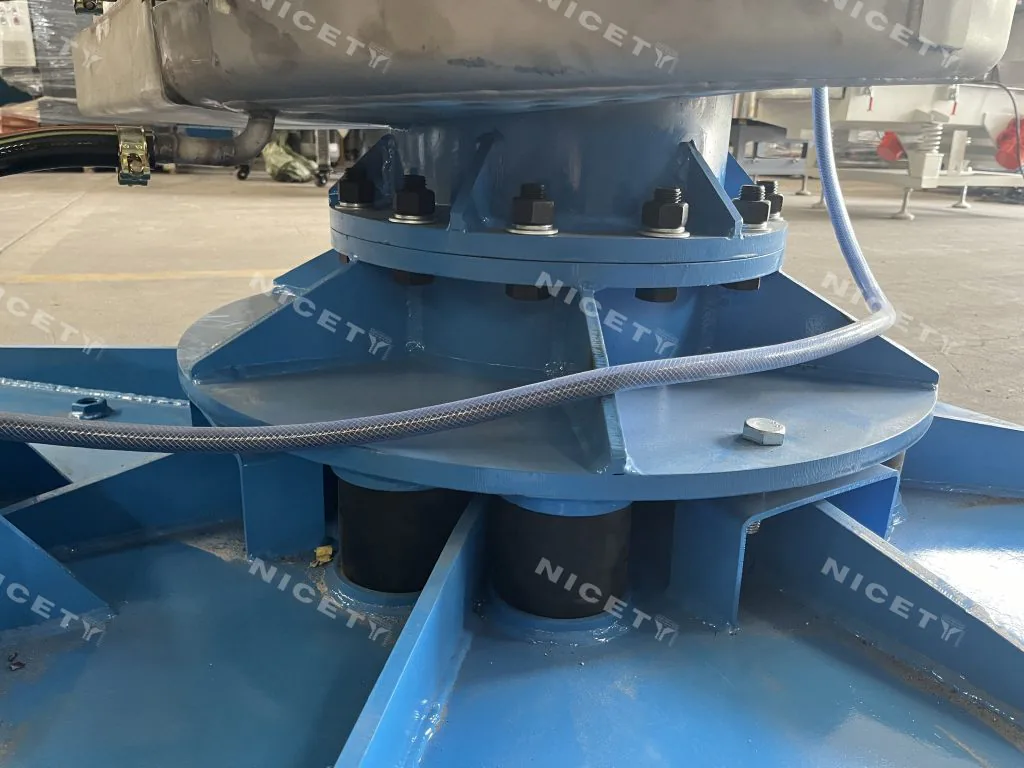

Structurally sound base design
The base ensures stable operation, reduces vibration impact, and extends equipment lifespan with durable, wear-resistant materials. Its shock-absorbing design lowers noise and vibration, while strong load-bearing capacity simplifies installation, maintenance, and reduces long-term costs.

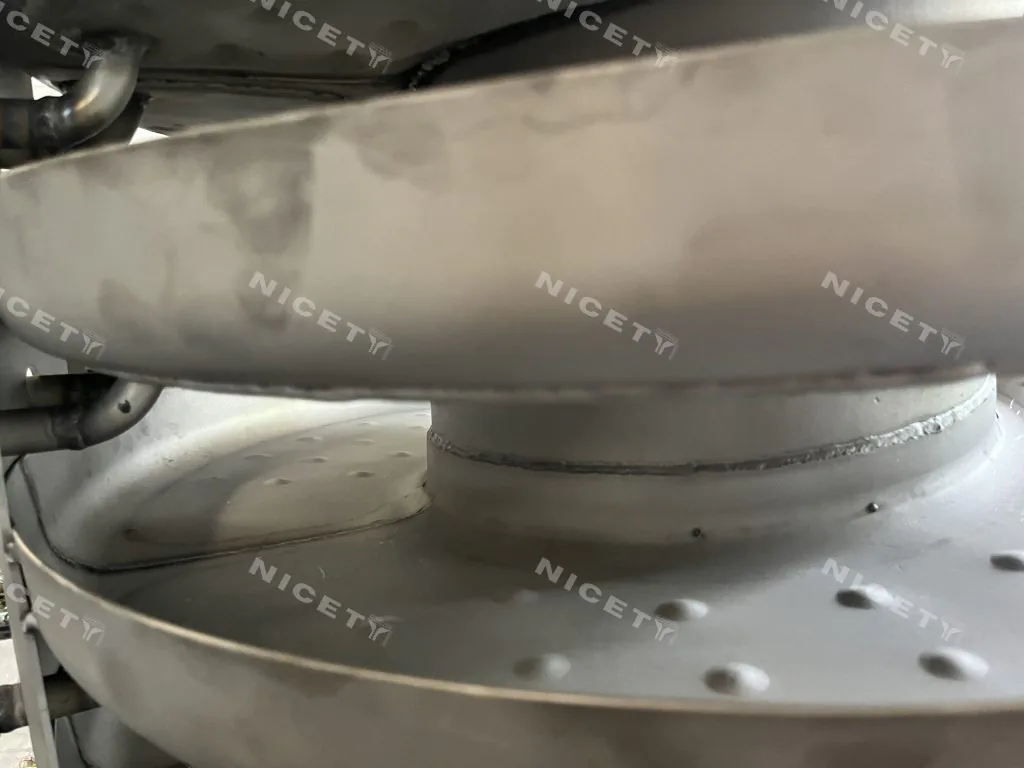

Key Advantages of Spiral Channel Design
Spiral channels ensure smooth material flow and prevent blockages by optimizing shape, material, and surface finish. With wear-resistant, corrosion-proof materials and easy maintenance design, they enhance efficiency and longevity. Tailored to different materials, the design improves performance in various environments, ensuring reliable, long-lasting operation.
Water-cooled cooling, efficient cooling
The water-cooled spiral vibrating elevator uses a cooling jacket to reduce material temperature, ensuring smooth flow and preventing overheating. It’s energy-efficient, compact, and quiet, ideal for space and noise-sensitive environments. This system extends equipment lifespan and offers precise temperature control for heat-sensitive materials.
We also specialize in the production of vibrating spiral elevators cooled by air-cooling.
NICETY vibrating spiral elevator Series
| Model | Delivery Quantity (t/h) | Conveying Hight (mm) | Spiral Groove Diameter (mm) | Resident Time (min) | Power (kw/3phase)) | Synthetic Amplitude (mm) |
|---|---|---|---|---|---|---|
|
NCCS-1250 |
0.3 |
1250 |
Ø300 |
2-3 |
2*0.1 |
-4 |
|
NCCS-2000 |
0.6 |
2000 |
Ø350 (400) |
3-4 |
2*0.2 |
-4 |
|
NCCS-3500 |
3 |
3500 |
Ø500(610) |
4-5 |
2*0.75 |
-4 |
|
NCCS-4500 |
4 |
4500 |
Ø500(610) |
5-6 |
2*1.5 |
-4 |
|
NCCS-6000 |
2 |
6000 |
Ø650(800) |
6-7 |
2*2.2 |
-4 |
|
NCCS-8500 |
5 |
8500 |
Ø1000 |
7-9 |
2-2.9 |
-4 |
|
NCCS-5000 |
8 |
5000 |
Ø1300 |
6-7 |
2*5 |
-4 |
NICETY MACHINERY CO., LTD is a manufacturer and supplier of vibrating spiral elevator with over 10 years of experience. Our elevators can efficiently convey and effectively cool all types of plastic raw materials for your centralized feeding system needs.
Tell Us What's your material type And We'll tailor-make solutions for you
vibrating spiral elevator Working Video Cases
Ø1000mm Water-Cooling vibrating spiral elevator
- Output Capacity: 2500kg/hr-3000kg/hr
- Liftable Height: 3 meters
- Lifted Materials: Calcium oxide/ Masterbatch/ PVC granules, etc.
- Cooling Method: Water- Cooling
- Feeding Temperature: 80 ℃
- Discharge Temperature: 35 ℃
NICETY: Teaching you to be an expert in vibrating spiral conveyor
Our understanding of crusher comes from decades of production experience

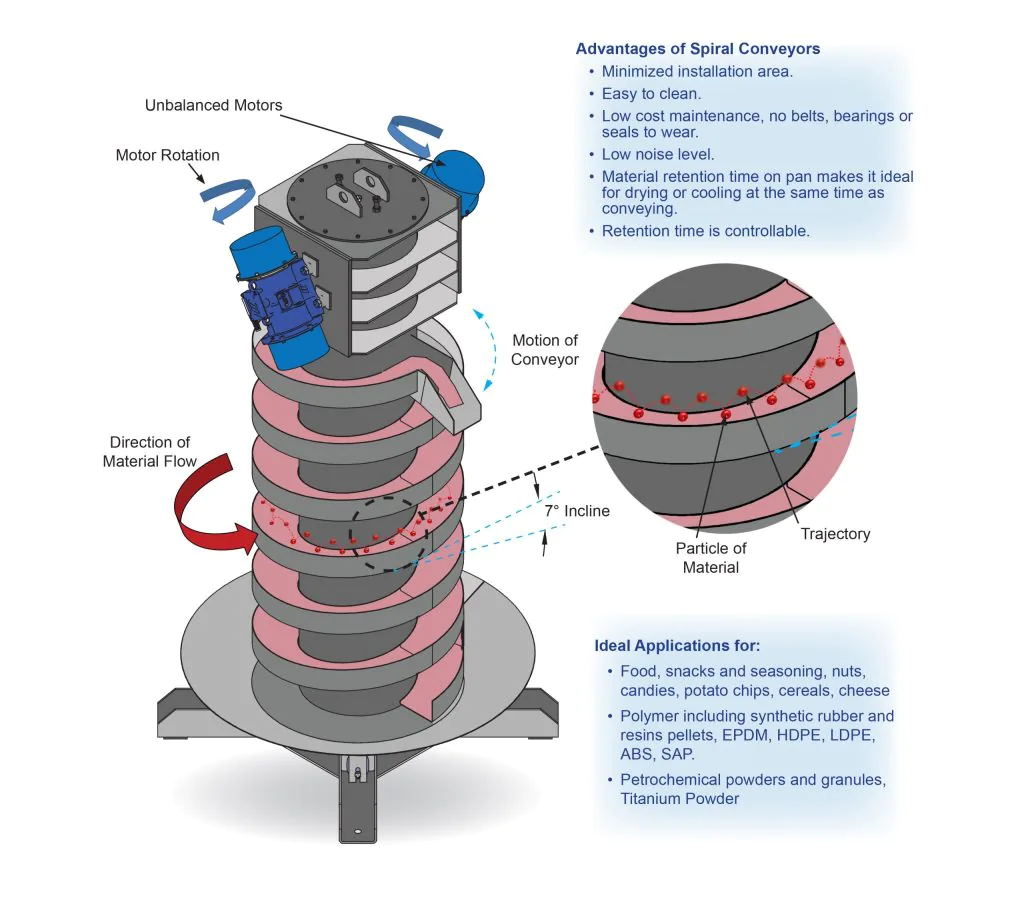

How Vibrating Spiral Elevator works?
What parameters should you focus on?

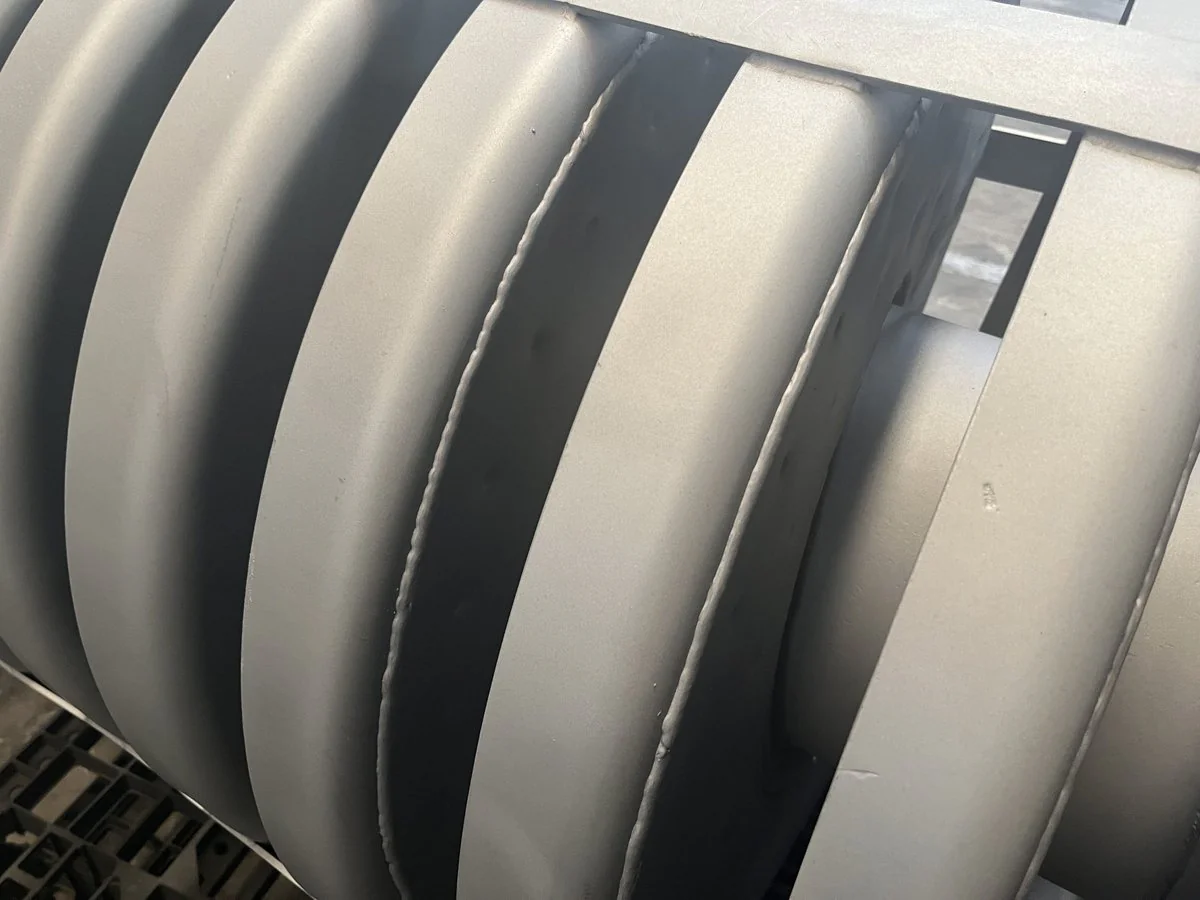

What Are the Features of the Welding and Sandwich Layer Processes?
What is the Water-Cooling Mode?
What is the Air-Cooling Mode?
Air cooling in a vibrating spiral elevator uses fans to blow air over the equipment, dissipating heat and preventing overheating. It’s a simple, cost-effective solution for maintaining optimal temperature and ensuring smooth operation.
Hydraulic cap opening makes blades changing safer and more efficient
Want to improve or increase the output of a centralized feeding system in your plastics processing plant?
Our website includes PDF files of frequently asked questions related to plastic prcessing, compounding, re-pelletizing machines andcentralized feeding system and solutions to help you quickly find the assistance you need.
Vibrating Spiral Elevator Related Equipments
We also produce other equipment related to the use of the vibrating spiral elevator machine, where you can make a one-stop purchase!
The FAQs About vibrating spiral elevator machine
What materials can be transported using a vibrating spiral elevator?
It can transport a wide range of materials, including powders, pellets, grains, and other bulk solids, as well as heat-sensitive or viscous substances, depending on the specific design.
How do vibrations affect material movement?
Vibrations help loosen and push the material along the spiral path, preventing clogging, ensuring smooth flow, and allowing for consistent, uniform transport.
How much plastic waste can the crusher handle per hour?
The capacity of the plastic crusher varies depending on the model, but it can typically handle several hundred to a few thousand kilograms of plastic waste per hour.
Can the vibrating spiral elevator handle large volumes of material?
Yes, the system is designed to handle high throughput, with adjustable specifications to meet different volume requirements in industrial applications.
What power supply is needed for the vibrating spiral elevator?
It typically requires a 3-phase power supply, with motor power ranging from 0.5 kW to several kW depending on the model and material requirements.
How do I maintain the vibrating spiral elevator?
Regular maintenance involves checking the vibration system, ensuring the spiral channel is clean, lubricating moving parts, and inspecting for wear or damage.
What is the ideal temperature range for the materials?
The elevator is designed to handle a wide range of temperatures. If materials are high-temperature sensitive, water-cooling systems can be added to prevent overheating.
How does the system handle different material sizes?
The vibrating spiral elevator can be customized with different spiral diameters, angles, and frequency settings to accommodate a variety of material sizes, ensuring efficient transport.
Can the vibrating spiral elevator be used for plastic granules or pellets?
Yes, it is commonly used in plastic granule and pellet production and modification processes, efficiently moving materials without damage or degradation.
What happens if the elevator is overloaded?
Overloading the system can cause vibration issues, material blockages, or damage to components. Always ensure the system is operating within its specified capacity.
What warranty is provided with the vibrating spiral elevator?
What spare parts might be needed for the vibrating spiral elevator?
If your question is not listed, please email us right now.
NICETY: High-Quality Plastic Processing Machine Manufacturer
Our plastic machines are made of top-quality motors, electric parts and metal parts to ensure maximum efficiency and durability.
Reliable Plastic Machine Manufacturer in China
Partner with us for high-quality plastic processing equipment and unbeatable after-sales support！
- Certified by CE, ISO UL, CSA certification
- High quality, cost effective, low failure rate plastic machines
- Professional after-sales service with quick response to your needs
At Nicety, we take pride in our global reach with customers in various countries, including the Middle East, Europe, North America, and South America. Our successful delivery solutions have earned us positive feedback from satisfied clients worldwide.

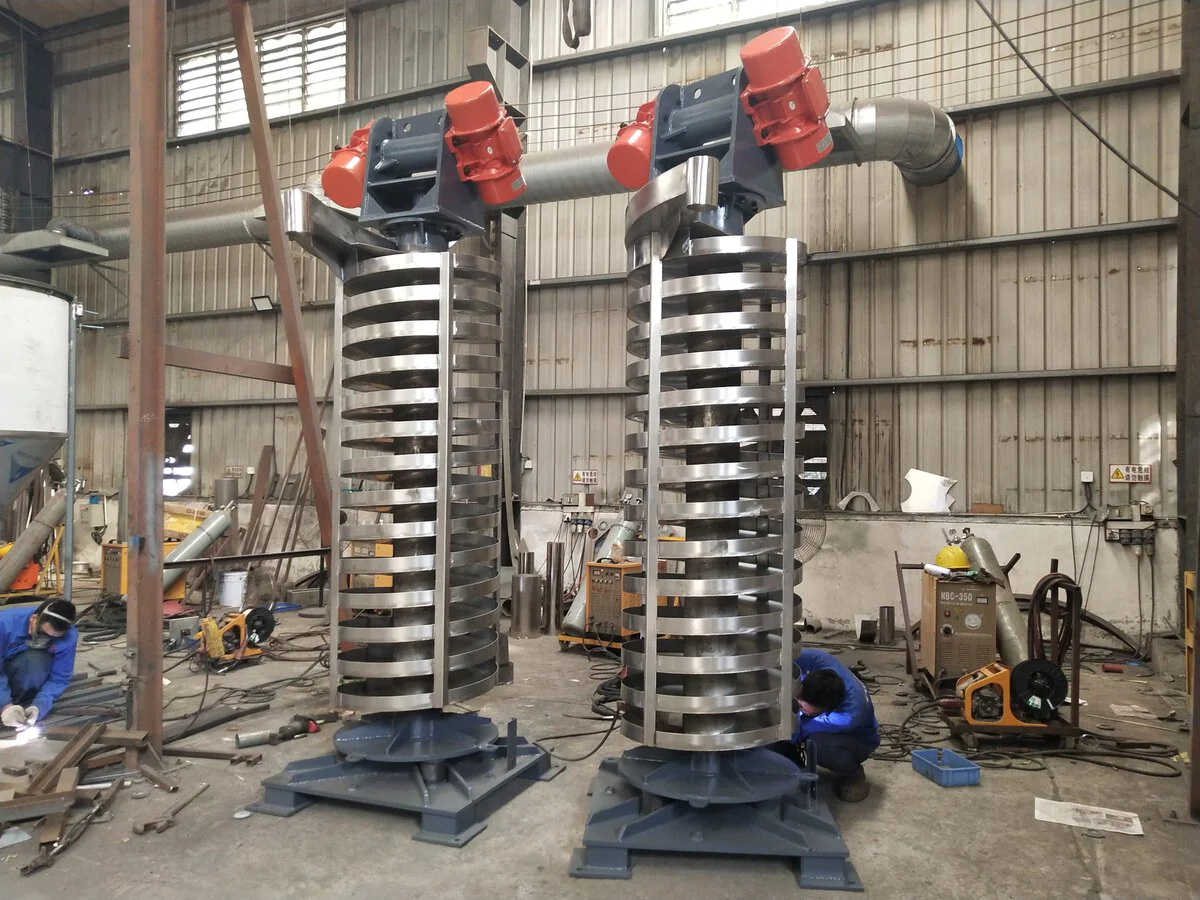

What is spiral elevator
Spiral elevator also called vibrating spiral elevator. Is a type of vertical transportation system that uses vibrational force to move bulk solids or materials up and down a spiral-shaped shaft. With a compact footprint, transportation with continuity and other characteristics.
The operation of spiral elevators are similar to that of a traditional spiral conveyor, but the use of vibrational force allows it to handle a wider range of goods and materials and operate in a more compact space.
This makes it a good choice for buildings with limited space or complex layouts, and is particularly useful in the chemical and plastic industries, where the safe and efficient movement of goods is critical.
How the sprial elevators works?
The elevator consists of a platform or cabin that is attached to a central column, and moves along a helical or spiral track.
The platform or cabin of the vibrating spiral elevator is suspended by a series of cables or other mechanical devices, vibration forces generated by the operation of two unbalanced motors, which allow it to move up and down the spiral track.
The movement of the platform is controlled by a series of motors and gears, which generate vibrational force to move the materials on the platform continuous product flow up and down the spiral track.
What are the application industries of spiral elevators?
Spiral elevators are commonly used in many industries, including mining, chemical and plastic industries., where they are used to transport materials and goods between different levels of a height or floor.
The chemical and plastics industries are known for their large, complex facilities that often require the movement of goods and materials between different floors and heights.
Traditional elevators can be inefficient and cumbersome in these environments, as they require a dedicated shaft and can only move in a straight line.
In contrast, vibratory spiral elevators use spiral shafts that can be moved in more compact spaces, making them better suited to the unique layouts of chemical and plastics facilities, use minimal floor space to save more floor space.
Cooling function of spiral elevator
Some industries will require spiral elevators to transport materials with temperature, such as some special plastic pellets.
Vibratory spiral elevators can be designed with a cooling function so that the material can be transported and lifted at a lower temperature.

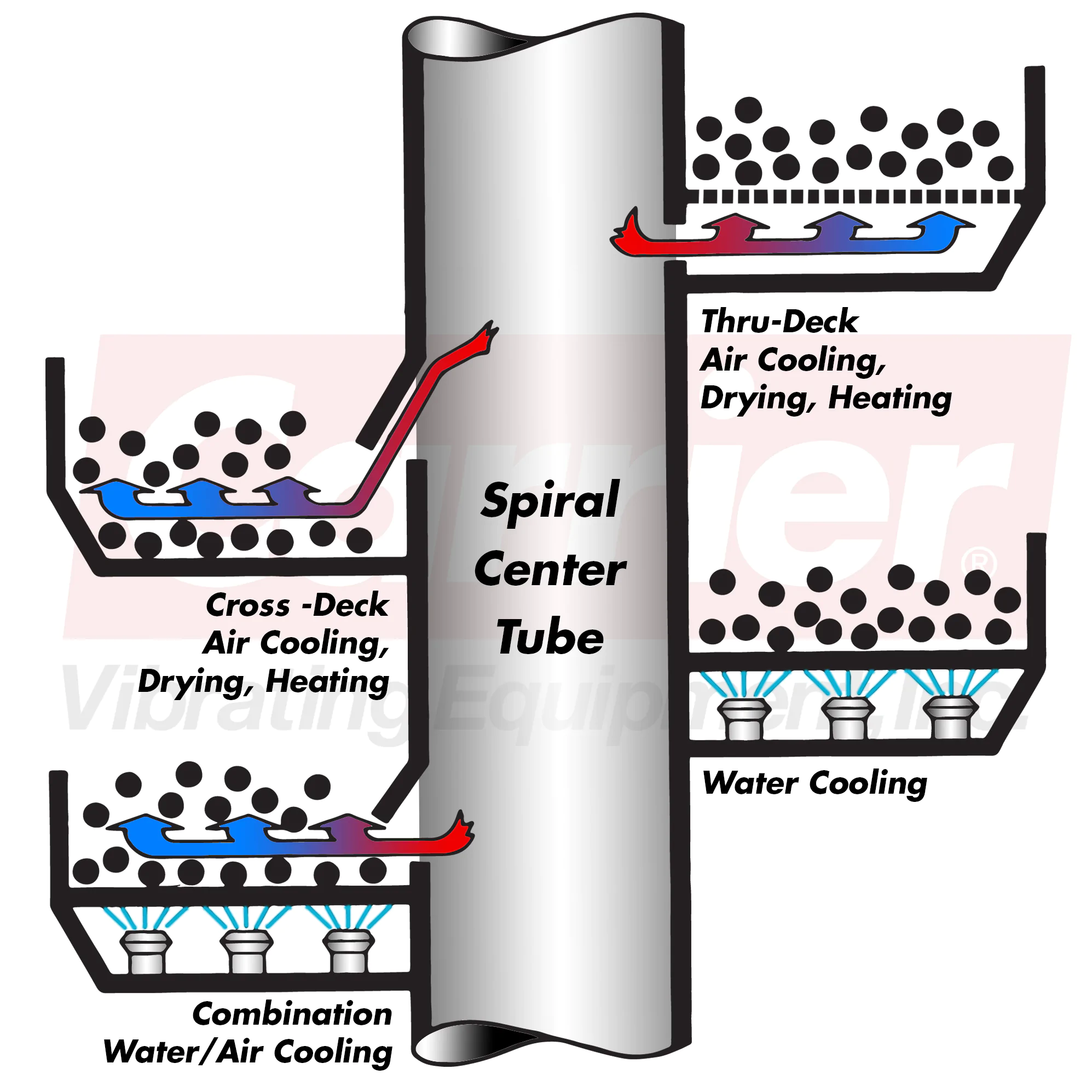

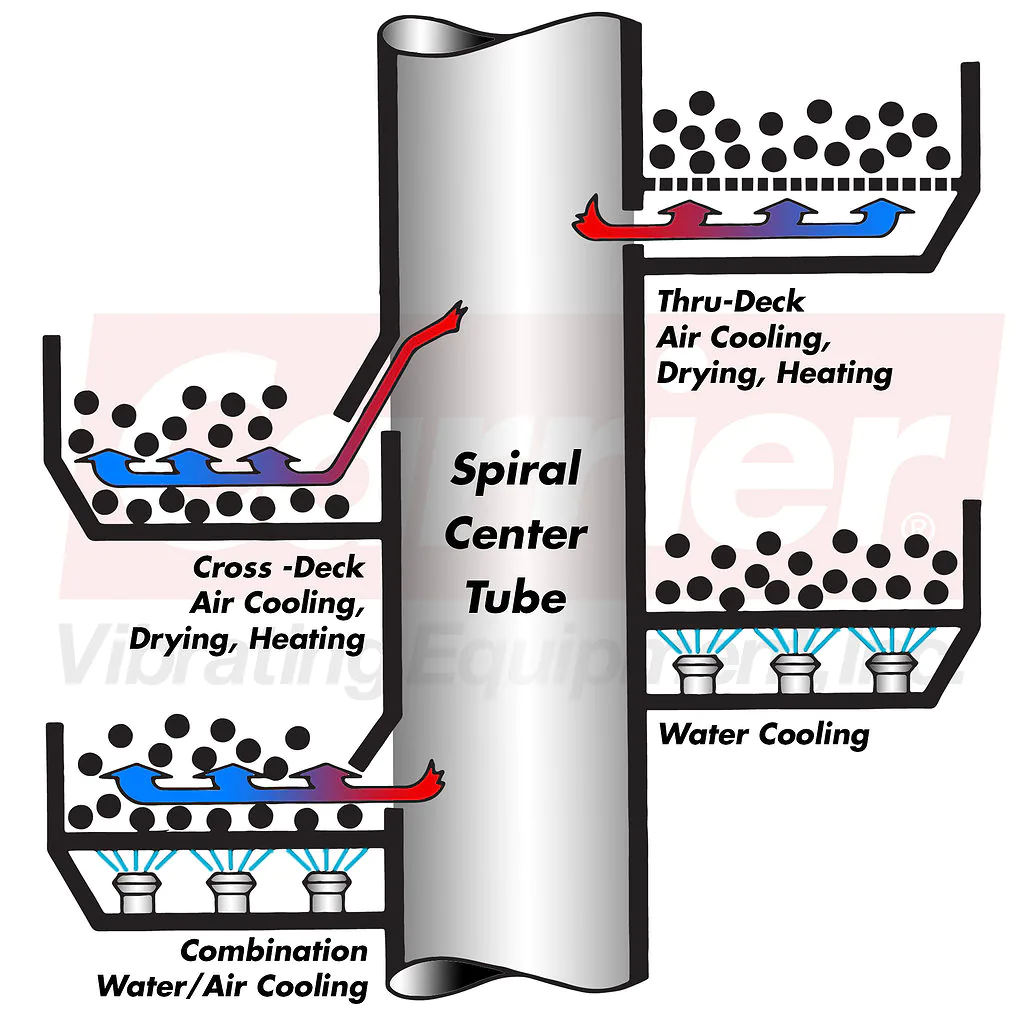

Vibrating spiral elevator usually has three cooling methods to reduce the temperature of the transported material: air-cooling, water-cooling and air water combination coling.
Air-cooled:
The spiral central tube has several air outlets corresponding to the spiral structure platform on each level.
In the process of material being lifted, cold air is constantly blowing on the material to achieve the purpose of cooling.

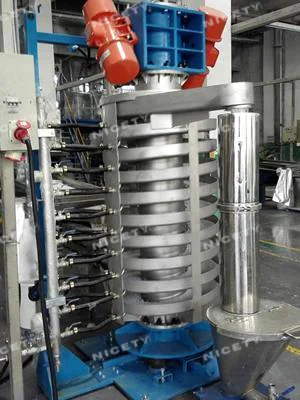

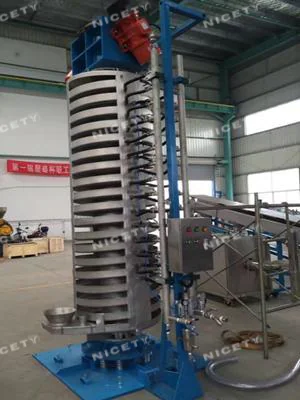

Water-cooling

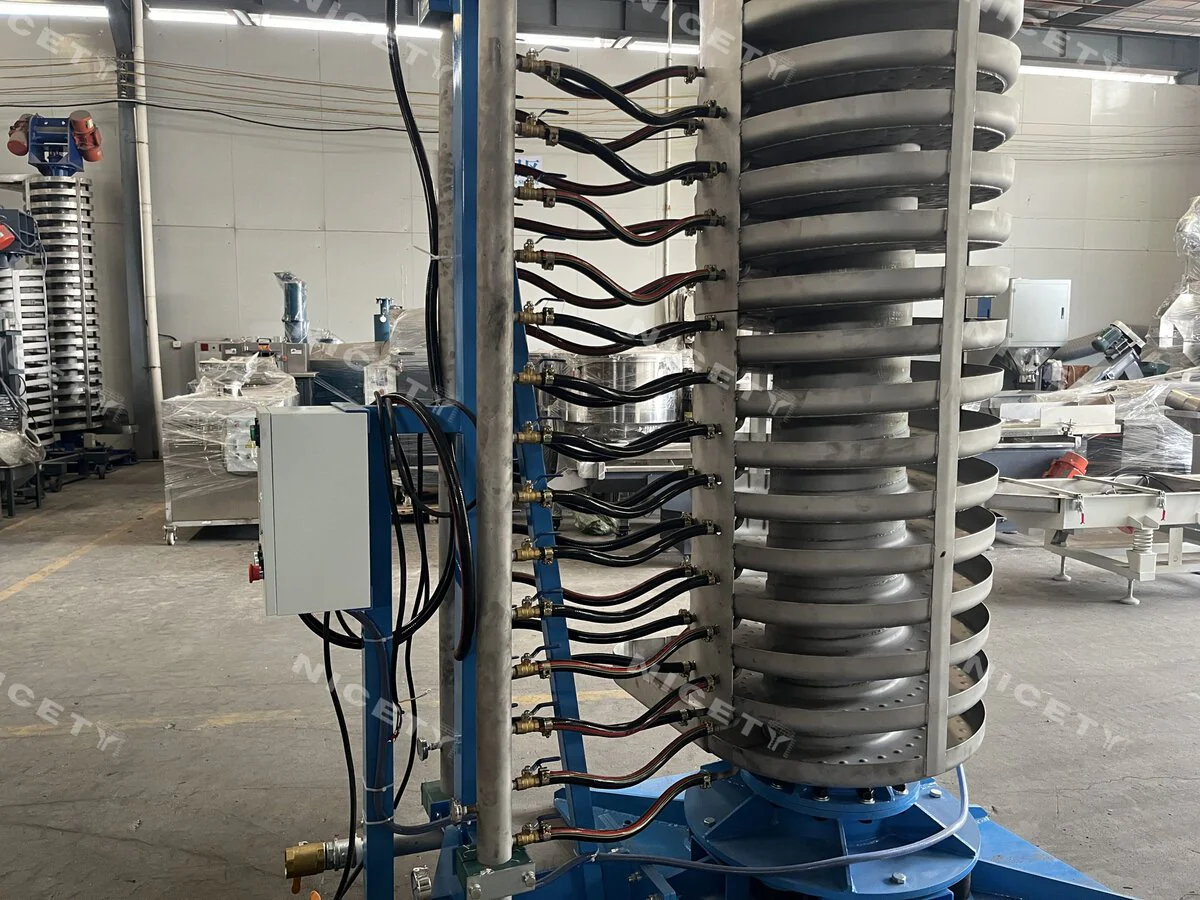

Vibrating spiral elevator with water-cooled cooling function of each layer of the spiral platform is double belt and hollow.
And cold water through the hollow and closed gap in the spiral structure constantly circulating, so that each layer of the spiral transport layer is like a cool tray, constantly absorbing the heat emitted by the material in the vibration lifting process to reduce their own temperature.
Air water combination coling
As the name suggests, the air water combination coling. cooling method is a combination of these two cooling methods. It has a better cooling effect.
What the difference between vibrating spiral elevator and spiral conveyor
Spiral elevators and spiral conveyors are both types of compact footprint mechanical devices that are used to move and transport products vertically between different levels.
However, there are some key differences between the two.
One of the main differences between a vibrating spiral elevator and a spiral conveyor is the way in which they move materials.
Spiral elevators uses vibration to move materials upward or downward, while a spiral conveyor uses a continuous rotating spiral belt to convey materials horizontally or at an incline.
Another key difference between the two is the type of materials they are designed to handle.
Spiral elevators are typically designed to bulk solids, tiny size materials such as plastic pellets and chemical powders
While spiral conveyors are typically used to convey lighter materials such as packages, boxes, and bags.
Additionally, spiral elevators are typically used in industrial settings, such as plastic pellet factory, chemical factory, pharmaceutical factory, while spiral conveyors are more commonly found in retail and distribution centers.
Top 5 spiral elevator manufacturers:
Nicety Machinery Co., Ltd
Type of Business: Manufacturing
Location (Headquarters): China
Spiral elevator website: https://nicetymachine.com/spiral-elevator/
NICETY was established in China in 2005 and has since become a global manufacturer and supplier of spiral elevator machines.
If you are looking for a professional manufacturer of the spiral elevator, you can contact this company without thinking twice and they will support you.
JVI Vibratory Equipment
Type of Business: Manufacturing
Location (Headquarters): Canada
Website: https://www.jvivibratoryequipment.com/spiral-elevators/
JVI Vibratory Equipment is an innovative designer and manufacturer of vibrating equipment used in the processing of bulk materials.
Carrier Vibrating Equipment, Inc.
Type of Business: Manufacturing
Location (Headquarters): USA
Website: https://www.jvivibratoryequipment.com/spiral-elevators/
Process applications vary from industry to industry, each facing a unique set of environmental and engineering challenges. That said, Carrier’s success in applying vibration technology in a variety of environments has always been a constant.
AViTEQ Vibrationstechnik GmbH
Type of Business: Manufacturing
Location (Headquarters): Germany
Website: https://www.aviteq.com/
Conveying capacity, bulk density, particle size and product moisture, or the necessary operations of unloading, conveying, dosing, screening and cooling – each requires a specific design. Off-the-shelf solutions rarely provide the maximum optimization that you need to differentiate yourself from the competition.
GEA Group
ype of Business: Manufacturing
Location (Headquarters): Germany
Website: https://www.gea.com/en/index.jsp
GEA Scan-Vibro screw lifters are designed for use in a wide range of applications in the food, feed, chemical technology, and pharmaceutical industries.
