Vibratory Spiral Elevator

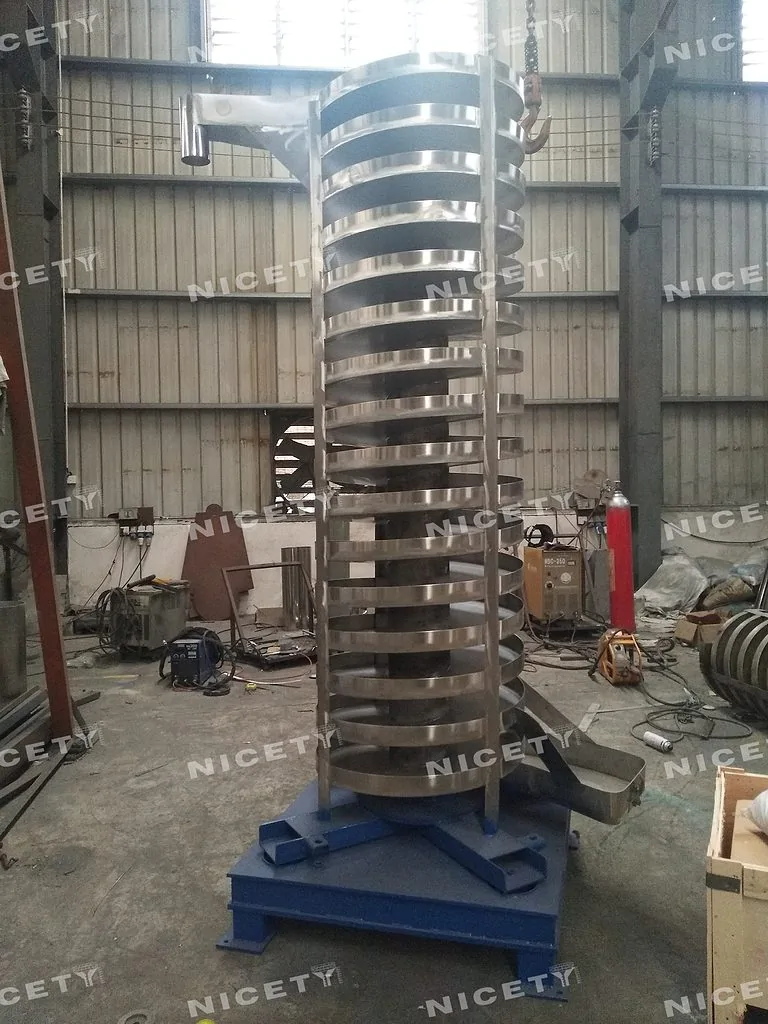

What Is Vibratory Spiral Elevator?

The vibratory spiral elevator is also called vibrating spiral elevator. Is a device that transfers material from bottom to top along a spiral upward track by vibration.

The vibratory spiral elevator has two motors on top that vibrate at opposite frequencies. When the motors are running simultaneously, they create a high-frequency upward vibrating thrust that propels the solid granular material along the spiral track from the bottom to the top.

video of vibratory spiral elevator
How a vibratory spiral elevator works

What Materials Can A Vibrating Spiral Elevator Be Used To Transfer?

The vibratory spiral elevator can be used to transfer a variety of bulk solids materials, including:

-Plastic Industry: Plastic granular, masterbatch granules, calcium carbonate granules, recycled plastic granules, etc.

-Food Industry materials such as corn, rice, wheat, Cocoa beans, etc

-Granular materials such as corn, rice, wheat, beans, etc.

-Powdered materials such as flour, sugar, spices, etc.

-Small objects such as screws, nails, washers, etc

Vibrating Spiral Elevator Is One Type Of Spiral Elevator

. There are also other types of spiral elevators that use different methods to move materials up the spiral track, such as:

-Bucket-type spiral elevator

-Chain-type spiral elevator

-Pneumatic-type spiral elevator.

The vibratory spiral elevator is a versatile and efficient way to transfer a variety of bulk solid material from bottom to top.

It is suitable for use in a wide range of industries, including the food industry, plastic industry, and granular material industry.

What Are The Advantages Of A Vibratory Spiral Elevator Compared With A Bucket Elevator?

There are several advantages of a vibratory spiral elevator compared with a bucket elevator, including:

-The vibratory spiral elevator can transfer materials at a higher rate than a bucket elevator.

-The vibratory spiral elevator is less likely to damage the material being transferred than a bucket elevator.

-The vibratory spiral elevator can transfer materials of all shapes and sizes, whereas a bucket elevator can only transfer materials that are small enough to fit into the bucket.

-The vibratory spiral elevator is more versatile than a bucket elevator and can be used for a variety of applications and saving space

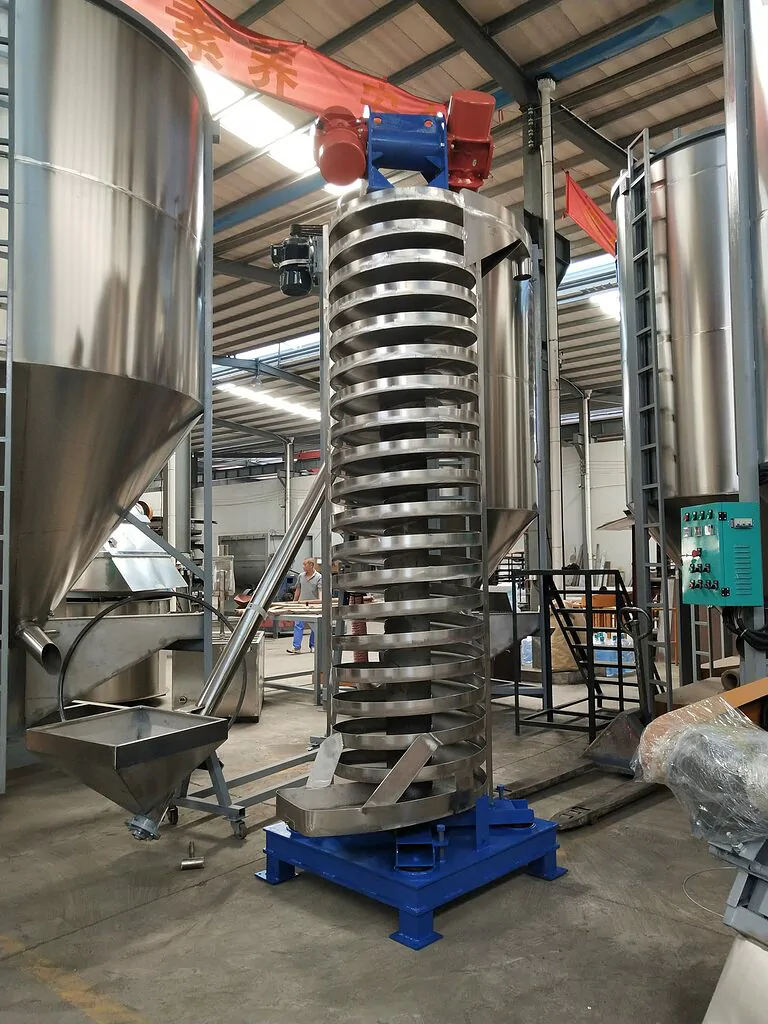

What Are The Components Of A Vibratory Spiral Elevator?

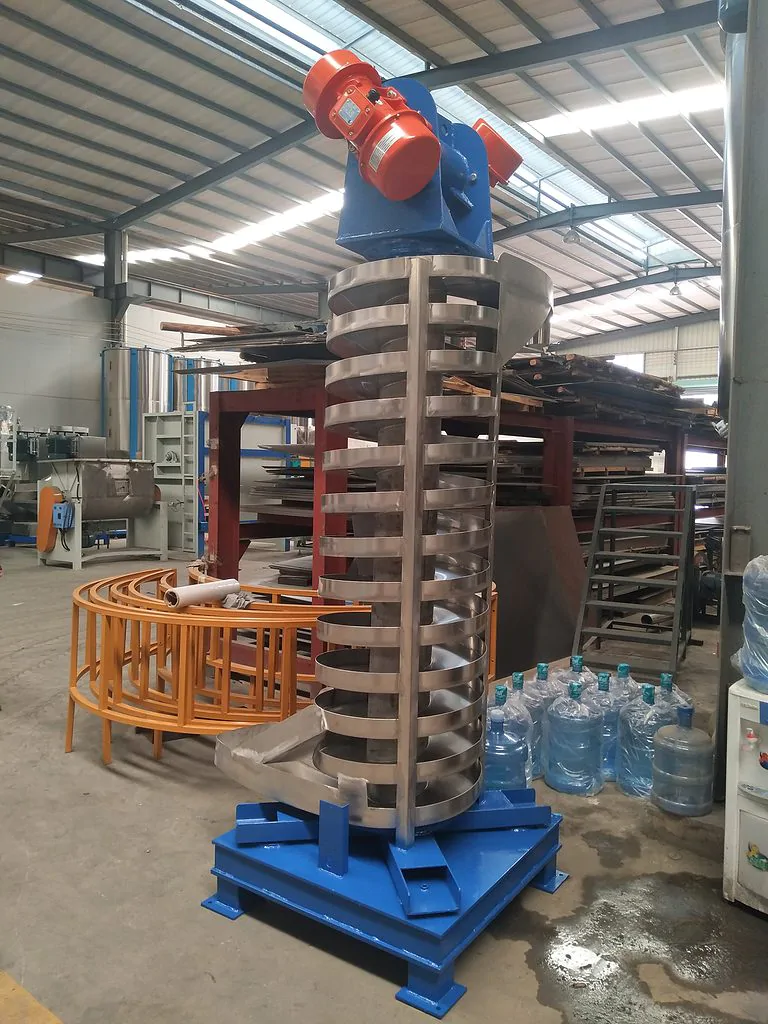

spiral diameter

The main components of a vibratory spiral elevator include:

-A spiral track where the material is transferred along.

-Two vibrating motors create the upward thrust to propel the material along the spiral track.

-A control panel that is used to operate the elevator.

-Shock-absorbing base for protecting the ground and from damage caused by vibration to the building.

-Air-cooled device or water-cooled device, for cooling the temperature of the particles during transport.

-Dust Cover(Optional) It is commonly used for conveying food materials or pharmaceuticals and other products with high environmental requirements.

Top 5 Vibratory Spiral Elevator Manufacturer:

  • GAE

GEA is one of the world’s largest suppliers of systems and components for the food, beverage, and pharmaceutical industries.

Founded in 1881, this international technology group specializes in machinery and equipment, as well as advanced process technology, components, and comprehensive services.

If your plant is engineered for the food or pharmaceutical processing industry, GAE can use its many years of experience in the food and pharmaceutical industry to provide a good solution and cost-effective equipment for your vibratory spiral elevator.

  • Nicety Machinery Co., Ltd

Nicety is a leading manufacturer of plastic processing equipment industry and has been in business since 2005. The company is based in China and serves customers all over the world.

Since 2005, Nicety has grown from a small workshop to a large team with 4,000 square meters, several engineering engineers, dozens of international business sales, and hundreds of workers.

Nicety Machinery Co., Ltd’s problem-solving abilities are based on experience gained from implementation and application in hundreds of plant companies around the world.

Nicety offers a wide range of vibratory spiral elevator models to meet the needs of different customers. In addition, their main equipment includes industrial large-volume silo mixers, horizontal mixers, shredders, shredders, plastic recycling, washing lines, and plastic extruder granulation lines.

  • JVI

Headquartered in Houston, Texas, JVI’s advanced vibratory feeders and material handling equipment provide low-maintenance, precision feeding solutions for a wide range of dry bulk material processing applications.

JVI’s dedicated in-house engineering team combines years of proven design experience, rigorous manufacturing procedures, and extensive process knowledge into a high-quality product that meets the exact requirements of the application and specifications.


Drive components and vibratory feeder equipment based on vibratory feeder technology form the core range of the company that was renamed from AEG Vibration Technology GmbH in 1998 to AViTEQ Vibration Technology GmbH in 1939.

In addition, they provide comprehensive global service for AViTEQ and AEG systems already in operation. They supply high-quality basic components for vibratory feeder technology applications such as unbalanced motors, magnetic vibrators, appropriate controller systems, and other drive systems.

  • Carrier

Founded in 1950, Carrier Vibrating Equipment is internationally known for its outstanding innovations in the field of vibration technology.

Carrier specializes in the design and manufacture of vibratory conveyors, feeders, screeners, fluidized bed dryers and coolers, Tornesh dryers, flash dryers, media slurry dryers, screw jacks, dump dryers, and more.

These precision machines are designed to efficiently and reliably screen, separate, dry, cool, mix, and perform other processing functions to meet and exceed the demanding specifications of their customers.
